Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | P-MNPS |
| Country of Manufacture | Italy |
| Height | 0.25 |
| Length | 3.0599999999999996 |
| Width | 0.25 |
| Weight | 0.06 |
| Side 1 Size | 1/8 (-02) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1/8-27 (-02) |
| Side 2 Type | NPTF |

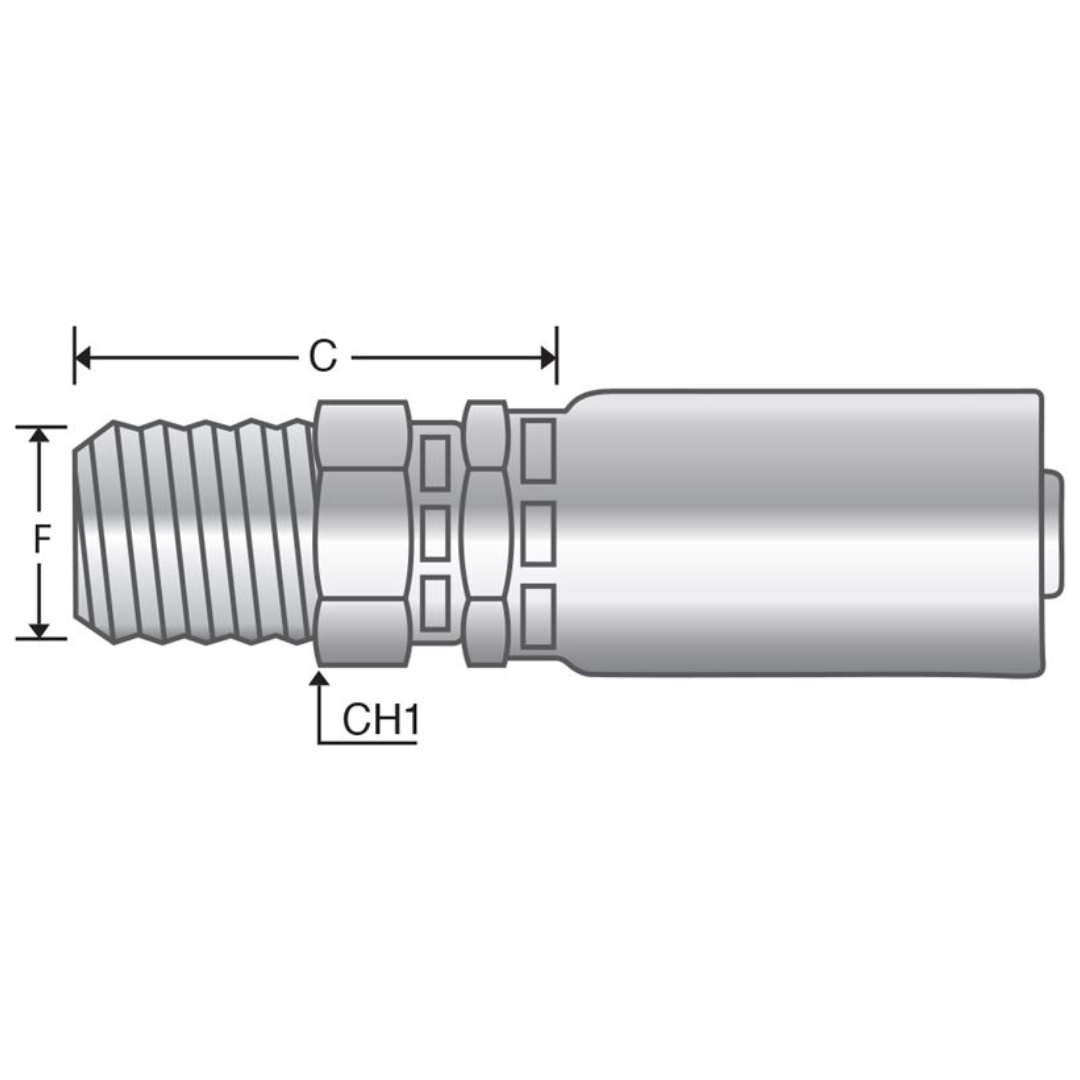

Description
The Alfagomma One-Piece AlfaCrimp P-MNPS Fitting is a straight, carbon steel fitting designed to connect Piranhaflex PF321TC hoses to an NPTF (National Pipe Tapered Fuel) male swivel connection with a 60° seat. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, streamlining the process. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. The male swivel design allows for flexibility in positioning, making it ideal for fluid power systems where a secure, durable, and leak-resistant connection is required, especially in high-pressure environments. This fitting is specifically designed for Piranhaflex PF321TC hoses, ensuring compatibility and reliability in industrial and hydraulic applications.
