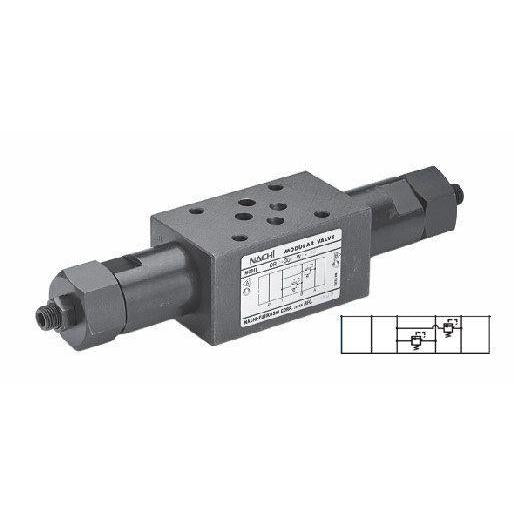

ORD-G03-W1-J50 : Nachi D05 Relief Valve, Direct-Acting, 7.9 GPM, 3625psi, Allen Key Adjust, Relieving from A to T and B to T, 115 to 1000psi Range
Roll over image to zoom in Click on image to zoom
ORD-G03-W1-J50 : Nachi D05 Relief Valve, Direct-Acting, 7.9 GPM, 3625psi, Allen Key Adjust, Relieving from A to T and B to T, 115 to 1000psi Range

ORD-G03-W1-J50 : Nachi D05 Relief Valve, Direct-Acting, 7.9 GPM, 3625psi, Allen Key Adjust, Relieving from A to T and B to T, 115 to 1000psi Range

Save $294.01
NachiSKU: ORD-G03-W1-J50
4-6 Weeks
0
Price:
$978.99 $1,273.00

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Stock 0
Factory Location Greenwood, Indiana
Valve Operation Direct-Acting
Valve Type Modular (Stacking) Valve
Valve Interface D05 (NG10)
Flow Rating 7.9
Pressure Rating 3625
Pressure Range 115 to 1000psi
Country of Manufacture Japan
Height 2.17
Length 14.17
Width 2.76

Description

The Nachi ORD is a modular relief valve for maximum pressure control of a hydraulic circuit. The direct-operating style relief allows for very quick flow by opening up more quickly, allowing for a faster reaction of the valve. These valves are designed for stacking between a manifold and a D03 directional valve.
