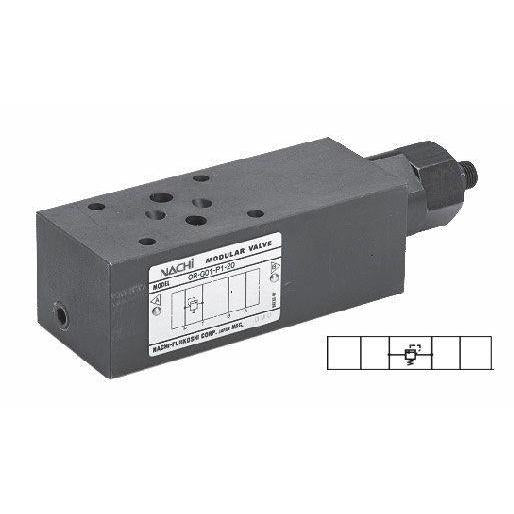

OR-G03-B3-E50 : Nachi D05 Relief Valve, Balanced, 21 GPM, 3600psi, Allen Key Adjust, Relieving from B to T, 500 to 3600psi Range
Roll over image to zoom in Click on image to zoom
OR-G03-B3-E50 : Nachi D05 Relief Valve, Balanced, 21 GPM, 3600psi, Allen Key Adjust, Relieving from B to T, 500 to 3600psi Range

OR-G03-B3-E50 : Nachi D05 Relief Valve, Balanced, 21 GPM, 3600psi, Allen Key Adjust, Relieving from B to T, 500 to 3600psi Range

Save $10.01
NachiSKU: OR-G03-B3-E50
4-6 Weeks
Price:
$433.99 $444.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Greenwood, Indiana
Valve Operation Direct-Acting
Valve Type Modular (Stacking) Valve
Valve Interface D05 (NG10)
Flow Rating 21
Pressure Rating 3600
Pressure Range 500 to 3600psi
Country of Manufacture Japan
Height 2.17
Length 12.76
Width 2.76

Description

The Nachi OR is a modular relief valve for maximum pressure control of a hydraulic circuit. The balanced style relief allows for slightly delayed flow by opening up more slowly, allowing for a smoother transition. These valves are designed for stacking between a manifold and a D03 directional valve.
