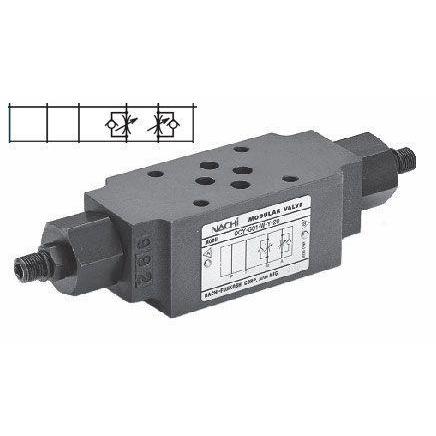

OCY-G03-W-Y-J51 : Nachi D05 Flow Control, D05 (NG10), 100GPM, 3625psi, Non-Compensated, Hand Screw, Meter Out Control, Throttle Line A&B
Roll over image to zoom in Click on image to zoom
OCY-G03-W-Y-J51 : Nachi D05 Flow Control, D05 (NG10), 100GPM, 3625psi, Non-Compensated, Hand Screw, Meter Out Control, Throttle Line A&B

OCY-G03-W-Y-J51 : Nachi D05 Flow Control, D05 (NG10), 100GPM, 3625psi, Non-Compensated, Hand Screw, Meter Out Control, Throttle Line A&B

Save $69.01
NachiSKU: OCY-G03-W-Y-J51
1-3 Days
109
Price:
$233.99 $303.00

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 109
Factory Location Greenwood, Indiana
Valve Type Modular (Stacking) Valve, Meter Out
Adjustment Type Hand Screw
Valve Interface D05 (NG10)
Flow Rating 100
Pressure Rating 3625
Height 2.76
Length 2.17
Width 8.9
Weight 2.8

Description

The Nachi Modular flow control valve is used to control actuator speed, and for other applications where flow control in a specific line may be required. A wide range of models are available for control in various ports. These valves are not pressure or temperature compensated.
