Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 1-3 Days |
Factory Stock | 4 |
Factory Location | Greenwood, Indiana |
Valve Type | Modular (Stacking) Valve, Meter Out |
Adjustment Type | Hand Screw |
Valve Interface | D05 (NG10) |
Flow Rating | 10.5 |
Pressure Rating | 3625 |
Description

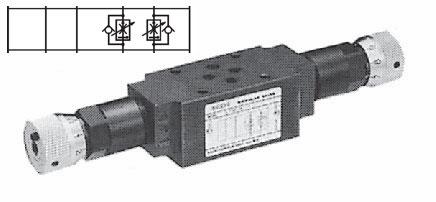

Nachi D05 Modular Flow Control, D05 (NG10), 15.8GPM, 3625psi, Compensated, Hand Screw, Meter Out Control, Fine Control, Flow Throttled in Lines A & B.
The Nachi Modular flow control valve is used to control actuator speed, and for other applications where flow control in a specific line may be required. A wide range of models are available for control in various ports. A pressure compensation mechanism ensures that the control flow rate does not change, even when there is pressure or temperature fluctuation.
