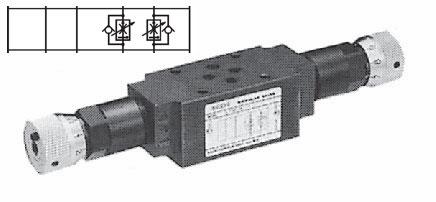

OCF-G01-W40-Y-30 : Nachi D03 Flow Control, D03 (NG6), 10.5GPM, 3625psi, Compensated, Hand Screw, Fine Meter Out Control, Throttle Line A&B
Roll over image to zoom in Click on image to zoom
OCF-G01-W40-Y-30 : Nachi D03 Flow Control, D03 (NG6), 10.5GPM, 3625psi, Compensated, Hand Screw, Fine Meter Out Control, Throttle Line A&B

OCF-G01-W40-Y-30 : Nachi D03 Flow Control, D03 (NG6), 10.5GPM, 3625psi, Compensated, Hand Screw, Fine Meter Out Control, Throttle Line A&B

Save $214.01
NachiSKU: OCF-G01-W40-Y-30
1-3 Days
10
Price:
$792.99 $1,007.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 10
Factory Location Greenwood, Indiana
Valve Type Modular (Stacking) Valve, Meter Out
Adjustment Type Hand Screw
Valve Interface D03 (NG6)
Flow Rating 10.5
Pressure Rating 3625

Description

Nachi D03 Modular Flow Control, D03 (NG6), 10.5GPM, 3625psi, Compensated, Hand Screw, Meter Out Control, Fine Control, Flow Throttled in Lines A & B.

The Nachi Modular flow control valve is used to control actuator speed, and for other applications where flow control in a specific line may be required. A wide range of models are available for control in various ports. A pressure compensation mechanism ensures that the control flow rate does not change, even when there is pressure or temperature fluctuation.
