Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Needle |
| Adjustment Type | Knob Adjustment |

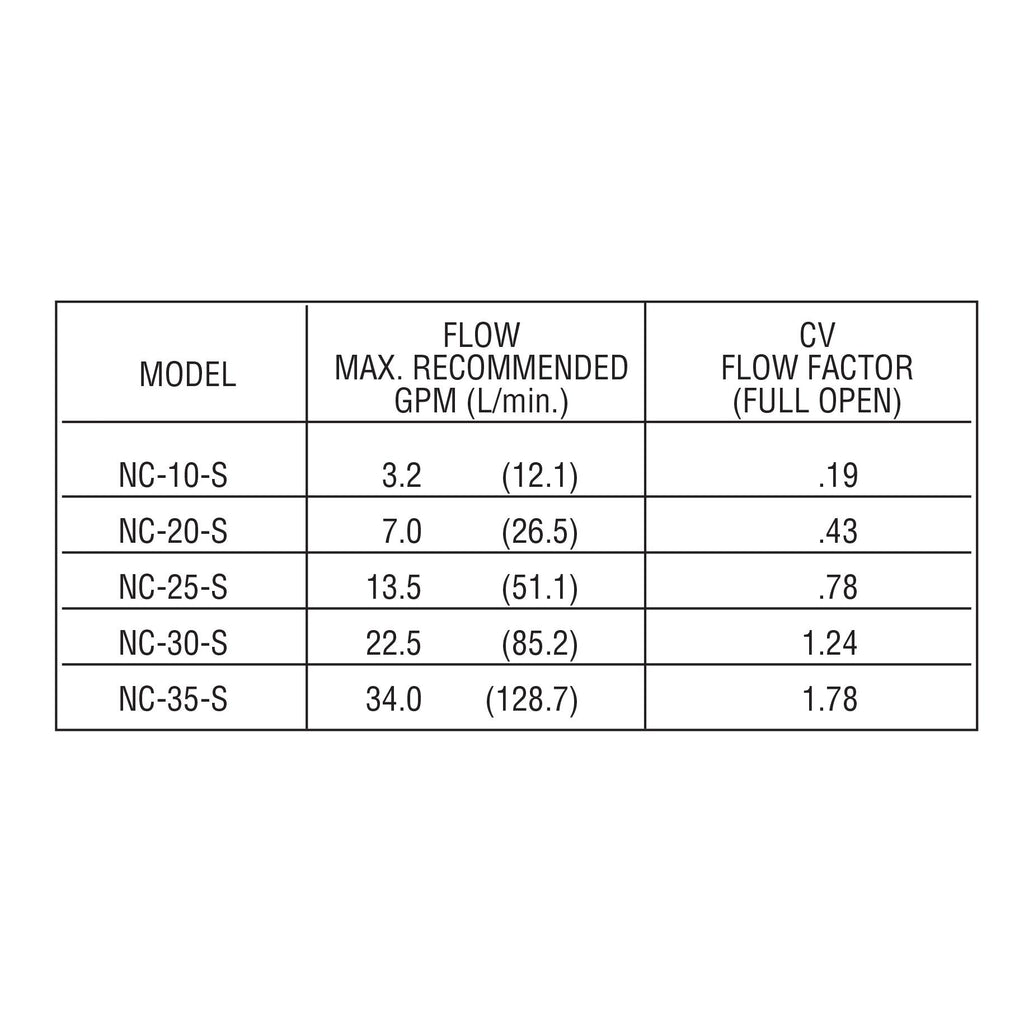

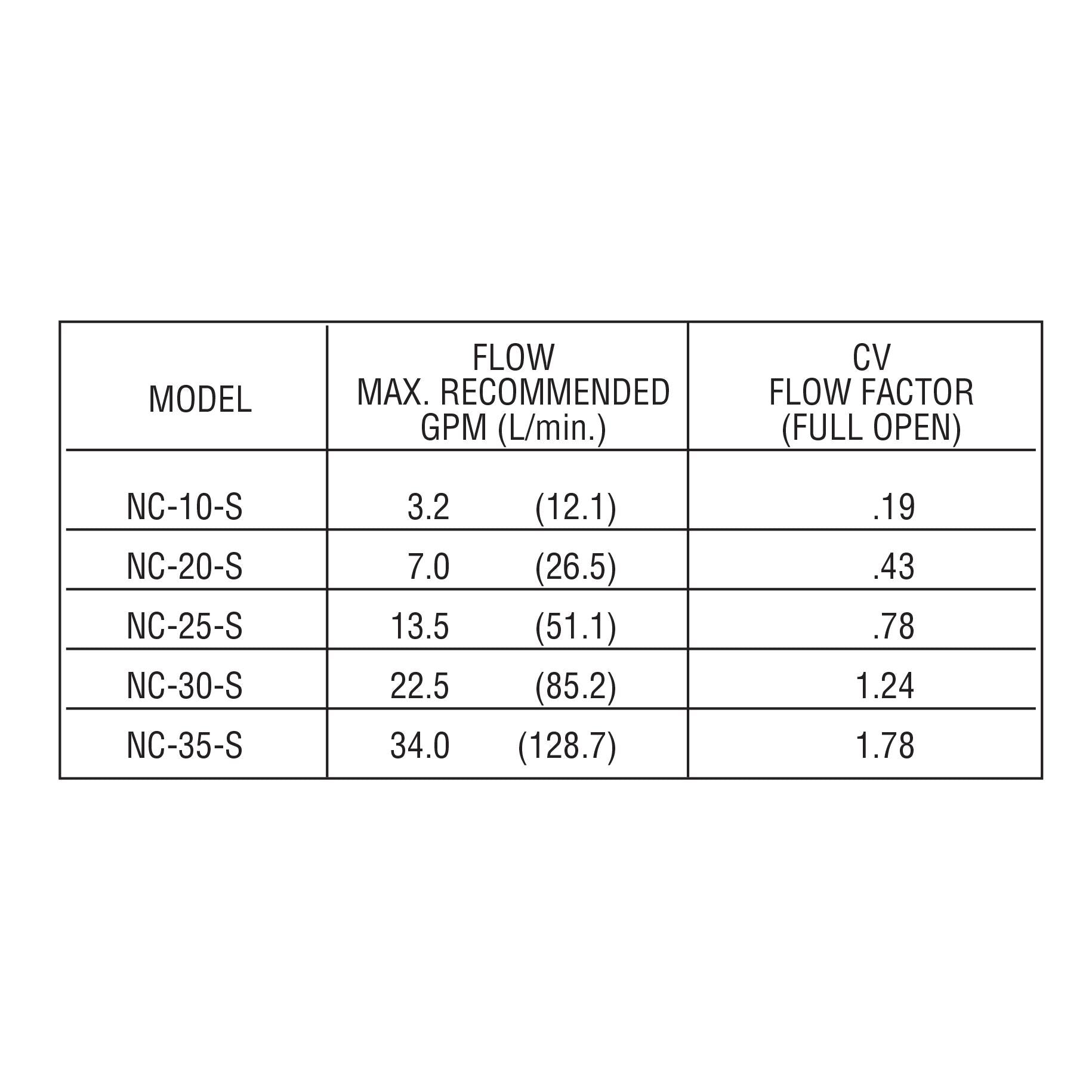

| Flow Rating | 22.5 |
| Pressure Rating | 3000 |
| Operating Temp Range | -15 to +400F |
| Seal Material | NBR |
| Series | NC |
| Cartridge Cavity | NC30 |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 2.5 |
| Width | 2 |
| Weight | 2 |
Description

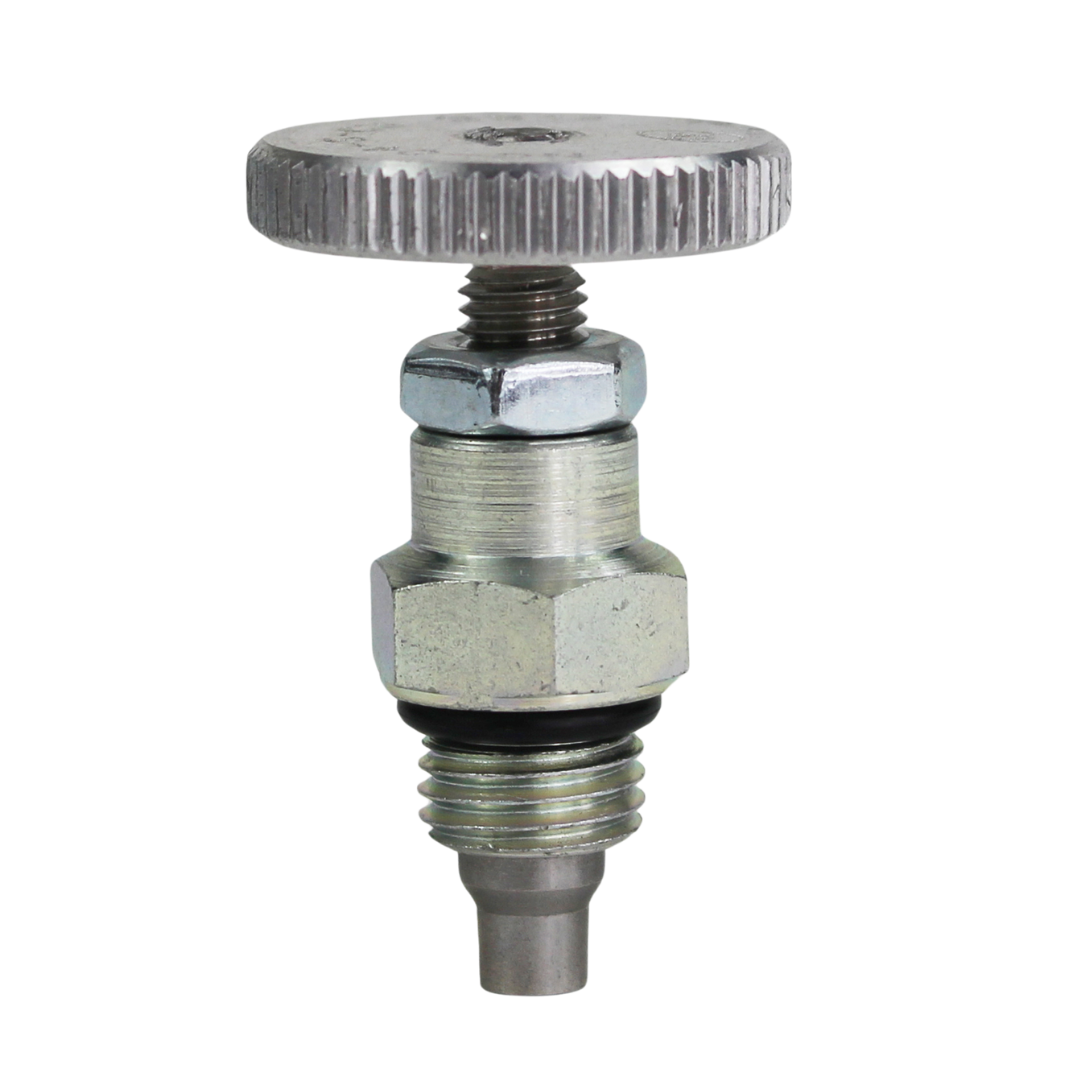

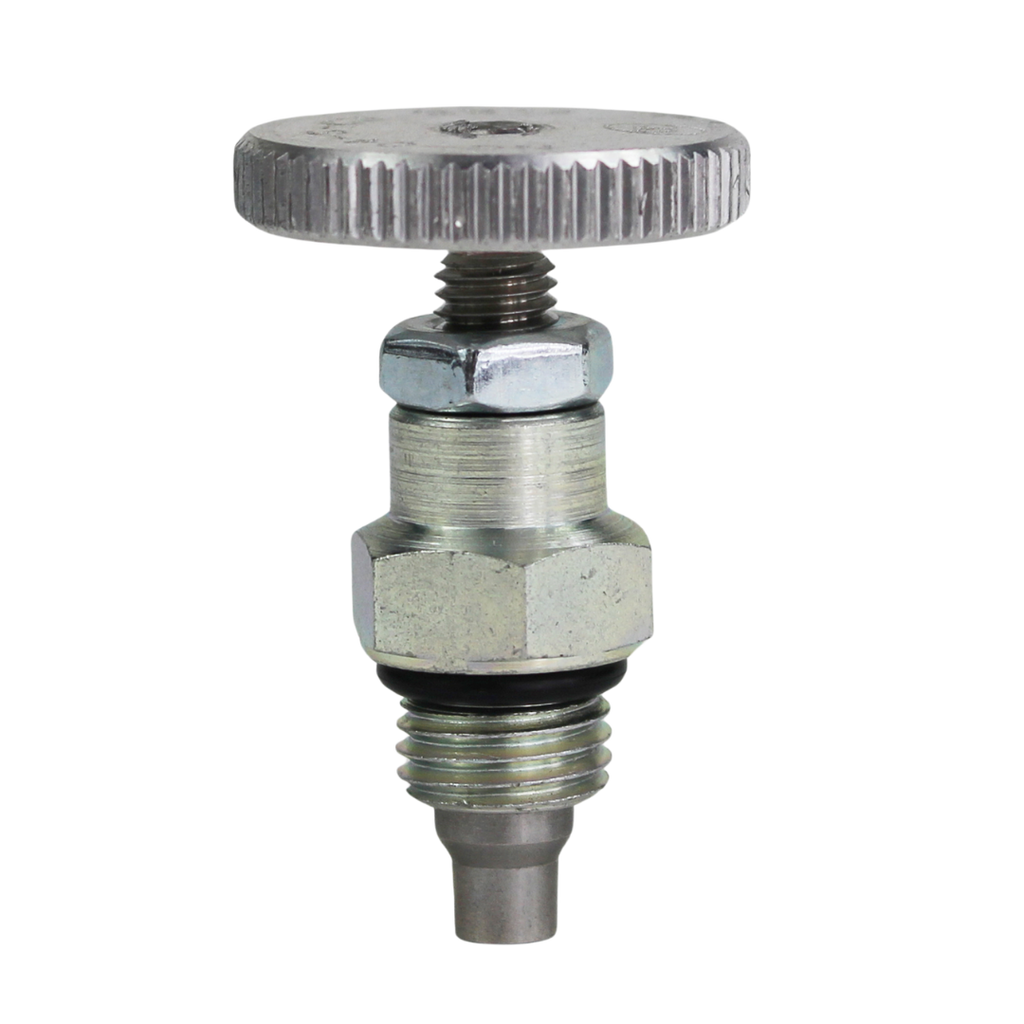

The Deltrol Fluid Products NC-30-S Adjustable Flow Control Needle Valve is a non-self-contained cartridge valve engineered to provide precise flow restriction with reliable shut-off. Available in sizes from 1/8" to 3/4", it features an adjustable needle that controls flow and ensures a complete shut-off when fully closed. Capable of handling up to 22.5 gpm with a maximum pressure of 3000 psi, this valve is equipped with an aluminum knob for smooth adjustments, Viton seals for durability, and a compact design. It operates effectively in temperatures from -15°F to +400°F and is suited for mineral-based fluids, offering optimal performance and flexibility in various applications.
