Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Needle |
| Adjustment Type | Knob Adjustment |
| Flow Rating | 13.5 |
| Pressure Rating | 3000 |
| Operating Temp Range | -15 to +400F |
| Seal Material | NBR |
| Series | NC |
| Cartridge Cavity | NC25 |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 2.5 |
| Width | 2 |
| Weight | 2 |
Description

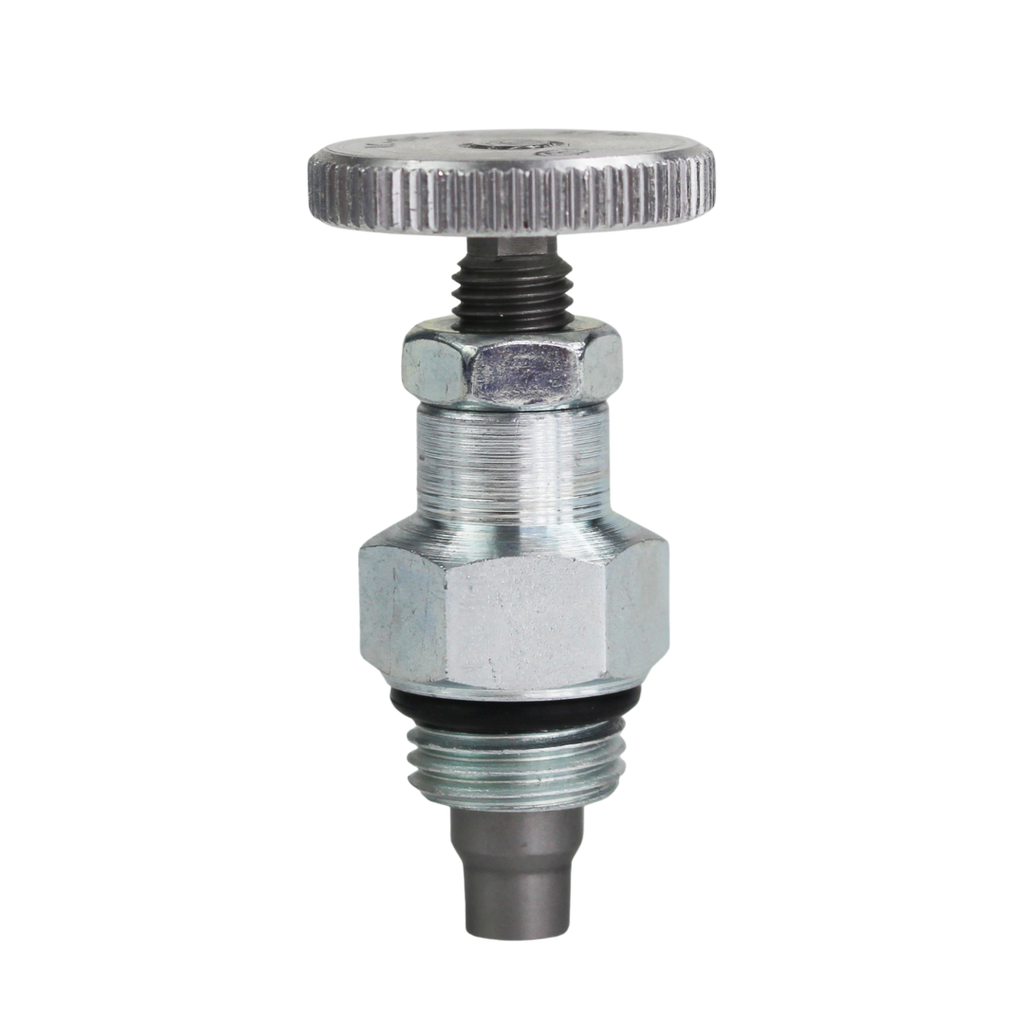

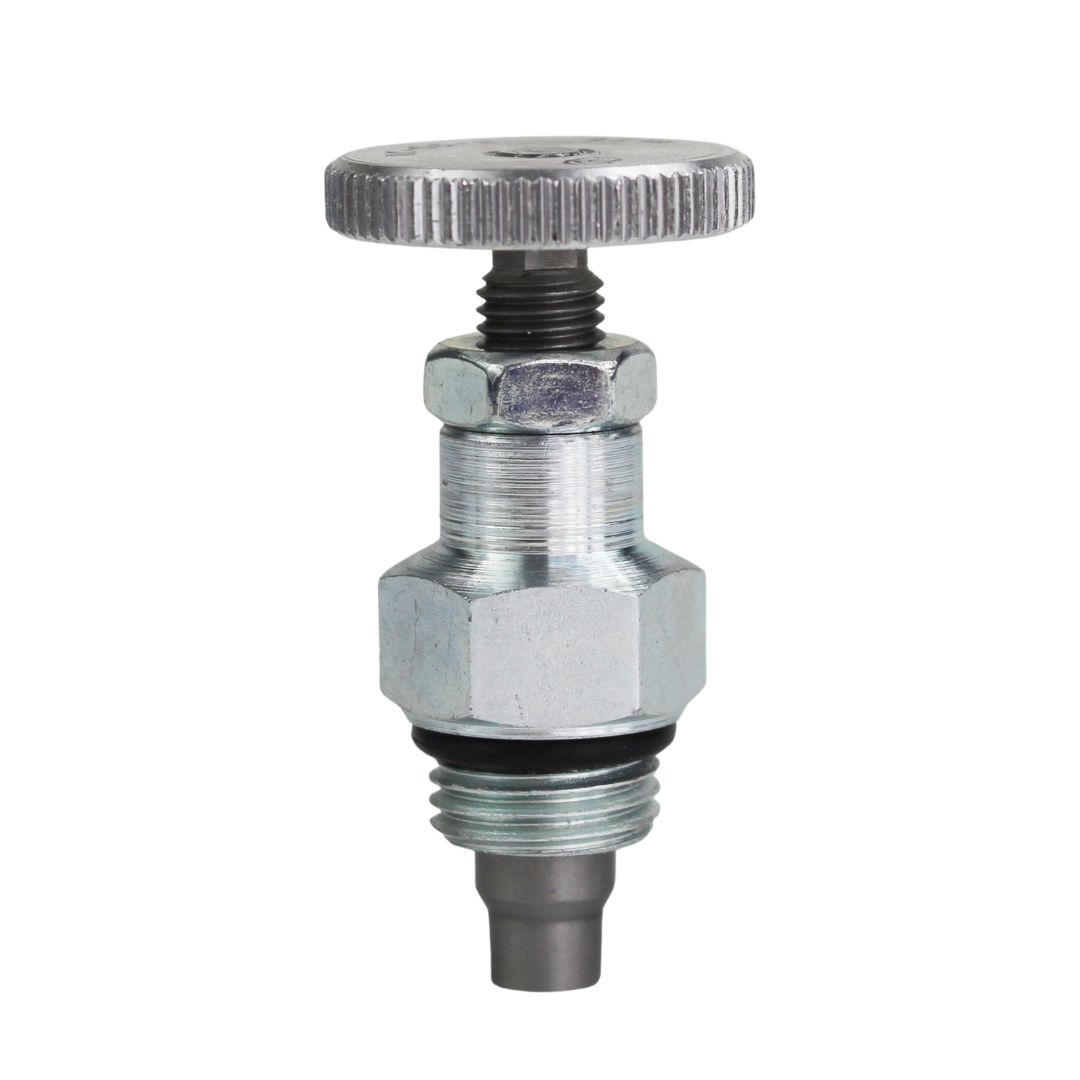

The Deltrol Fluid Products NC-25-S Adjustable Flow Control Needle Valve is a non-self-contained cartridge valve designed for precise flow control and reliable shut-off. Available in sizes from 1/8" to 3/4", it allows for adjustable flow restriction by turning the needle in or out and provides a complete shut-off when fully closed. With a flow capacity of up to 13.5 gpm and a maximum operating pressure of 3000 psi, this valve features an aluminum knob for easy adjustments, Viton seals for durability, and a compact design. It operates efficiently across a wide temperature range from -15°F to +400°F and is ideal for mineral-based fluids, ensuring optimal performance and flexibility in various applications.
