NC-20-S : Deltrol Flow Control Needle Valve, Adjustable, NC20 Cavity, 1/4" NPT, 3000psi, 7GPM

Deltrol Fluid ProductsSKU: 10011-73
1-3 Days
Price:
$16.14

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Needle
Adjustment Type Knob Adjustment

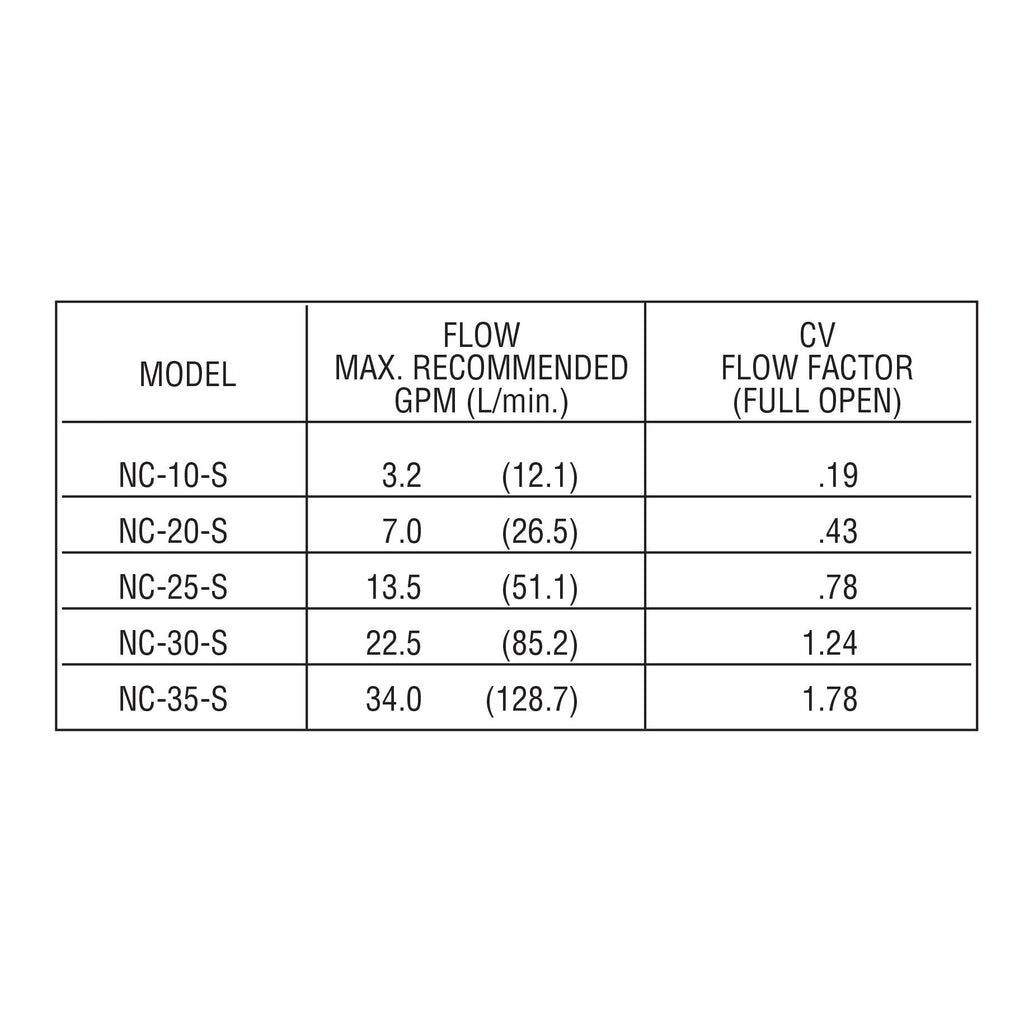

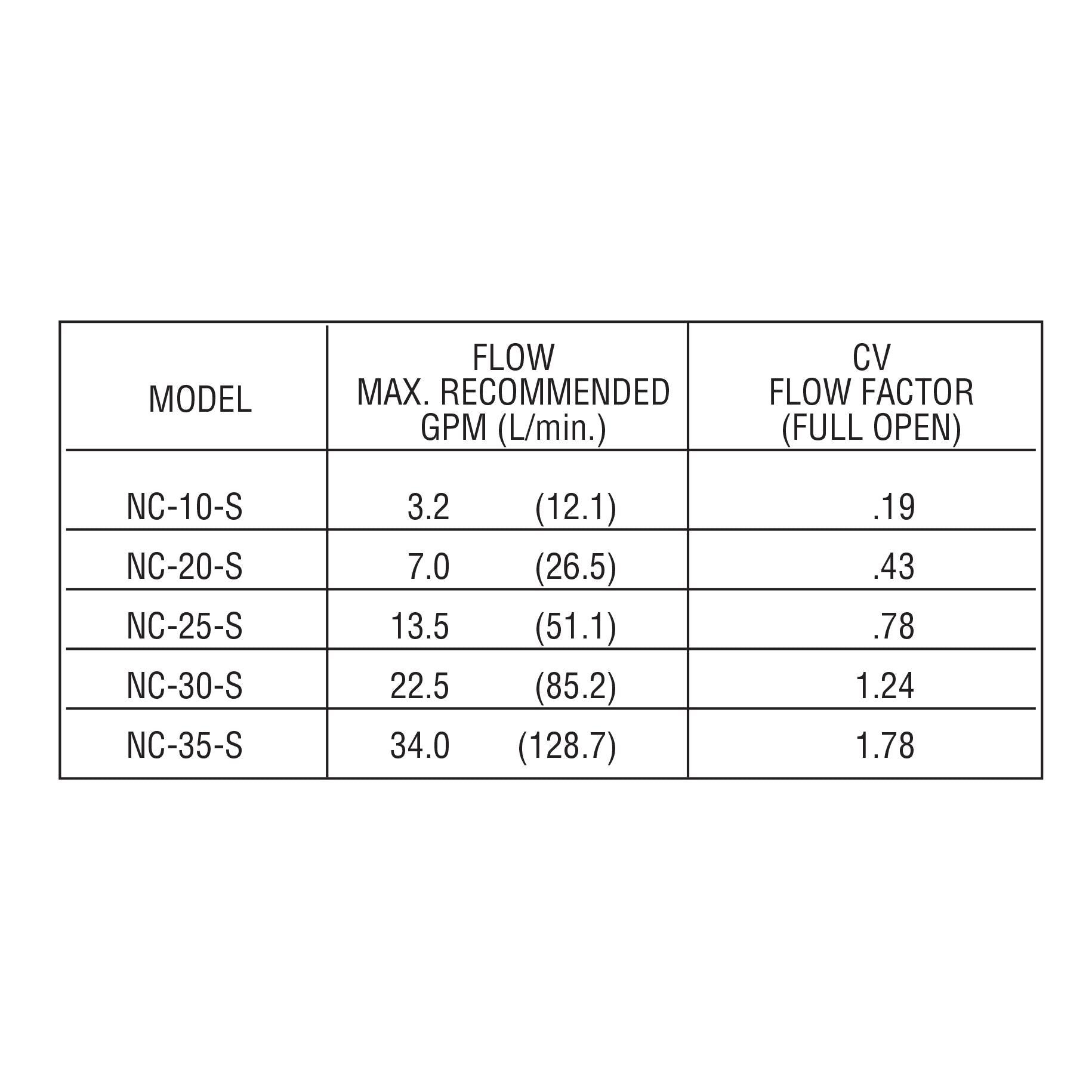

Flow Rating 7.0
Pressure Rating 3000
Operating Temp Range -15 to +400F
Seal Material NBR
Series NC
Cartridge Cavity NC20
Country of Manufacture United States/Vietnam

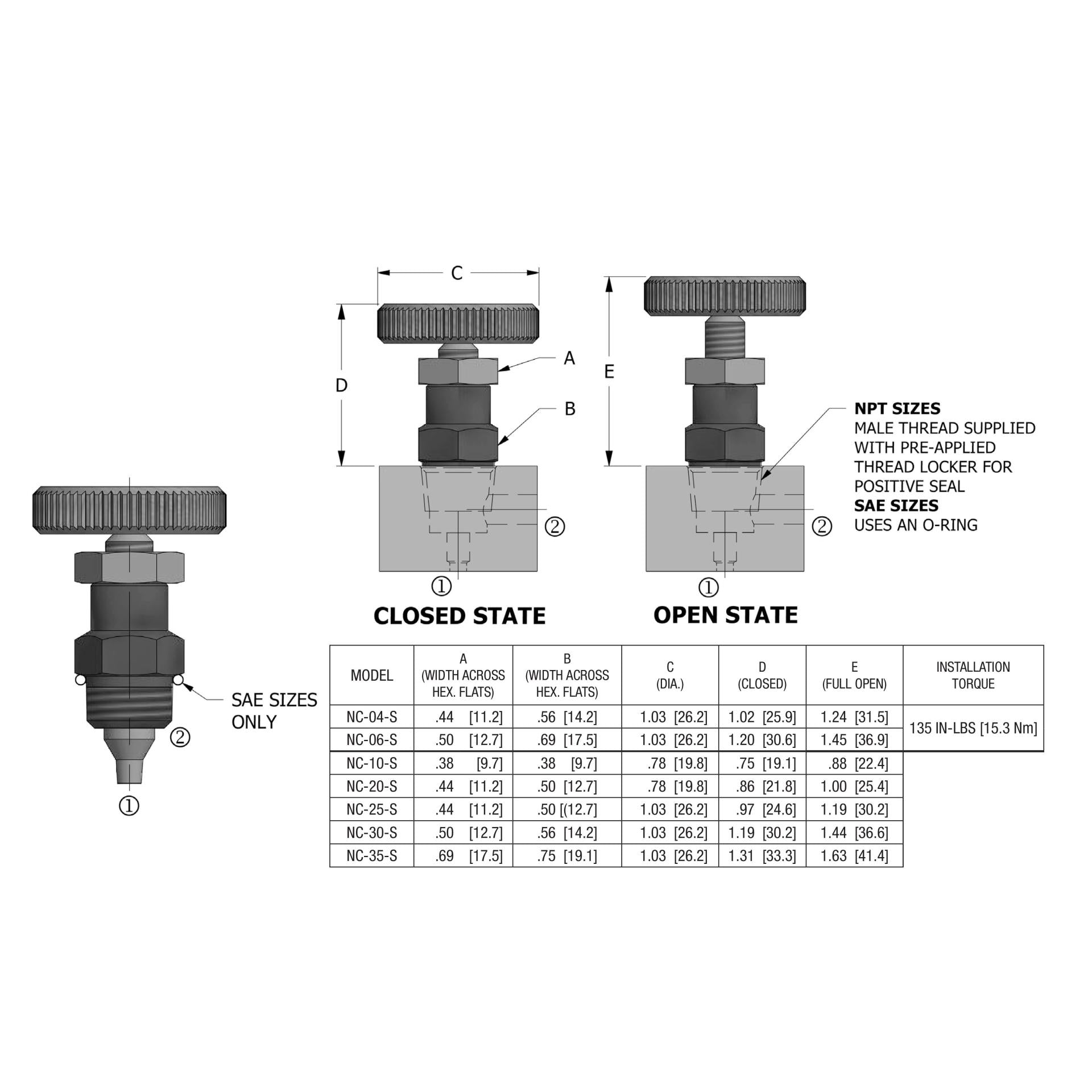

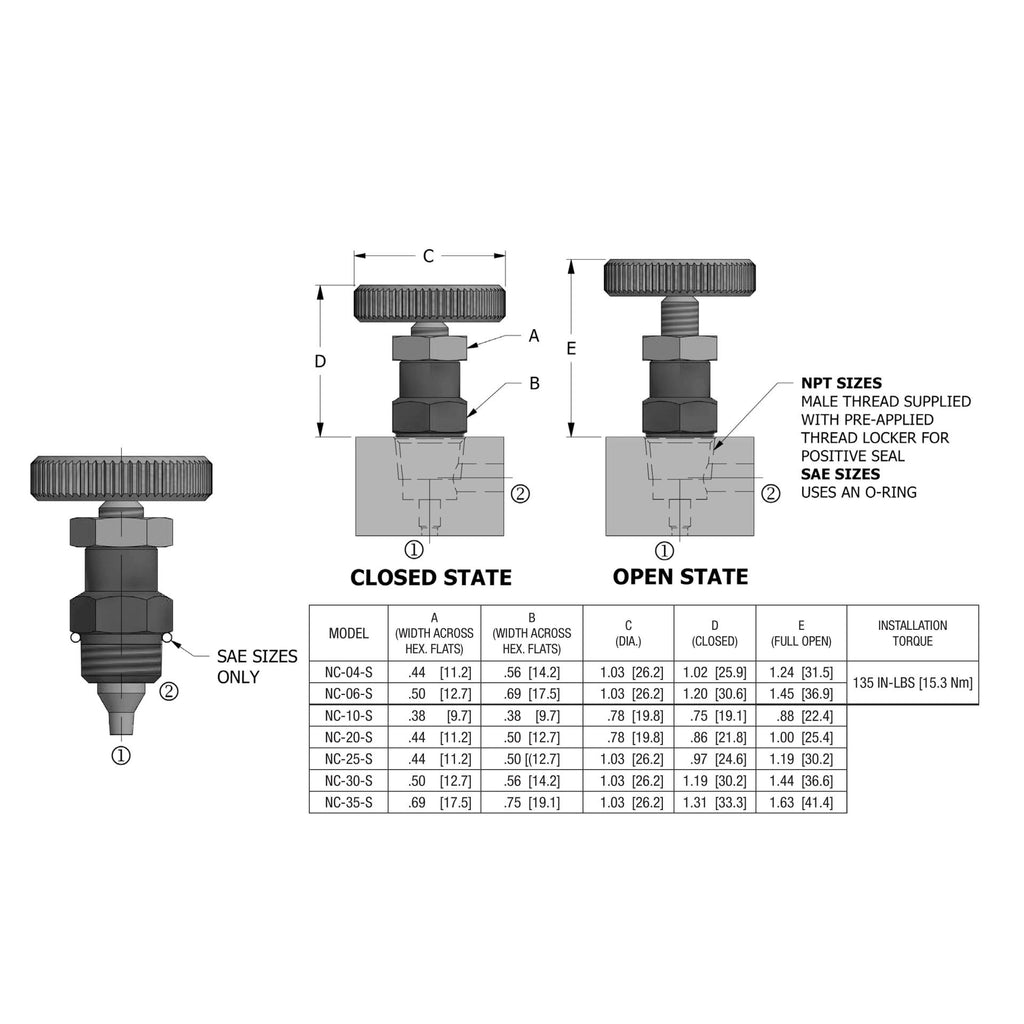

Height 2
Length 2.5
Width 2
Weight 2

Description

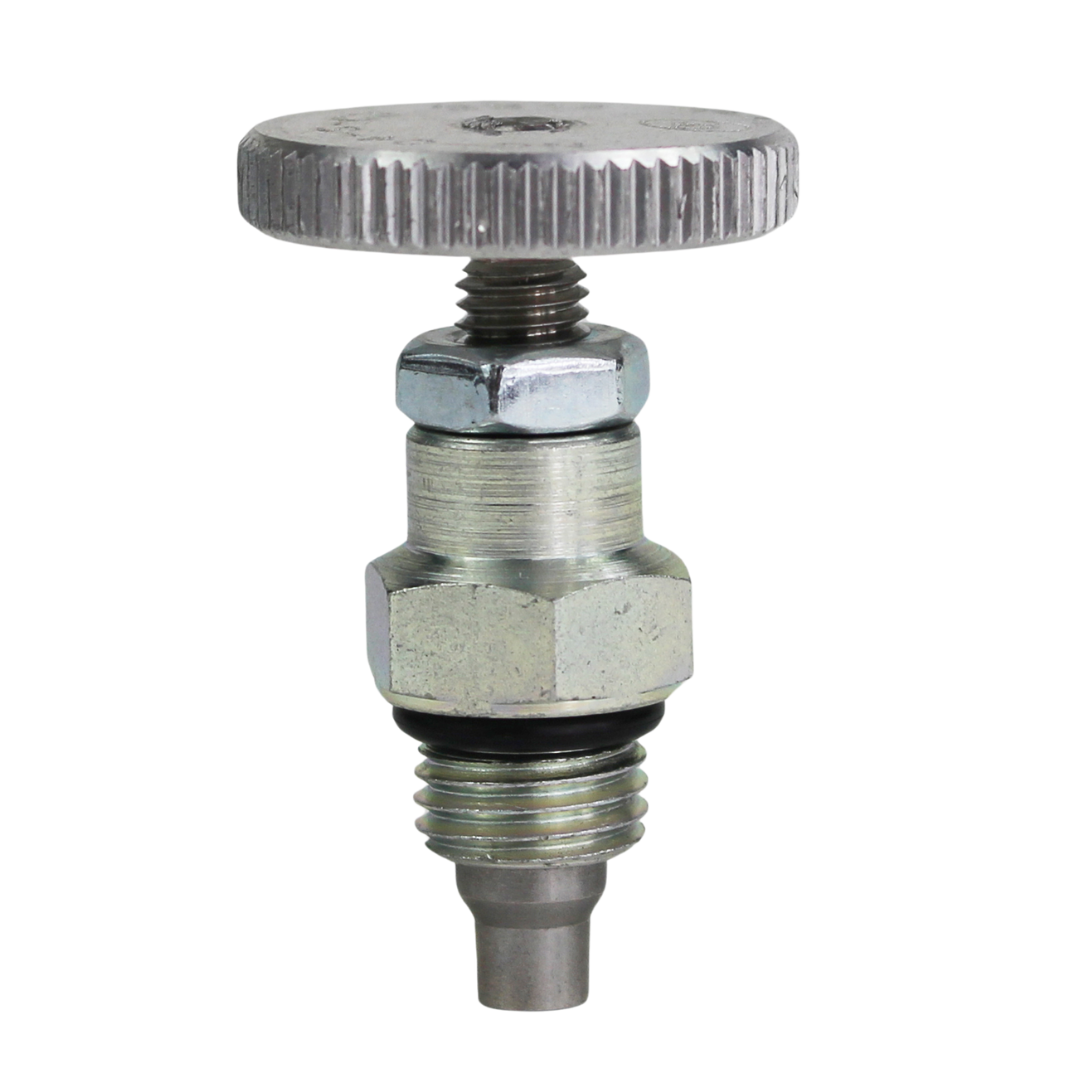

The Deltrol Fluid Products NC-20-S Adjustable Flow Control Needle Valve is a versatile, non-self-contained cartridge valve designed to control flow with precision and offer positive shut-off. Available in sizes from 1/8" to 3/4", it allows for variable flow restriction by adjusting the needle in or out, and fully closes to stop flow when needed. It handles flow rates up to 7.0 gpm and operates at a maximum pressure of 3000 psi. The valve features an aluminum knob for easy adjustment, Viton seals for durability, and can be locked in place. Suitable for temperatures ranging from -15°F to +400°F, it is ideal for mineral-based fluids and ensures reliable performance in various applications.
