Deltrol Fluid ProductsSKU: 10011-71
1-3 Days
Price:
$15.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Needle
Adjustment Type Knob Adjustment

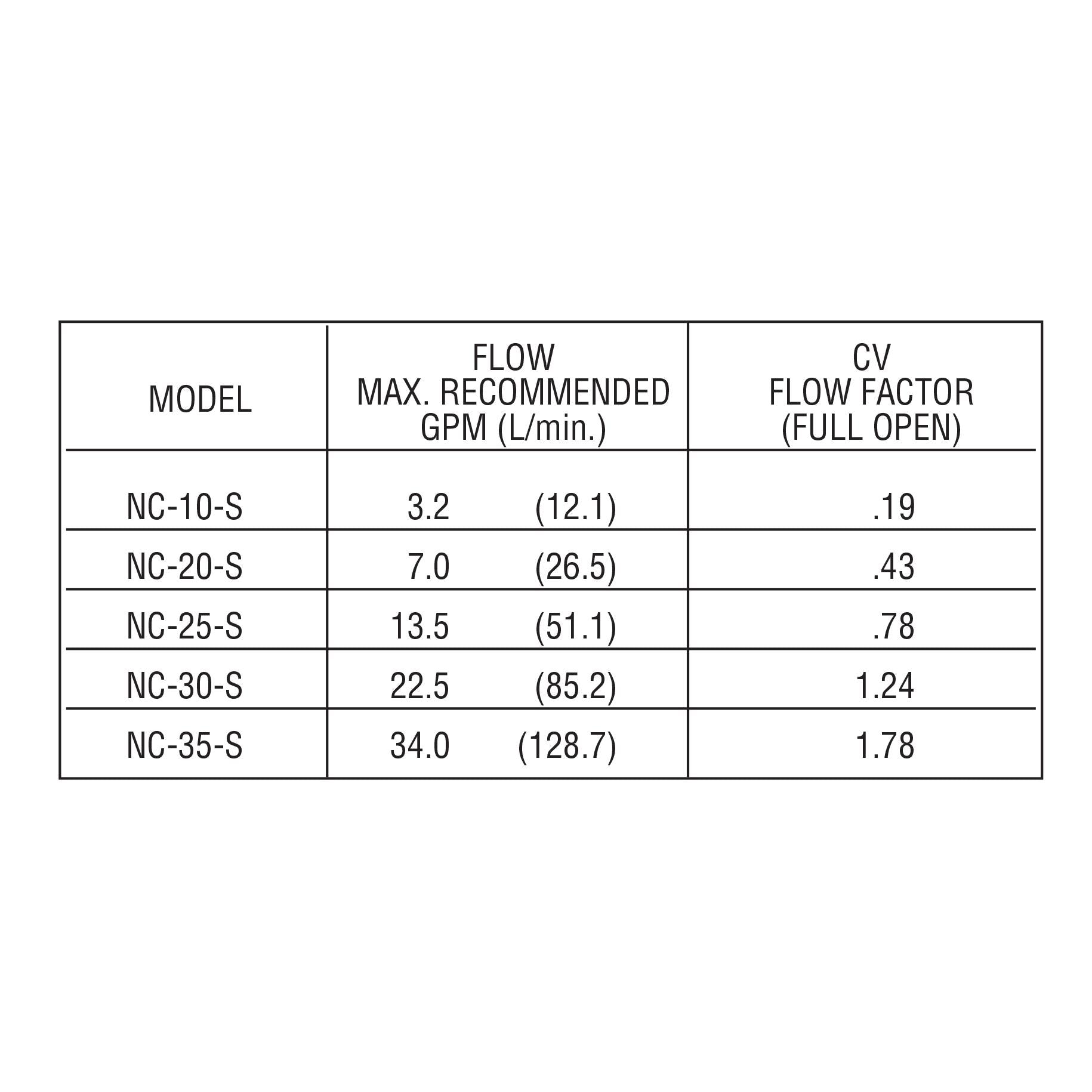

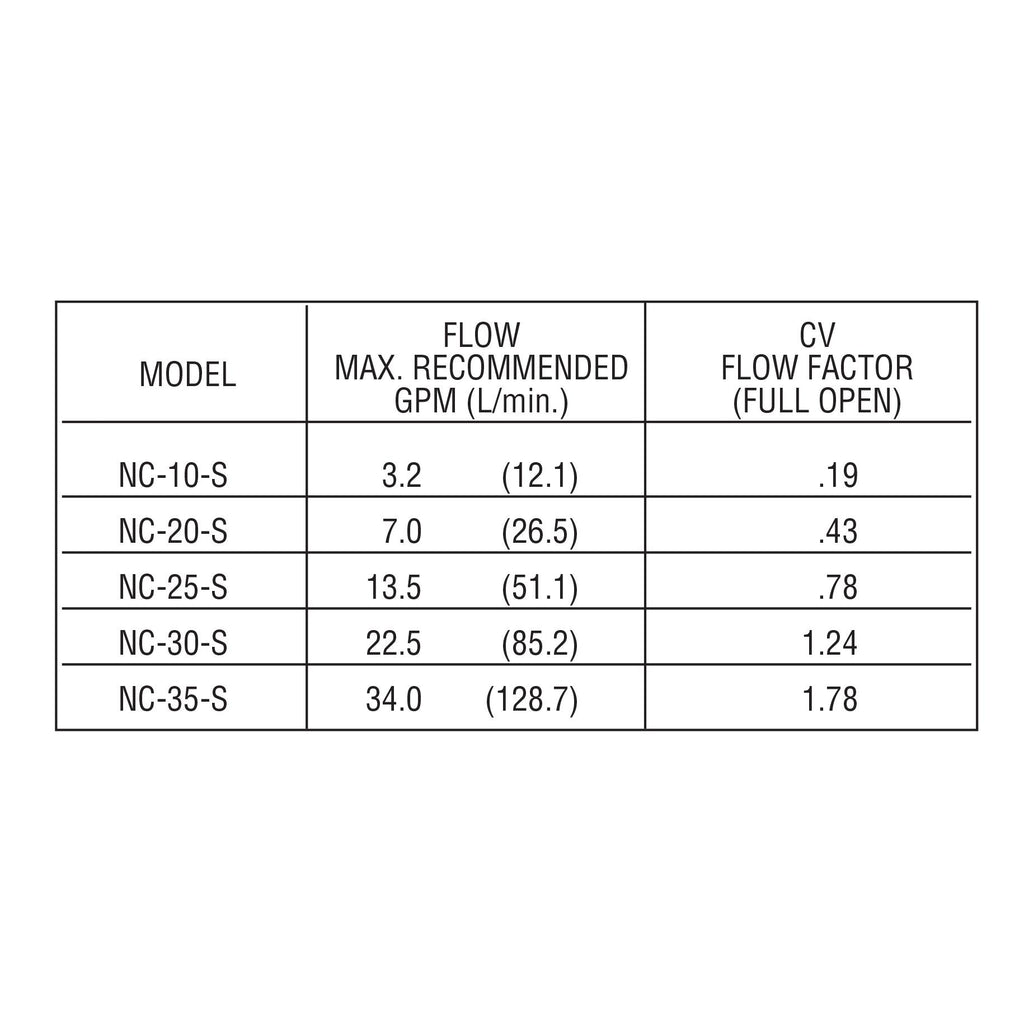

Flow Rating 3.2
Pressure Rating 3000
Operating Temp Range -15 to +400F
Seal Material NBR
Series NC
Cartridge Cavity NC10
Country of Manufacture United States/Vietnam

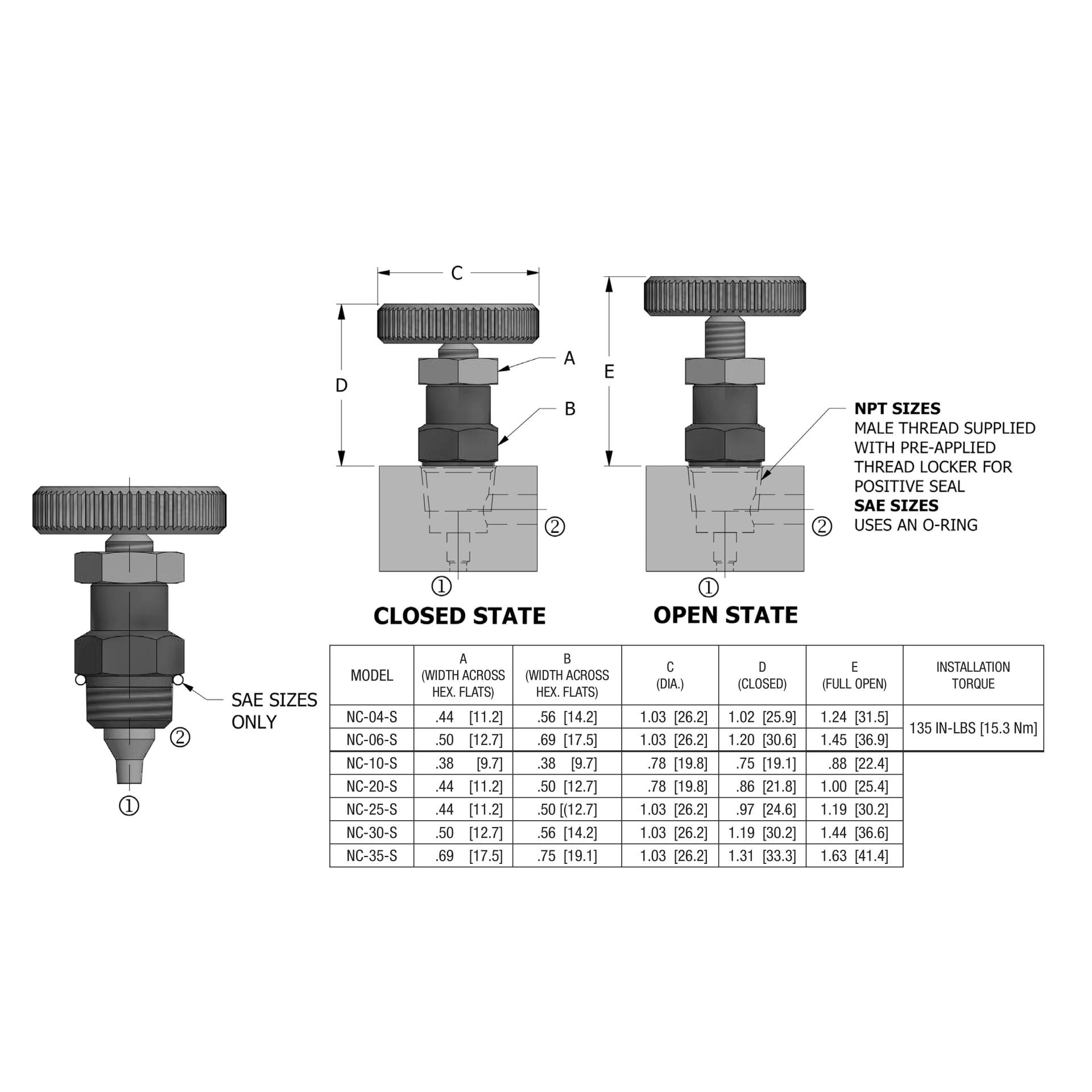

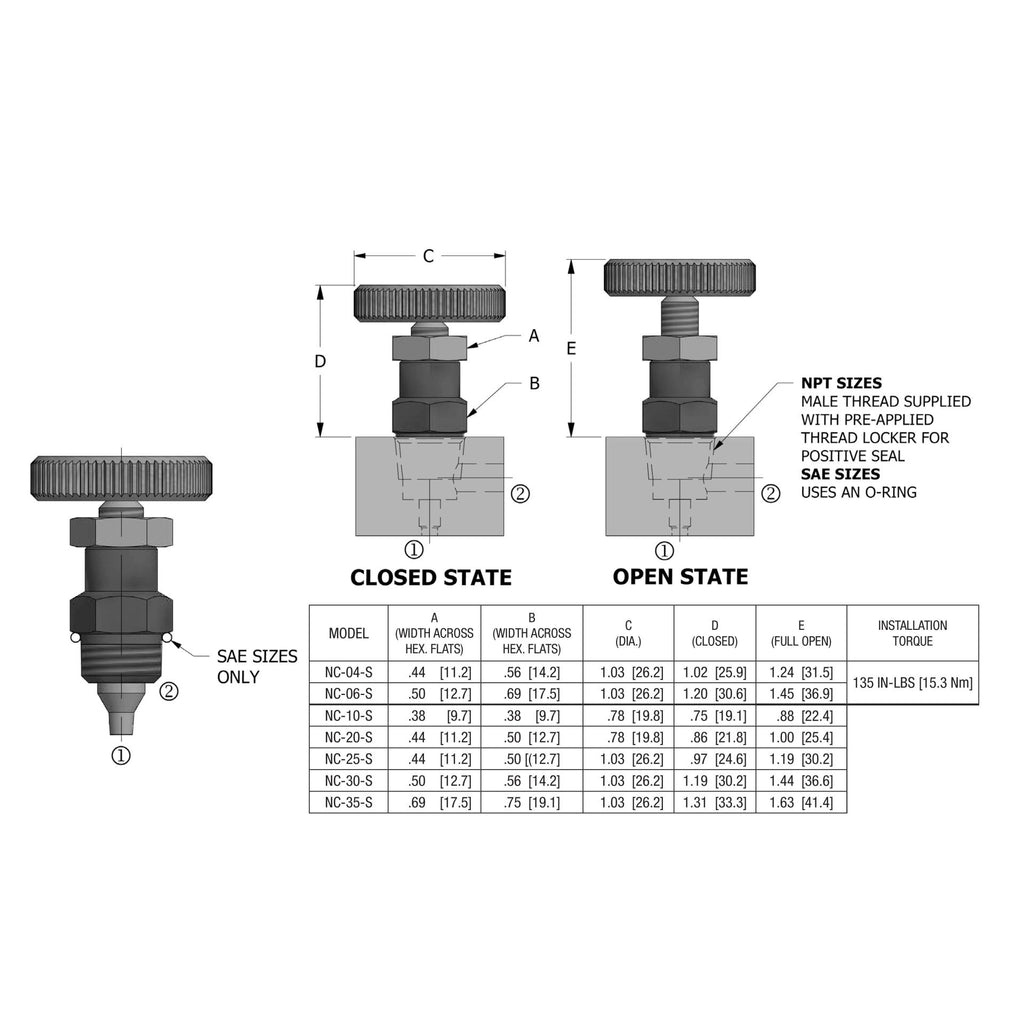

Height 2
Length 2.5
Width 2
Weight 2

Description

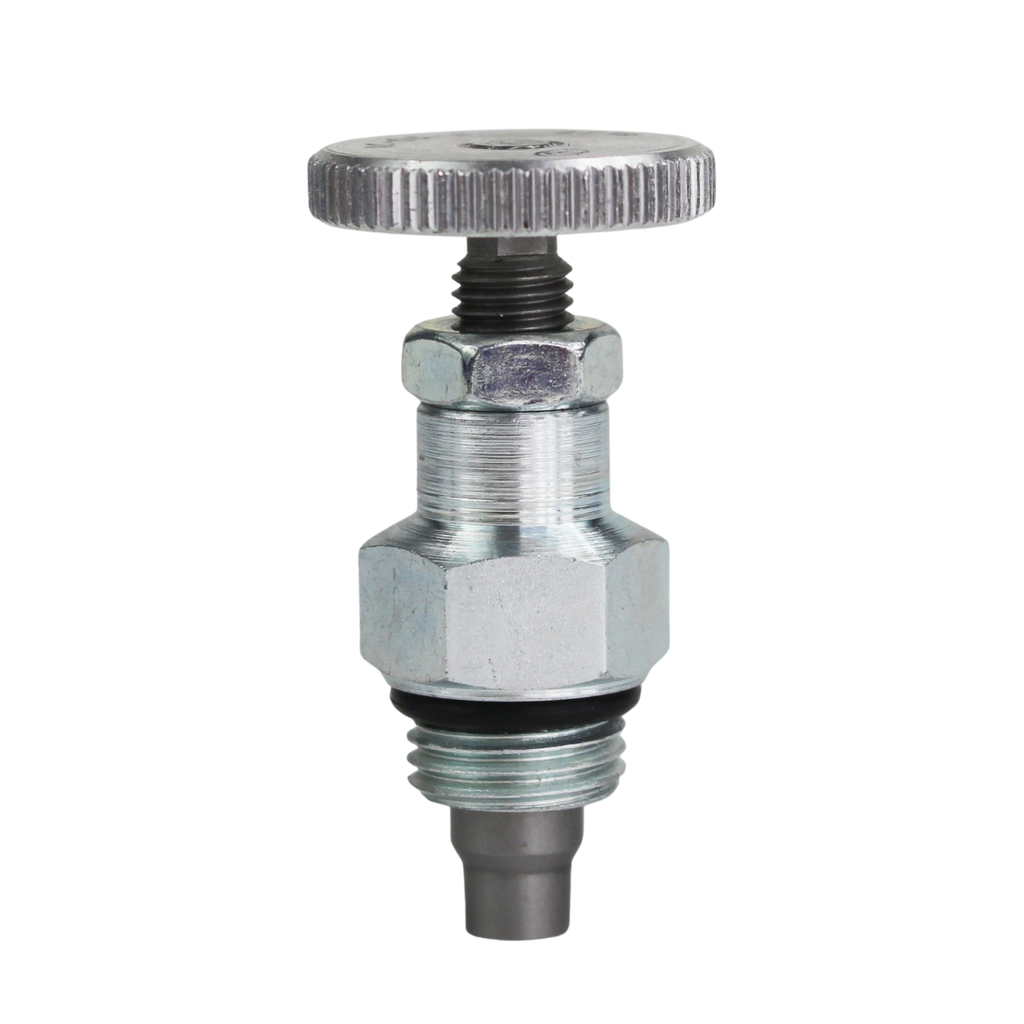

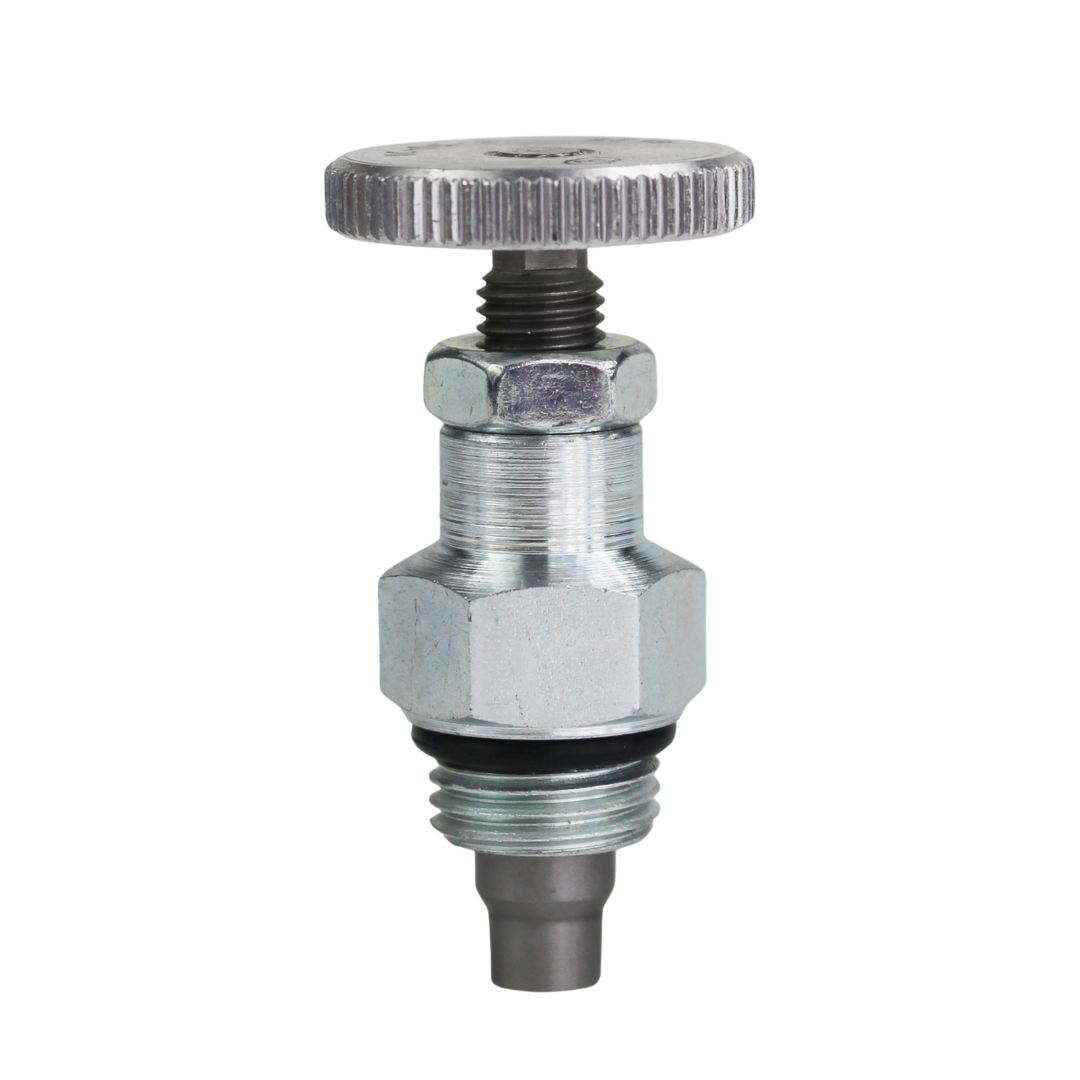

The Deltrol Fluid Products NC-10-S Adjustable Flow Control Needle Valve is a compact, non-self-contained cartridge valve designed for precise flow regulation and positive shut-off. With sizes ranging from 1/8" to 3/4", this valve allows you to adjust the flow by turning the needle in or out and fully closes to stop flow when needed. Suitable for flows up to 3.2 gpm, it operates at a maximum pressure of 3000 psi and is built with Viton seals for durability. It features an aluminum knob for easy adjustment, a full range of settings, and can be locked in place. The valve is effective within a temperature range of -15°F to +400°F and is recommended for mineral-based fluids.
