Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Huntersville, North Carolina |
| Material | Steel, zinc-nickel coated |
| Valve Type | Directional Leak Free Poppet |
| Valve Interface | D03 (NG6) |
| Flow Rating | 5.28 |
| Pressure Rating | 5800 |
| Operating Temp Range | -40 to +176F |
| Seal Material | NBR |
| Actuation Type | Pneumatic |
| Series | NBVP 16 S |
| Spool Configuration | Normally Open |
| Positions | 2-Position |
| Way | 2-Way |
| Height | 2 |
| Length | 6 |
| Width | 2 |
Description

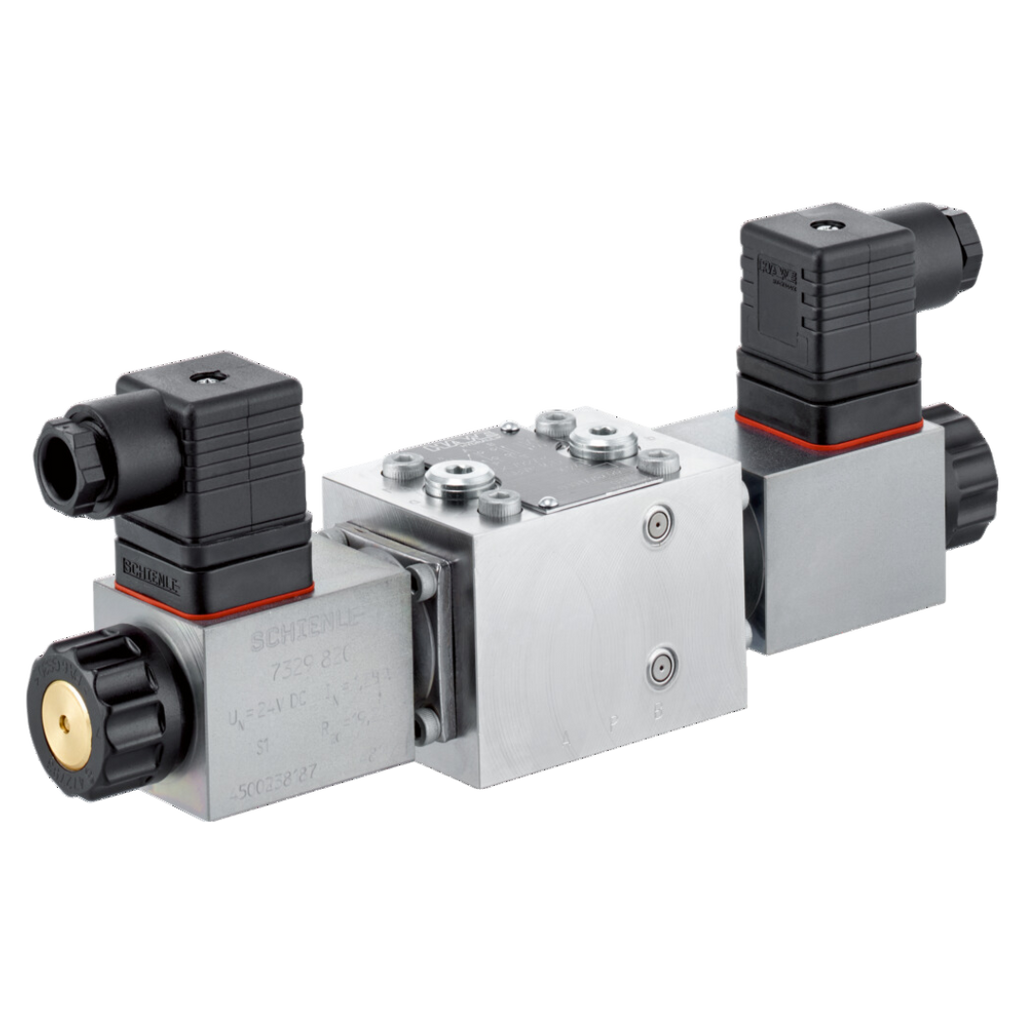

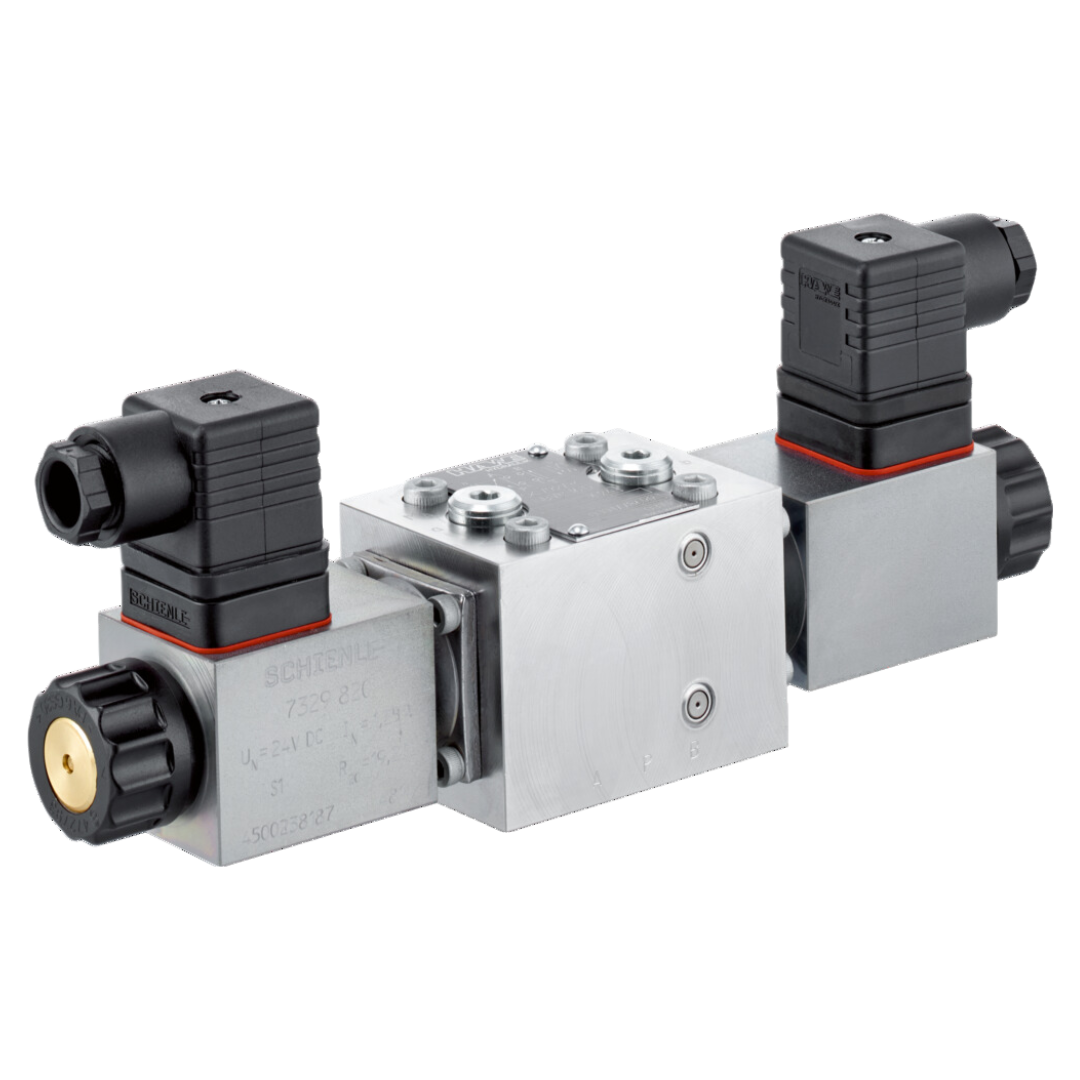

Explore the Hawe NBVP Directional Seated Poppet Hydraulic Valve, tailored for manifold mounting with a standard connection pattern of nominal size NG 6. Available in 2/2-, 3/2-, 3/3-, 4/2-, 4/3-, and 4/4-way configurations, this valve offers versatile actuation options and cone-seated design for reliable performance. Benefit from optional position monitoring, partial notching versions, and compatibility with mounting pressure switches and gauges. With potential for explosion-proof versions and 8-watt solenoids, it caters to various applications including machine tools, clamping systems, testing machinery, and even wind turbines. Its adaptability extends to oil & gas equipment like riser/tensioner manifolds. Featuring gauge points for easy integration of test points, pressure gauges, transducers, or switches, it offers flexibility for additional functionalities. For enhanced functionality, the 4-way/3-position valves allow for exciting possibilities like shifting both coils and introducing a new 4th position such as a float option.
