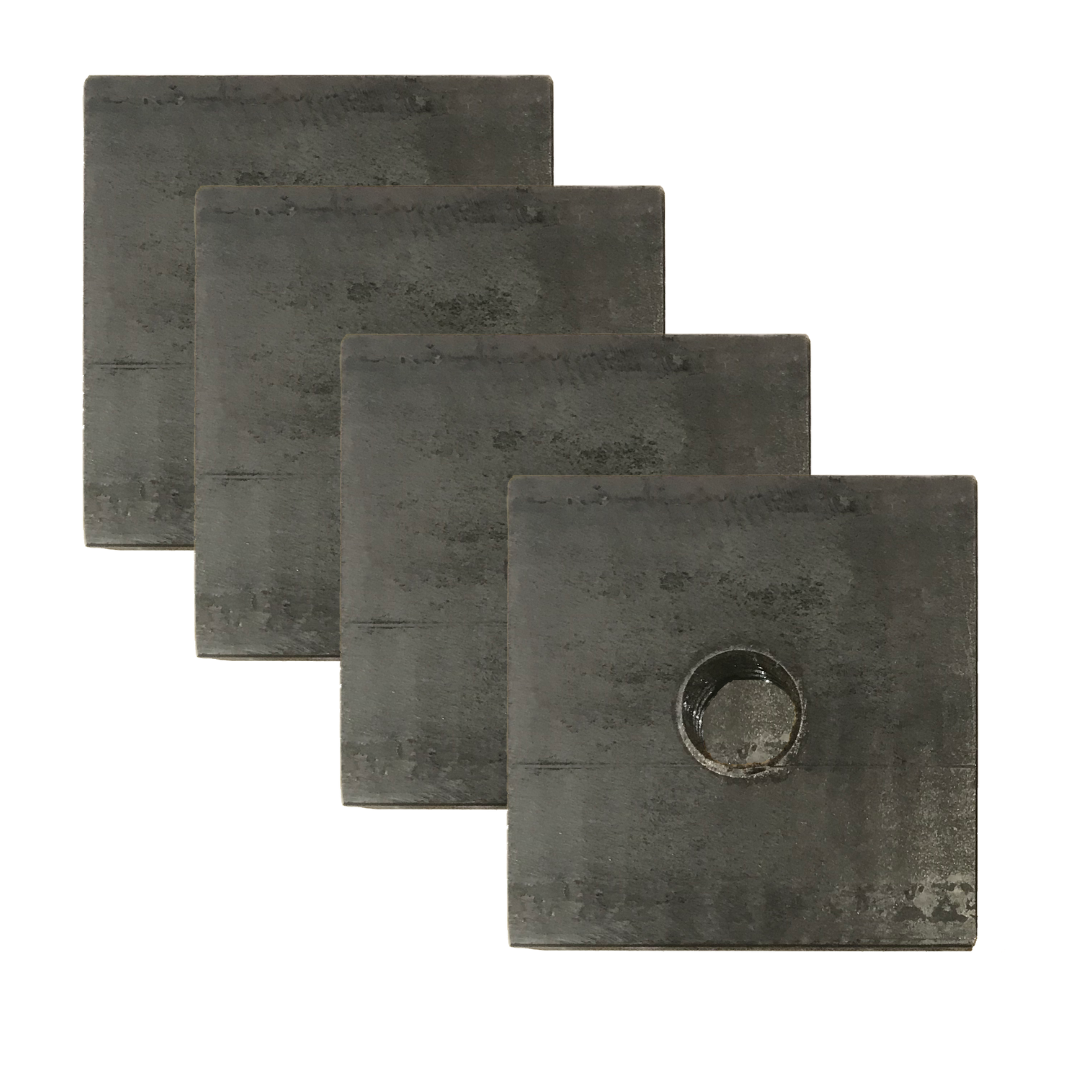

MWP404-405 : Dampening Bar Weld Pad Kit, for 404TC/TSC thru 405TC/TSC Motor Frame Size

Magnaloy Weld Pad Kits are designed for use with Magnaloy's Weld Style Dampening Bars. Welding directly to the Magnaloy Motor Dampening Bar can cause damage to the metal-to-rubber bond resulting in premature failure. Welding should be limited to the ends only (across the W dimension) to prevent damage to the rubber vulcanization by the heat generated during the welding process. Extreme care should be exercised whenever welding to assemblies containing vulcanized rubber. Bond Separation will occur if the metal/rubber surface interface reaches a temperature above 500F.

Features:

• Allows simple bolt down installation and design flexibility without drilling and tapping the reservoir surface.
• Eliminates the possibility of heat damage to rubber vulcanization caused by welding directly on the dampening bar.
• Available in sizes to accommodate all Magnaloy Motor Dampening Bars.
• Provides additional motor height to give added design flexibility and plumbing options.
• SUPPLIED IN SETS OF FOUR(4) PADS PER KIT (ONE SET FOR EACH MOTOR).
