Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Peachtree City, GA |
| Installation & Maintenance Manual | |
| Solid Model | |
| Service Manual Download | |
| Material | Stainless Steel |
| Port Size | 1" Male NPT |
| Diameter | 4.72 |
| Desiccant style | Refillable |
| For Use With | Filling Adapter 02.2112.34, Flange Adapter 08.2123.04 |
| Adapter Plate Option | No Adapter Plate |
| Indicator Option | Color Changing |
| Drying Agent | GIEBEL Xdry and Carbon |
| Check Valve Option | With Check Valves |
| Micron | 3 Micron |
| O Ring Seals | FKM Viton |
| Series | ME-RV |
| Nominal Capacity | 6.52oz Color Changing Capacity |
| Country of Manufacture | Germany |
| Height | 4.72 |
| Length | 9.17 |
| Width | 4.72 |
| Weight | 7.0 |
Description

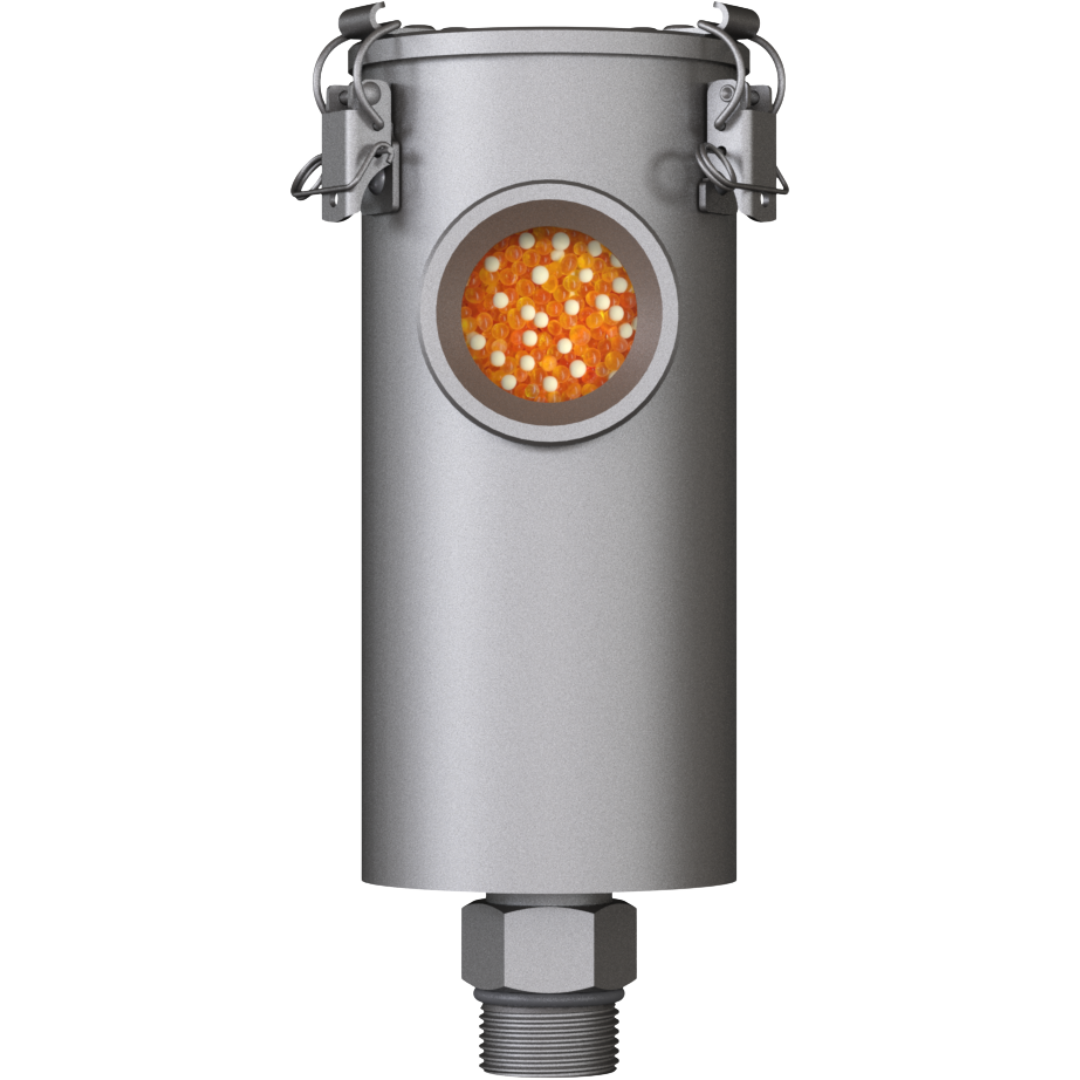

The Series ME-RV Desiccant Breather Dryer is a rechargeable, refillable moisture control solution designed for use in ATEX Zone II 2 G / D IIC T4 environments, ideal for hydraulic power packs, gearboxes, storage tanks, and mobile machinery in the chemical industry or exposed to salt air. This durable dryer features a stainless steel housing with check valves, ensuring effective protection against moisture damage in indoor, outdoor, and offshore applications. Inside, a GIEBEL Xdry® desiccant bed and a 3μm filter provide optimal air drying and cleaning. An activated carbon layer captures oil mist during air discharge, safeguarding both the desiccant and the environment from contamination. When the adsorber becomes saturated, the inner components are easily replaceable at low cost. Available with FKM or EPDM seals, the ME-RV is a cost-effective, high-performance solution that meets the stringent requirements of ATEX product directive 2014/34/EU.
