Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-MBS-LH |
| Country of Manufacture | Italy |
| Height | 1.1 |
| Length | 0.53 |
| Width | 1.1 |
| Weight | 0.03 |
| Side 2 Gender | Cutting Rings |
| Side 2 Size | 28mm |
| Side 2 Type | Light Duty DIN Tube |
Description

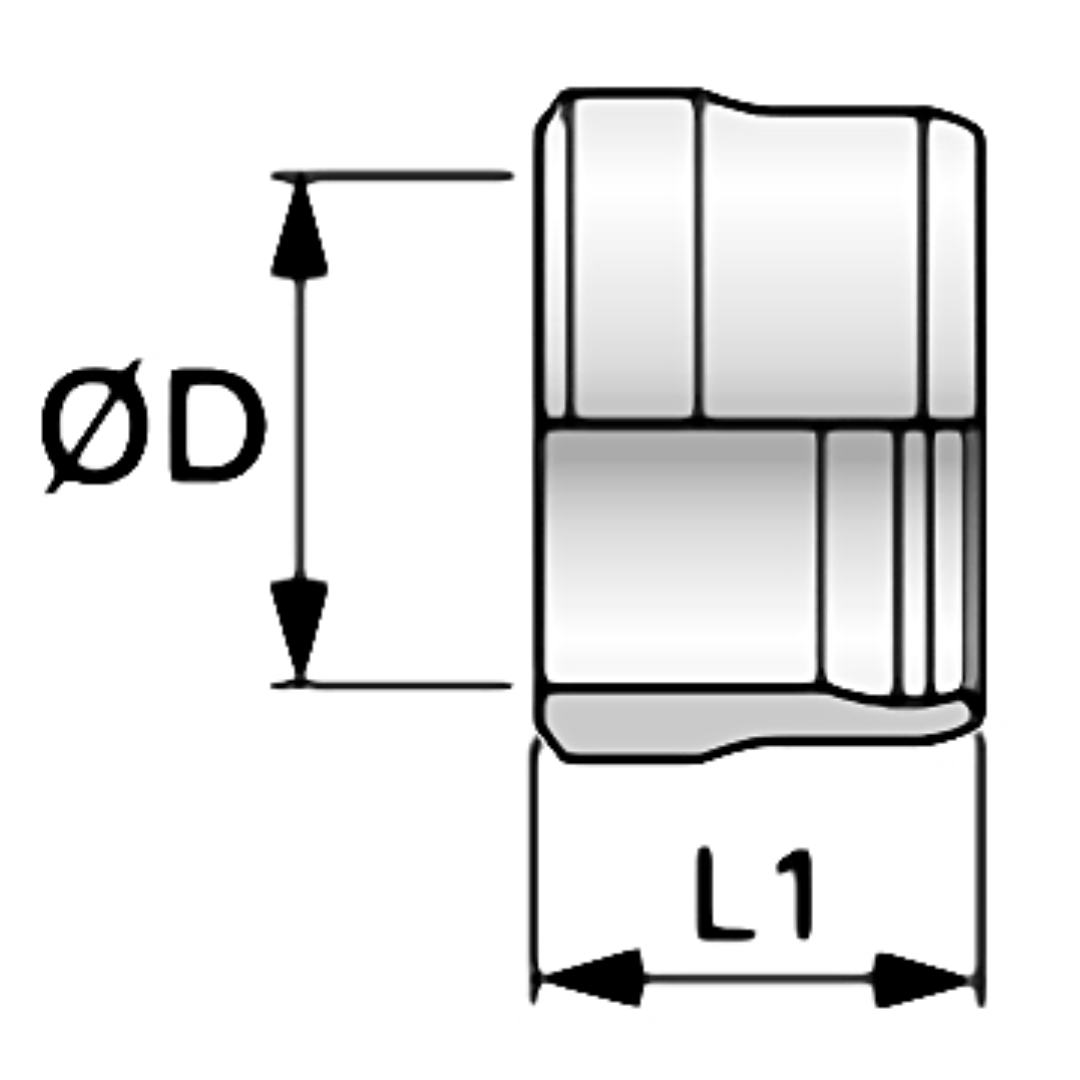

Alfagomma A-MBS Cutting Rings are straight, carbon steel double cutting rings designed to ensure a secure and leak-proof connection for hoses in hydraulic systems. These cutting rings, conforming to DIN 24° Light Series, create a tight seal between the hose and fitting by cutting into the hose's surface, which prevents leakage and improves the integrity of the connection. The key difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components (such as the cutting ring and nut), which are assembled together, making them more flexible and easier to replace. In contrast, one-piece fittings are a single unit, requiring complete replacement if damaged. These cutting rings are part of the A Series, which is compatible with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses, offering reliable and strong connections for a range of fluid and hydraulic applications.
