Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |

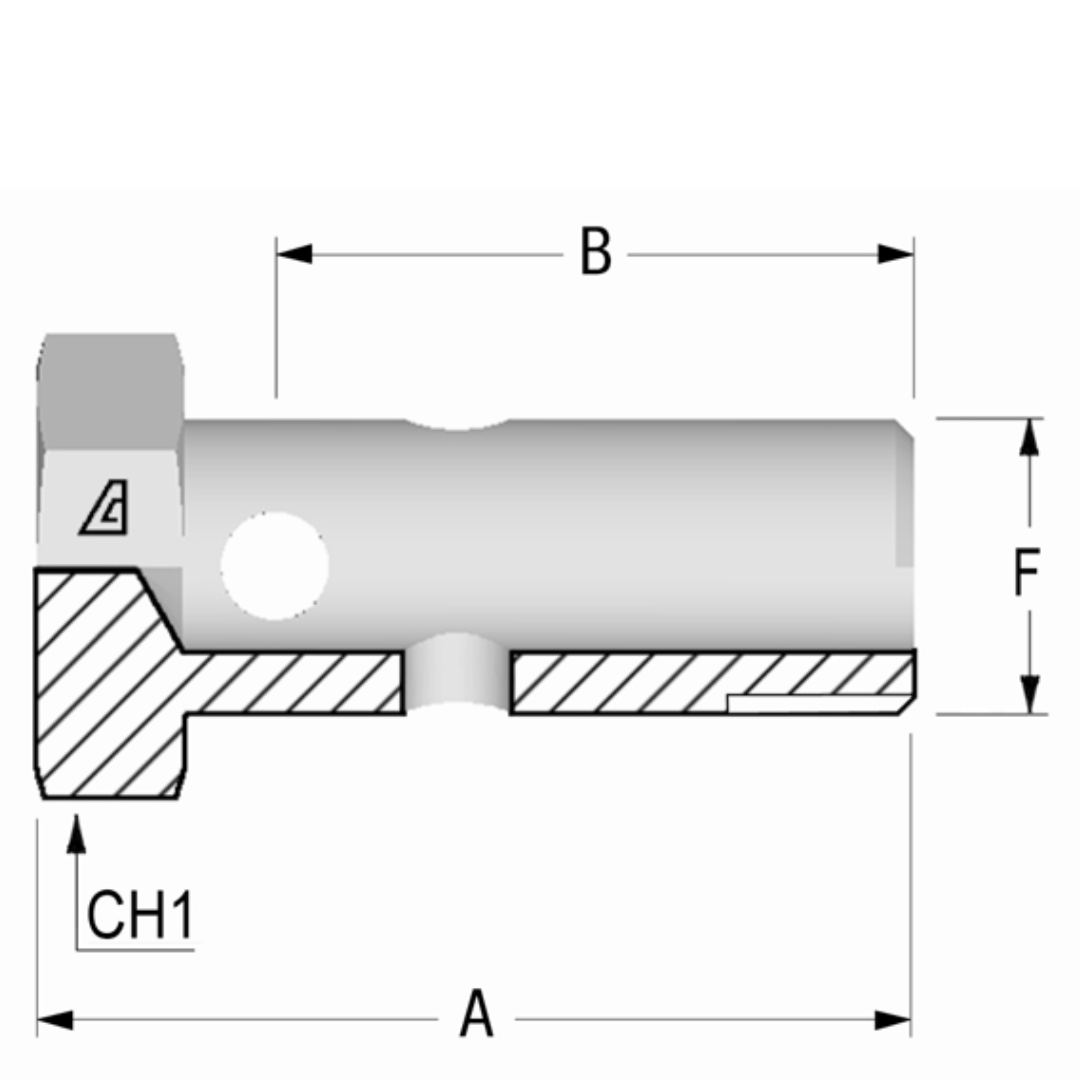

| Series | A-MBOLT |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 1.61 |
| Width | 0.75 |
| Weight | 0.08 |
| Side 2 Gender | Banjo |
| Side 2 Size | M14x1.5 |
| Side 2 Type | Bolt |
Description
The Alfagomma MBOLT Two-Piece Fittings are straight, carbon steel fittings designed to connect hoses to a system, with a hose end that attaches to a metric banjo bolt. These fittings are ideal for applications requiring secure and reliable hose connections. Ferrules are metal inserts that help securely attach the hose to the fitting, ensuring a tight seal and preventing leaks. The difference between two-piece and one-piece fittings is that two-piece fittings consist of separate components, typically a fitting and a ferrule, which makes installation and maintenance easier. On the other hand, one-piece fittings are single, solid units that must be replaced entirely if damaged. The MBOLT Two-Piece Fittings are suitable for use with wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings provide a versatile and reliable solution for industries that require high-performance hose connections.
