Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 77 Days |
| Factory Stock | 0 |
| Factory Location | Louisville, Kentucky |

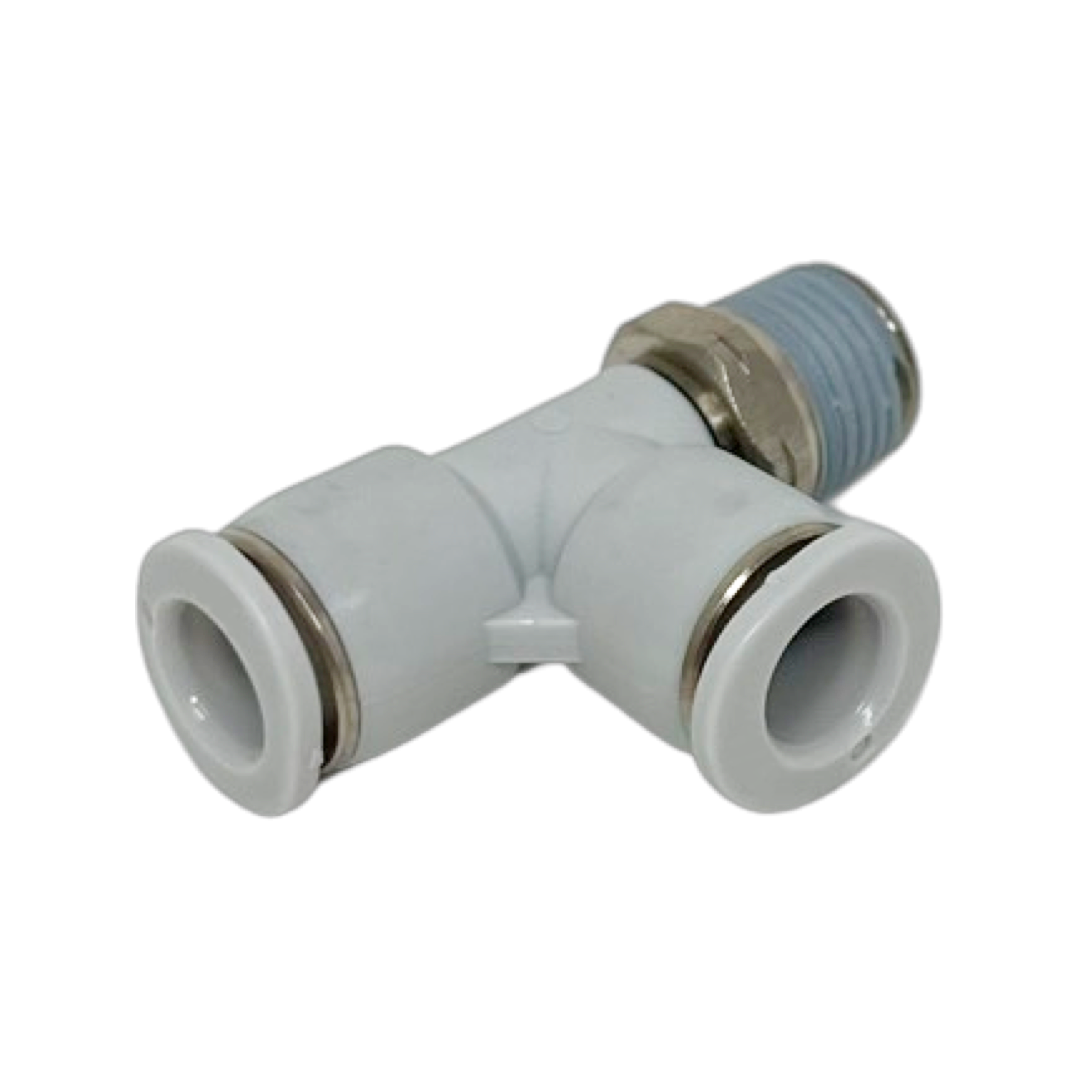

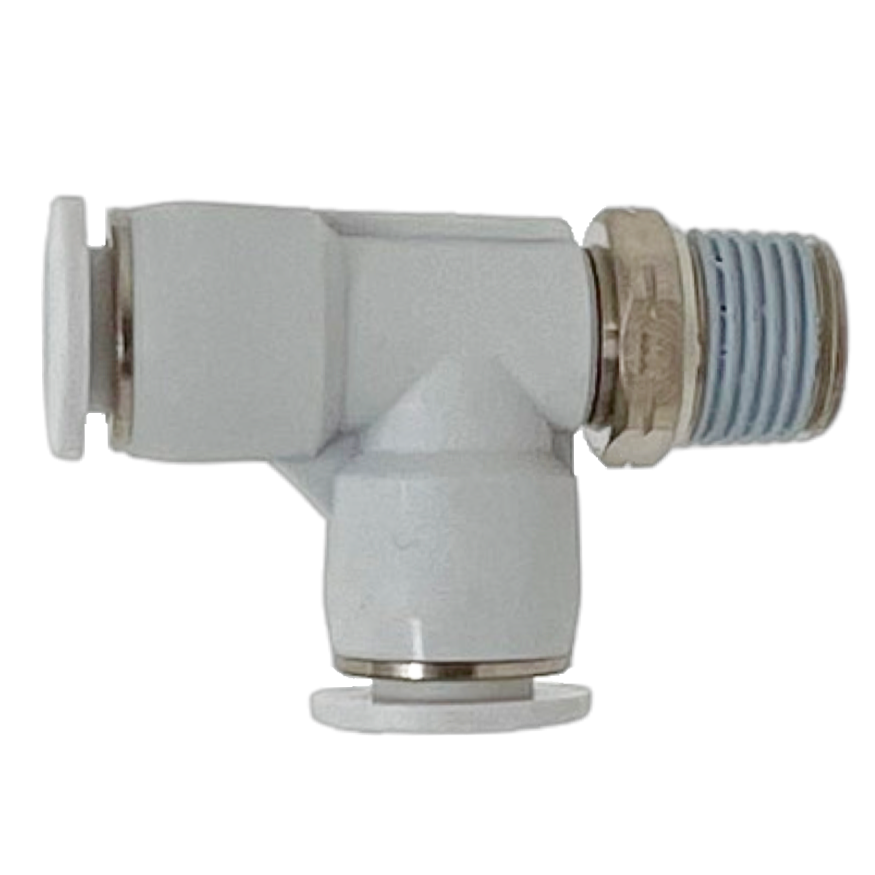

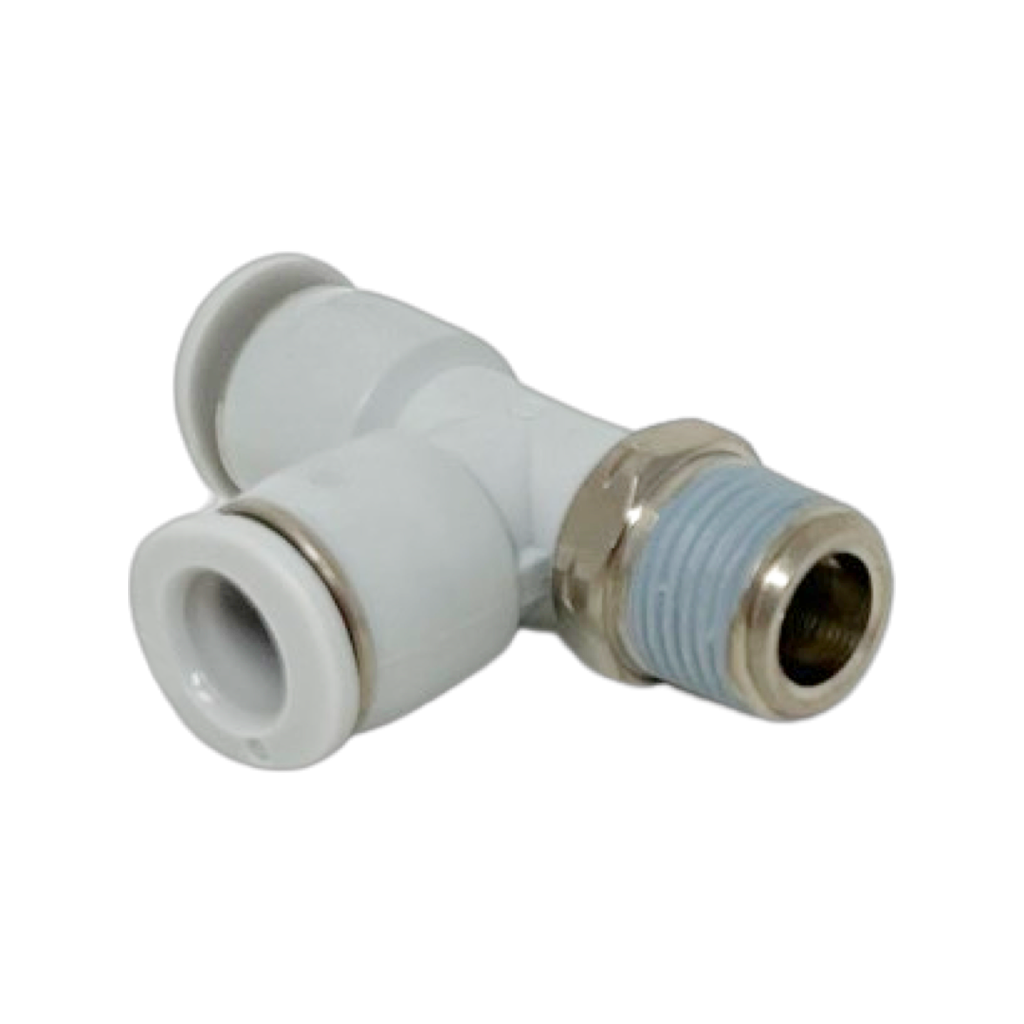

| Fitting Shape | Tee |
| Operating Temp Range | 32 to 140 F |
| Body Material | Plastic PBT |
| Series | Pneufit M |
| Country of Manufacture | United Kingdom |
| Side 1 Gender | Female |
| Side 1 Size | 0.125 (1/8") |
| Side 1 Type | Tube |
| Side 2 Gender | Male |
| Side 2 Size | 0.0625 (1/16") |
| Side 2 Type | NPT |
| Side 3 Gender | Female |
| Side 3 Size | 0.125 (1/8") |
| Side 3 Type | Tube |
Description
THIS ITEM IS ONLY AVAILABLE IN 10PC BOXES. Ready to use. Over 1,000 composite push-in pneumatic fittings. Releasable stainless-steel grab-ring to grip nylon or polyurethane tube (85 or 95 durometer). Nickel plated brass components. Pre applied thread sealant on all taper threads and recessed captive O-ring on parallel threads. Internal and external hexagons on straight fittings. Immediate quality sealing using silicone free U-packing. Mounting holes on all union fittings. Introducing Miniature Pneufit M an ultra compact alternative where space is at a premium
