Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Flow Regulator |
| Adjustment Type | Fixed, No Adjustment |
| Style | Spool |
| Flow Rating | 24.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | LLPC |
| Cartridge Cavity | #14 SAE |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 3.88 |
| Width | 2 |
| Weight | 2 |
Description

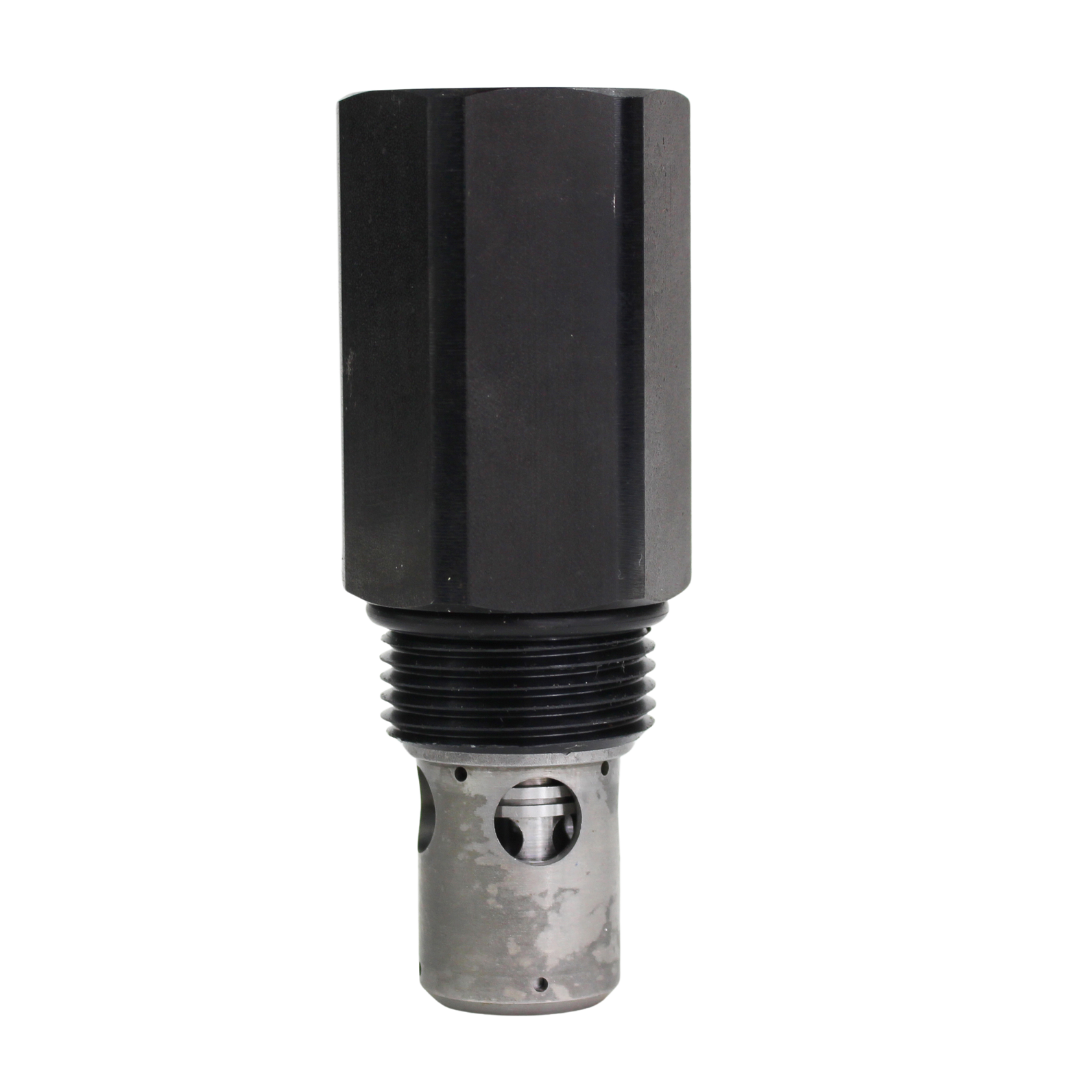

The Deltrol Fluid Products LLPC Flow Regulator is a fixed cartridge valve designed to maintain a consistent flow rate regardless of changes in load pressure. Ideal for low-flow applications, this pressure-compensated valve regulates flow by adjusting its internal spool to throttle or allow flow, ensuring precise flow control even with varying pressures. It features quick installation with a male outlet port for meter-in control and allows free flow in the reverse direction. Capable of handling up to 24 gpm and operating at pressures up to 3000 psi, it provides reliable performance across a wide temperature range of -30°F to +250°F. This valve is suitable for mineral-based fluids and offers quiet operation and accuracy in flow regulation.
