Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Grand Rapids, Michigan |
| Port Size | 7/16-20 (-04) ORB Load Sense & Control Line |
| Shaft Size | 1.75" Bore x 7/16" Key |
| Shaft Type | Keyed |
| Port Location | Side Ported |
| O Ring Seals | Nitrile Seals with Viton Shaft Seals |
| Pressure Rating | 4640 |
| Rotation | Clockwise |
| Displacement | 200 |
| Gpm At 1800 Rpm | 94.8 |
| Max Speed | 2200 |
| Inlet Port | 3" Code 61 |
| Outlet Port | 1.5" Code 62 |
| Pump Control | Pressure Cut-Off |
| Circuit Type | Open Circuit |
| Drain Port | 1-1/16-12 (-12) ORB |
| Series | K3VL200H |
| Country of Manufacture | Japan |
| Height | 14 |
| Length | 19.34 |
| Width | 11 |
| Weight | 287 |
Description

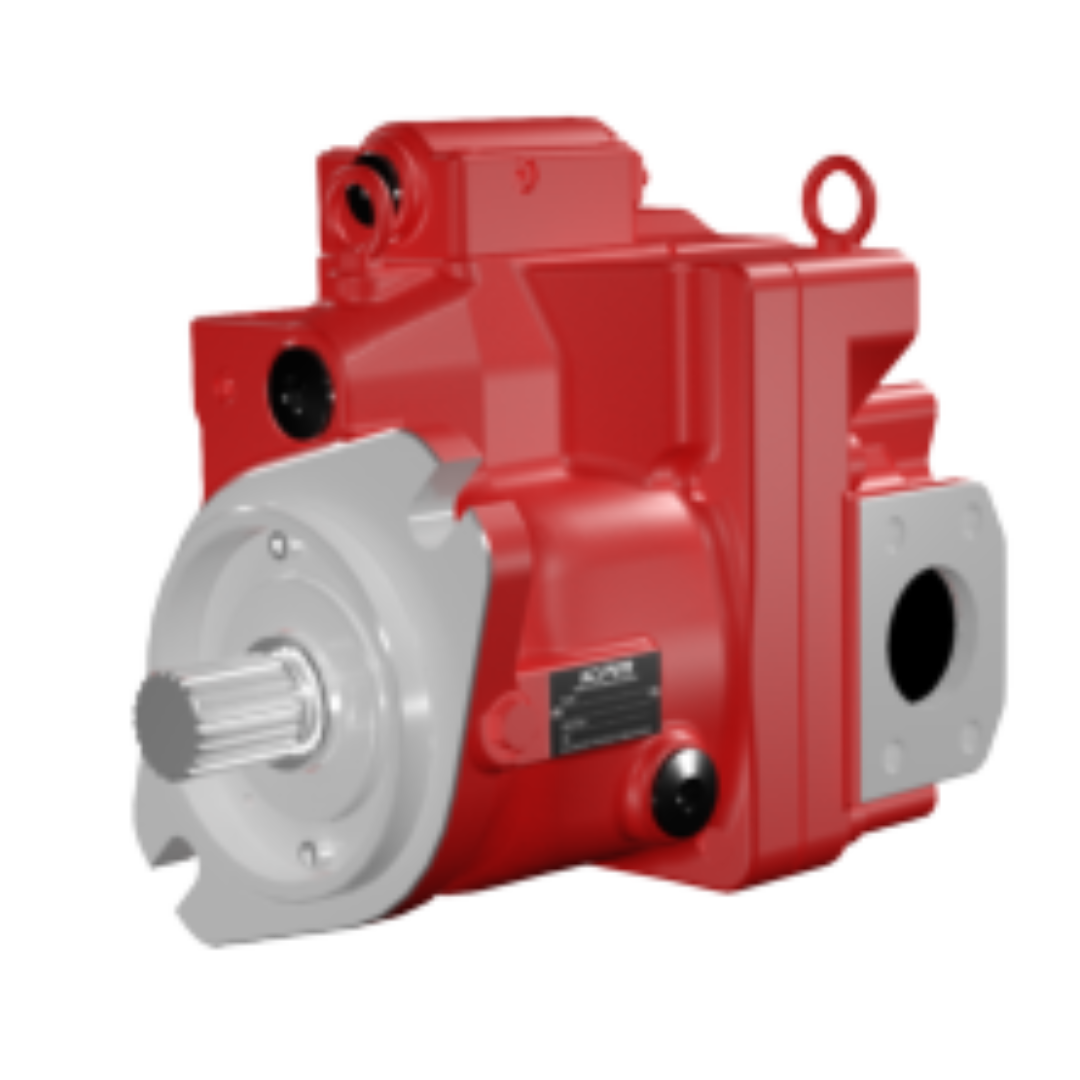

The Kawasaki K3VL200H Piston Pump is a high-performance, variable displacement hydraulic pump designed for demanding marine, mobile, and industrial applications. With a 200cc (12.2 in³) capacity, this medium to high-pressure pump delivers up to 4640 psi of continuous pressure and features a maximum self-priming speed of 2200 RPM. The K3VL200H is equipped with advanced control options such as load sensing, torque limiting, and electronic displacement control, ensuring efficient operation and precise flow adjustments under varying load conditions. Known for its durability and reliability, the K3VL200H is an open-circuit, axial piston pump that offers exceptional performance for systems requiring adjustable flow rates and robust hydraulic capabilities.
