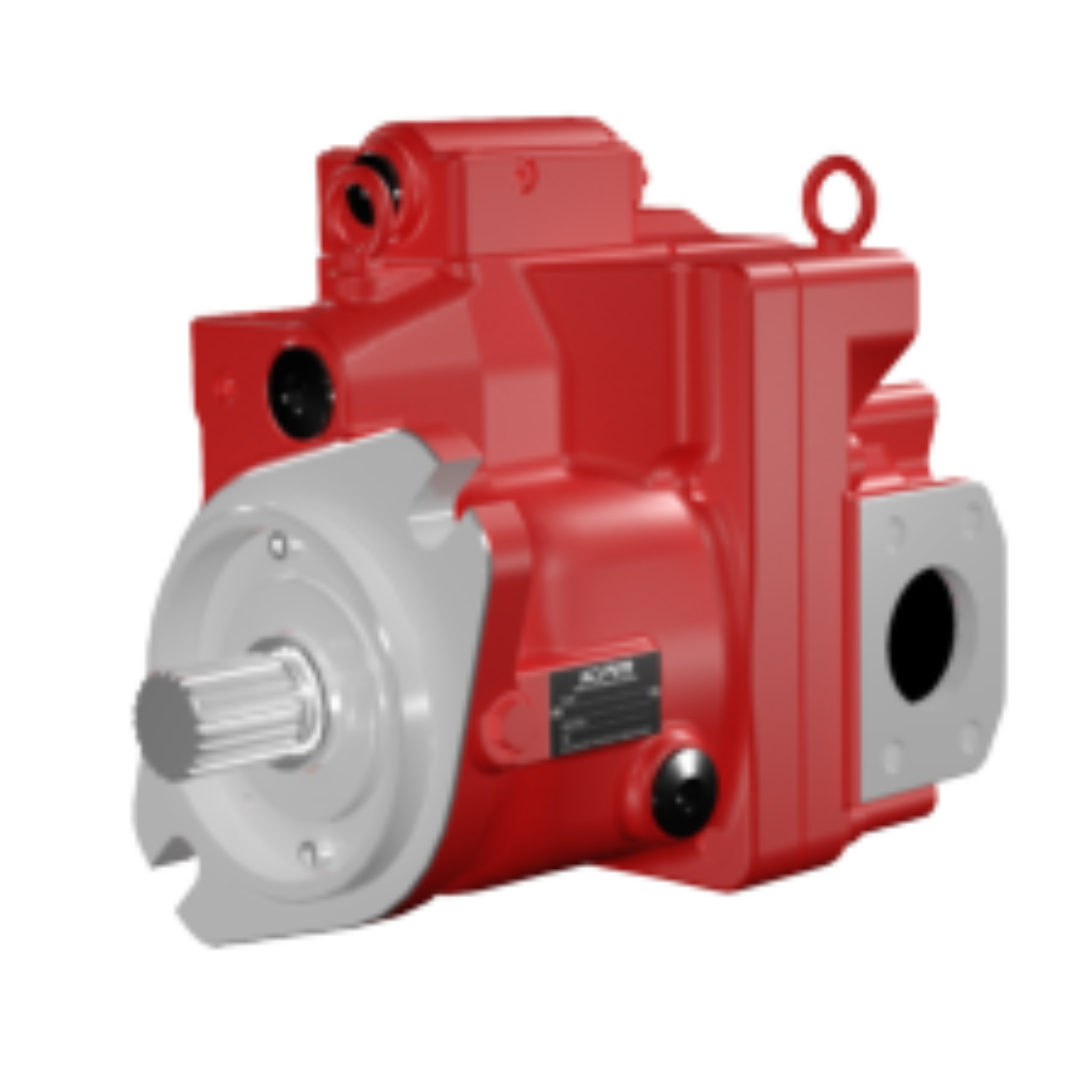

K3VL200H/B-1BLKS-P0 : Kawasaki Variable Displacement Open Circuit Piston Pump, 200cc, 4640psi, 2200RPM, Counter-Clockwise, Side Ported, SAE E 4-Bolt Mount, 1.75" Bore x 7/16" Key Shaft, with SAE-B 13T 16/32 DP Through Drive
Roll over image to zoom in Click on image to zoom
K3VL200H/B-1BLKS-P0 : Kawasaki Variable Displacement Open Circuit Piston Pump, 200cc, 4640psi, 2200RPM, Counter-Clockwise, Side Ported, SAE E 4-Bolt Mount, 1.75" Bore x 7/16" Key Shaft, with SAE-B 13T 16/32 DP Through Drive

K3VL200H/B-1BLKS-P0 : Kawasaki Variable Displacement Open Circuit Piston Pump, 200cc, 4640psi, 2200RPM, Counter-Clockwise, Side Ported, SAE E 4-Bolt Mount, 1.75" Bore x 7/16" Key Shaft, with SAE-B 13T 16/32 DP Through Drive

Save $8,478.01
KawasakiSKU: K3VL200H/B-1BLKS-P0
4-6 Weeks
Price:
$9,890.99 $18,369.00

Product Details

Data Sheet Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Grand Rapids, Michigan
Port Size 7/16-20 (-04) ORB Load Sense & Control Line
Shaft Size 1.75" Bore x 7/16" Key
Shaft Type Keyed
Port Location Side Ported
O Ring Seals Nitrile Seals with Viton Shaft Seals
Pressure Rating 4640
Rotation Counter-Clockwise
Displacement 200
Gpm At 1800 Rpm 94.8
Max Speed 2200
Inlet Port 3" Code 61
Outlet Port 1.5" Code 62
Pump Control Pressure Cut-Off
Circuit Type Open Circuit
Drain Port 1-1/16-12 (-12) ORB
Series K3VL200H
Country of Manufacture Japan
Height 14
Length 21.39
Width 11
Weight 287

Description

The Kawasaki K3VL200H Piston Pump is a high-performance, variable displacement hydraulic pump designed for demanding marine, mobile, and industrial applications. With a 200cc (12.2 in³) capacity, this medium to high-pressure pump delivers up to 4640 psi of continuous pressure and features a maximum self-priming speed of 2200 RPM. The K3VL200H is equipped with advanced control options such as load sensing, torque limiting, and electronic displacement control, ensuring efficient operation and precise flow adjustments under varying load conditions. Known for its durability and reliability, the K3VL200H is an open-circuit, axial piston pump that offers exceptional performance for systems requiring adjustable flow rates and robust hydraulic capabilities.
