Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Grand Rapids, Michigan |
| Port Size | 7/16-20 (-04) ORB Load Sense & Control Line |
| Shaft Size | 13T 8/16 DP |
| Shaft Type | Splined |
| Port Location | Side Ported |
| O Ring Seals | Nitrile Seals with Viton Shaft Seals |
| Pressure Rating | 4640 |
| Rotation | Counter-Clockwise |
| Displacement | 200 |
| Gpm At 1800 Rpm | 94.8 |
| Max Speed | 1900 |
| Inlet Port | 3" Code 61 |
| Outlet Port | 1.5" Code 62 |
| Pump Control | Pressure Cut-Off |
| Circuit Type | Open Circuit |
| Drain Port | 1-1/16-12 (-12) ORB |
| Series | K3VL200 |
| Country of Manufacture | Japan |
| Height | 14 |
| Length | 17.759999999999998 |
| Width | 10.5 |
| Weight | 210 |
Description

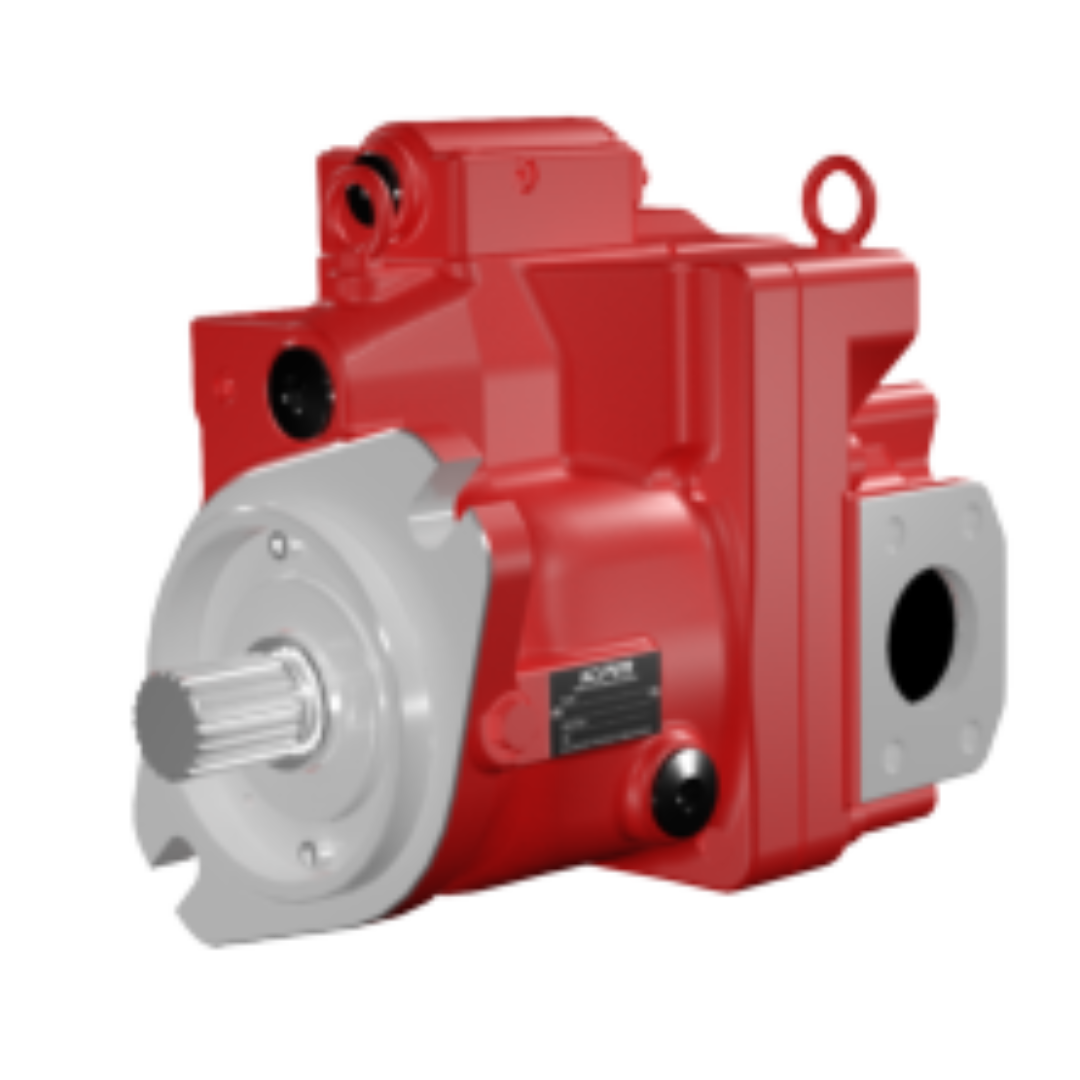

The Kawasaki K3VL200 Piston Pump is a high-performance, variable displacement hydraulic pump designed for demanding marine, mobile, and industrial applications. With a 200cc (12.2 in³) capacity, this medium to high-pressure pump provides up to 4640 psi of continuous pressure and features a maximum self-priming speed of 1900 RPM. It comes with advanced control options including load sensing, torque limiting, and electronic displacement control, ensuring efficient operation under varying load conditions. The K3VL200 is an open-circuit, axial piston pump known for its durability and reliability, making it the ideal choice for systems requiring adjustable flow rates and robust hydraulic performance.
