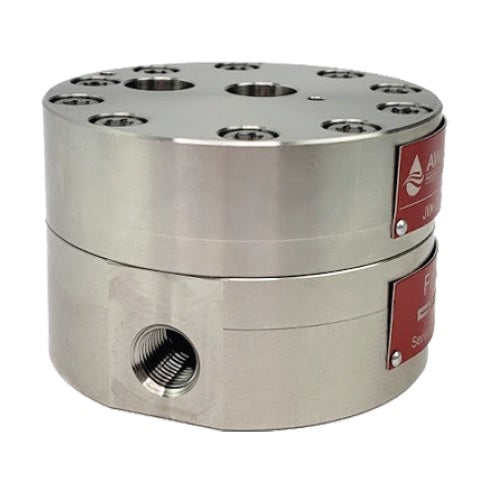

JVS01UFTNS : AW-Lake 5000psi 316L Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.25 (1/4") NPT Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.25 GPM
JVS01UFTNS : AW-Lake 5000psi 316L Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.25 (1/4") NPT Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.25 GPM
Roll over image to zoom in Click on image to zoom
JVS01UFTNS : AW-Lake 5000psi 316L Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.25 (1/4") NPT Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.25 GPMJVS01UFTNS : AW-Lake 5000psi 316L Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.25 (1/4") NPT Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.25 GPM

JVS01UFTNS : AW-Lake 5000psi 316L Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.25 (1/4") NPT Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.25 GPM

Save $336.01
AW-LakeSKU: JVS01UFTNS
3-4 Weeks
Price:
$4,040.99 $4,377.00

Product Details

Data Sheet
O Ring Seals PTFE o-ring
Pressure Rating 5000
Series JV-UF
Electrical Connection 2x M14x1.5
Country of Manufacture United States
Height 3.3
Length 3.2
Width 3.3
Weight 3.6

Description

The JV-UF is designed for low viscosity fluids (solvents, scale inhibitor, methanol, DEF) thanks to the exceptionally tight clearances around the gears which prevent fluid from slipping past. This meter can measure very low flow rates (as low as 0.0005 gpm with a 5cP fluid and as high as 20 gpm).Applications include: Chemical injection, Fuel injection and dosing systems, Test stands, Hydraulic positioning systems, Coolant and lubrication monitoring.
