JVM12BBTNS : AW-Lake 6000psi 303 Stainless Steel / DIN 1.4305 Positive Displacement Gear Flow Meter, 0.25 (1/4") NPT Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.8 GPM

Save $161.01
3-4 Weeks

Sale price$1,943.99 Regular price$2,105.00

Product Details

Data Sheet
O Ring Seals PTFE o-ring
Pressure Rating 6000
Series JV-BB
Electrical Connection 2x M14x1.5
Country of Manufacture United States
Height 3
Length 2.9
Width 3
Weight 3.6

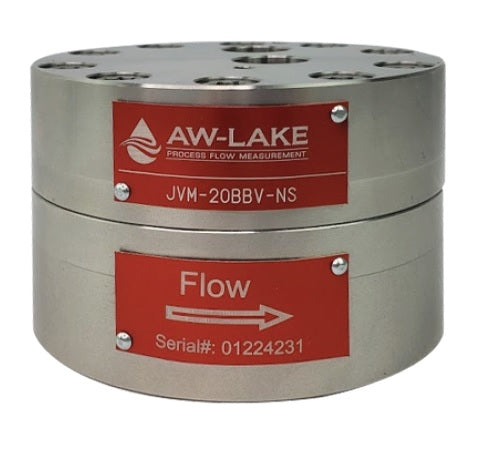

The JV-BB Positive Displacement Flow Meter is part of AW-Lake’s Next-Generation line of Gear Meters and is the result of decades of experience, listening to customers and extensive and diligent study of the latest technologies available. These high performance flow meters have tighter machining tolerances, higher resolution, higher pressure rating, and improved accuracy over their predecessor the JV-KG meter and as a result, reduce operational costs. This meter maintains high accuracy and repeatability, despite changing viscosity conditions, up to +/-0.25 percent accuracy with select sensors. Applications well suited to the JV-BB meters include chemical injection & dosing systems, fuel measurement, test stands, hydraulic positioning systems, and coolant & lubrication monitoring.
