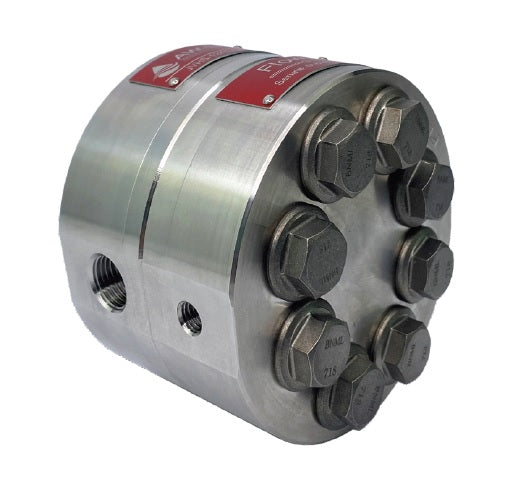

JVHS30BBVAS : AW-Lake 15000psi 316 Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.375 (3/8") MP AUTOCLAVE Process Port, 2x M14x1.5 Electrical Port, 0.1 to 7.0 GPM

Save $285.01
AW-LakeSKU: JVHS30BBVAS
3-4 Weeks

Price:
Sale price$3,425.99 Regular price$3,711.00

Product Details

Data Sheet
O Ring Seals FKM o-ring
Pressure Rating 15000
Series JV-UF
Electrical Connection 2x M14x1.5
Country of Manufacture United States
Height 3.7
Length 3.6
Width 3.7
Weight 8.6

Description

Designed for use in systems rated up to 15,000 psi (1035 bar), the JVH meters are well suited for oils, fuels, additives, and chemicals in hazardous areas. JVH meters come standard with inconel bolts for added strength and better corrosion resistance. The internal design has reduced space between the gears and measuring chamber to reduce slippage and improve the low flow performance of the meter.Applications include: Offshore production platforms, i.e. chemical injection, Hydraulic power units, Gas dehydration systems, Chemical processing plants.
