JVHS12BBVAB : AW-Lake 15000psi 316 Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.375 (3/8") MP AUTOCLAVE Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.8 GPM
JVHS12BBVAB : AW-Lake 15000psi 316 Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.375 (3/8") MP AUTOCLAVE Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.8 GPM
JVHS12BBVAB : AW-Lake 15000psi 316 Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.375 (3/8") MP AUTOCLAVE Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.8 GPM
Roll over image to zoom in Click on image to zoom
JVHS12BBVAB : AW-Lake 15000psi 316 Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.375 (3/8") MP AUTOCLAVE Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.8 GPMJVHS12BBVAB : AW-Lake 15000psi 316 Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.375 (3/8") MP AUTOCLAVE Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.8 GPMJVHS12BBVAB : AW-Lake 15000psi 316 Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.375 (3/8") MP AUTOCLAVE Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.8 GPM

JVHS12BBVAB : AW-Lake 15000psi 316 Stainless Steel / DIN 1.4404 Positive Displacement Gear Flow Meter, 0.375 (3/8") MP AUTOCLAVE Process Port, 2x M14x1.5 Electrical Port, 0.005 to 0.8 GPM

AW-LakeSKU: JVHS12BBVAB
3-4 Weeks
Price:
$3,179.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet
O Ring Seals PTFE o-ring
Pressure Rating 15000
Series JV-UF
Electrical Connection 2x M14x1.5
Country of Manufacture United States
Height 3.7
Length 3.6
Width 3.7
Weight 7.5

Description

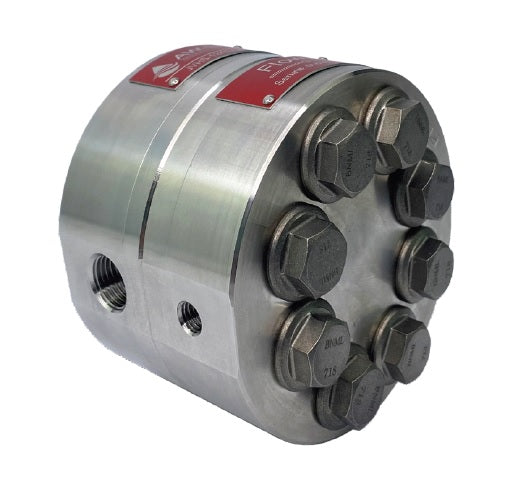

Designed for use in systems rated up to 15,000 psi (1035 bar), the JVH meters are well suited for oils, fuels, additives, and chemicals in hazardous areas. JVH meters come standard with inconel bolts for added strength and better corrosion resistance. The internal design has reduced space between the gears and measuring chamber to reduce slippage and improve the low flow performance of the meter.Applications include: Offshore production platforms, i.e. chemical injection, Hydraulic power units, Gas dehydration systems, Chemical processing plants.
