Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Ventura, California |
| Fitting Shape | Tee |
| Material | 316 Stainless Steel |
| Pressure Rating | 6600 |
| Series | IFC |
| Country of Manufacture | South Korea |
| Side 1 Gender | Female |
| Side 1 Size | 1/4-18 (-4N) |
| Side 1 Type | NPT |
| Side 2 Gender | Female |
| Side 2 Size | 1/4-18 (-4N) |
| Side 2 Type | NPT |
| Side 3 Gender | Female |
| Side 3 Size | 1/4-18 (-4N) |
| Side 3 Type | NPT |
| Side 4 Gender | Female |
| Side 4 Size | 1/4-18 (-4N) |
| Side 4 Type | NPT |
Description

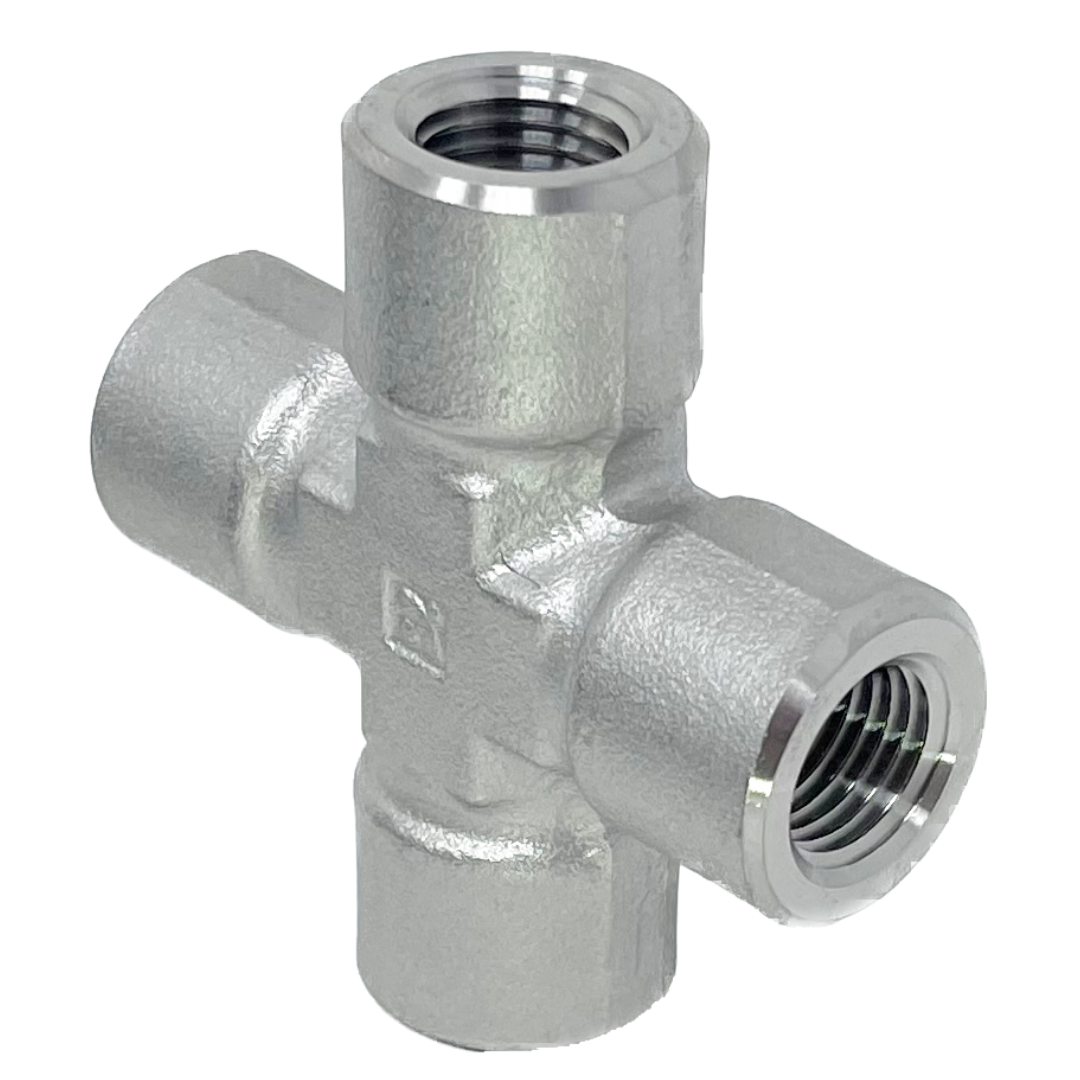

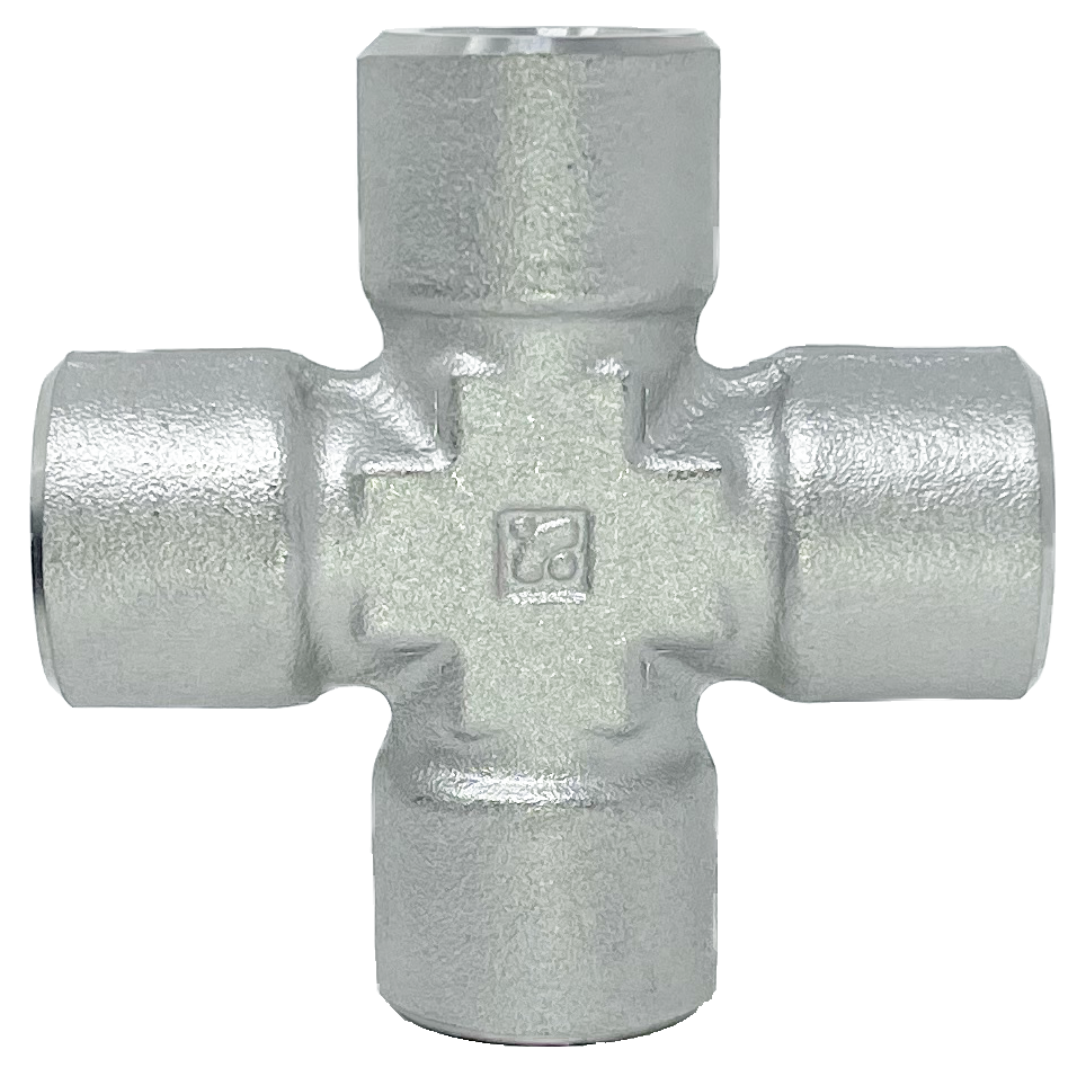

The Series IFC Female NPT Cross Union is a high-quality instrumentation fitting designed to connect four sections of piping or tubing in a T-shaped configuration. Made from durable 316 stainless steel, this cross union features four female NPT (National Pipe Tapered) connections, providing a secure, leak-proof seal for fluid or gas transfer. Commonly used in complex fluid systems, such as those in the chemical, aerospace, and oil & gas industries, the Series IFC cross union offers exceptional performance in high-pressure and demanding environments. The precision-machined connections ensure reliable and efficient flow control, making this fitting ideal for applications requiring tight, durable, and long-lasting seals in instrumentation systems.
