Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 6 Weeks |
| Factory Location | Finland |
| Horsepower | 3k kVA 1Ph/6 kVA 3Ph |
| Flow Rating | 14 |
| Pressure Rating | 3000 |
| Inlet Flow Rate | 5.5 |
| Operating Temp Range | Up to 158F |
| Inlet Port | 0.5 (1/2") BSP |
| Outlet Port | 0.5 (1/2") BSP |
| Voltage | 230 1Ph/400 VAC 3Ph |
| Series | HWG-IP23 |
| Protection Class | IP23 |
| Country of Manufacture | Finland |
| Height | 14.4 |
| Length | 21.1 |
| Width | 8.35 |
| Weight | 112 |
Description

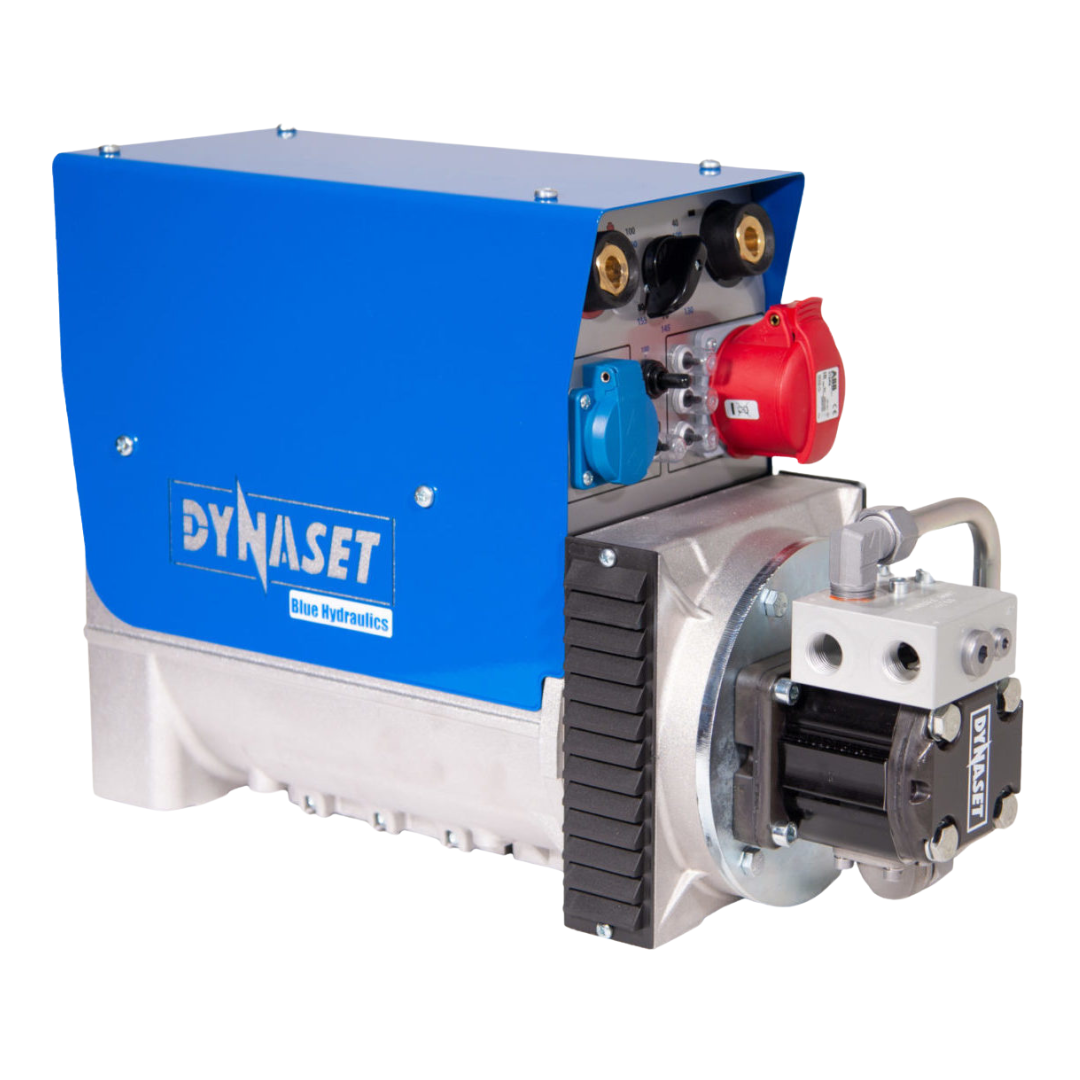

The Dynaset HWG Hydraulic Welding Generator converts the hydraulic power of a mobile machine, vehicle, or vessel into both welding current and auxiliary electricity. This innovative generator eliminates the need for a diesel engine, allowing it to fit into compact spaces and simplifying installation on various hydraulic systems. Benefits include readiness for immediate use, space and resource savings, and a small carbon footprint. The HWG offers high-quality welding current from 180 to 400 amps and auxiliary AC power from 6 to 10 kVA. Features include a compact and silent hydraulic motor, automatic welding current and voltage control, overload protection, and safety features such as a residual current circuit breaker. Its design is maintenance-free, lightweight, and efficient, with no additional engine, fuel tank, or exhaust pipe required.
