|Usually Ships Within||16-18 Weeks|
|Factory Location||Elgin, Illinois|
|Data Sheet||Click here to download|
|Material||Aluminum body, Cast Iron Flange and Cover|
|Pump Shaft Size||13T 16/32DP|
|Gpm At 1800 Rpm||28.99|
|Inlet Port||#24 SAE (1.5")|
|Outlet Port||#12 SAE (3/4")|
|Mount||SAE B 2-Bolt|
|Country of Manufacture||Italy|

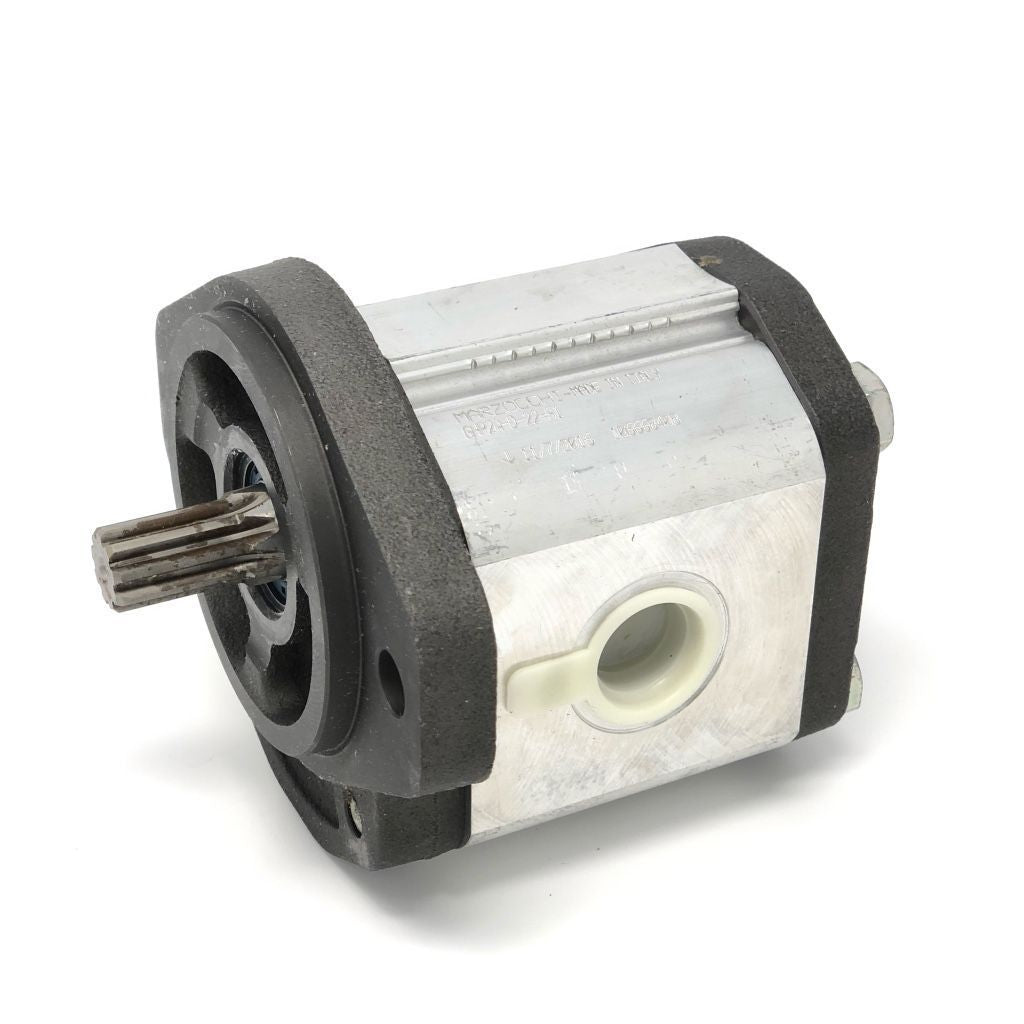

Marzocchi GHP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The body of the pump is made of special high-resistant extruded aluminum alloy, while the flange and cover are made of spheroidal cast iron. This ensures minimized deformation when subject to high pressures. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
