GHP3A-D-94-S1-FA : Marzocchi Gear Pump, CW, 61cc (3.721in3), 28.99 GPM, 3045psi, 2800 RPM, #24 SAE (1.5") In, #12 SAE (3/4") Out, Splined Shaft 13T 16/32DP, SAE B 2-Bolt Mount

MarzocchiSKU: GHP3A-D-94-S1-FA
16-18 Weeks

Sale price$548.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Cast Iron Flange and Cover
Shaft Size 13T 16/32DP
Shaft Type Splined
Pressure Rating 3045
Rotation Clockwise
Displacement 61
Gpm At 1800 Rpm 28.99
Max Speed 2800RPM
Inlet Port #24 SAE (1.5")
Outlet Port #12 SAE (3/4")
Mount SAE B 2-Bolt
Country of Manufacture Italy
Height 6.14
Length 6.85
Width 6.24

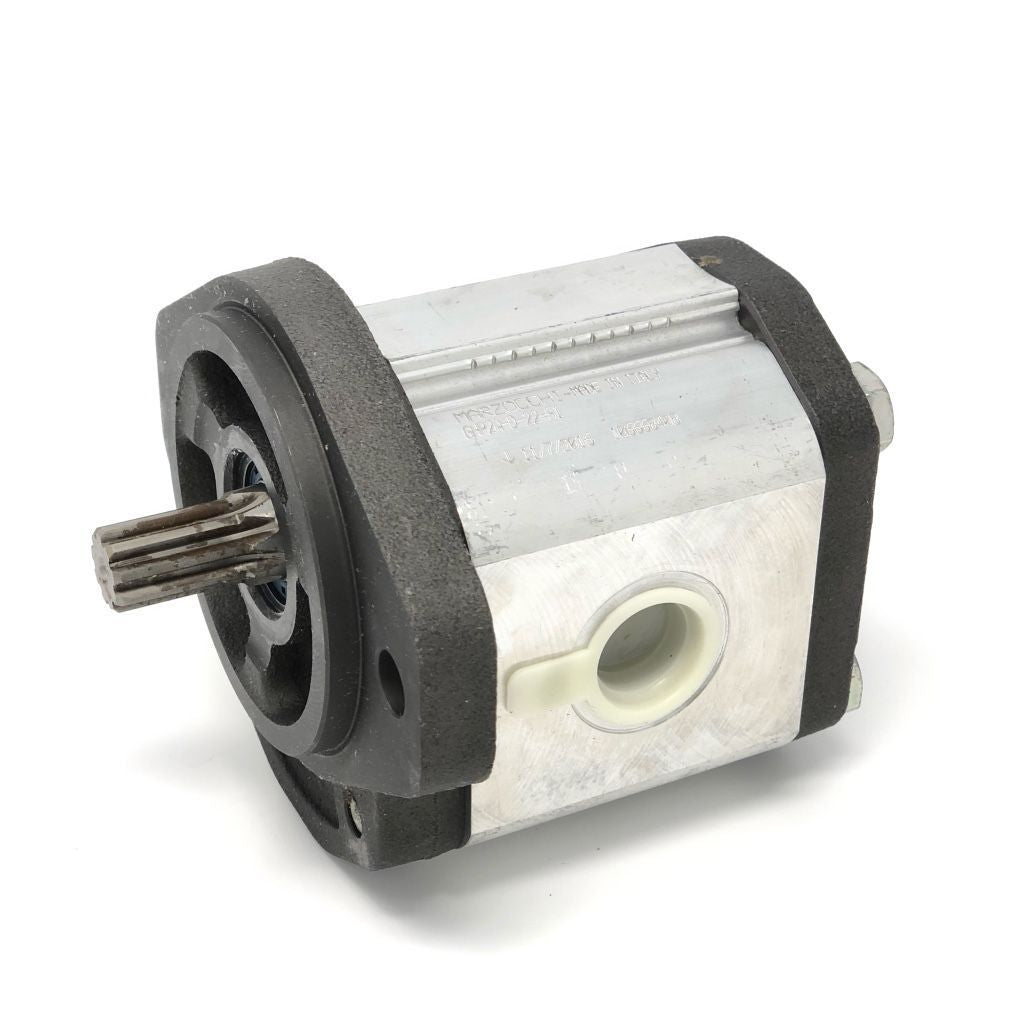

Marzocchi GHP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The body of the pump is made of special high-resistant extruded aluminum alloy, while the flange and cover are made of spheroidal cast iron. This ensures minimized deformation when subject to high pressures. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
