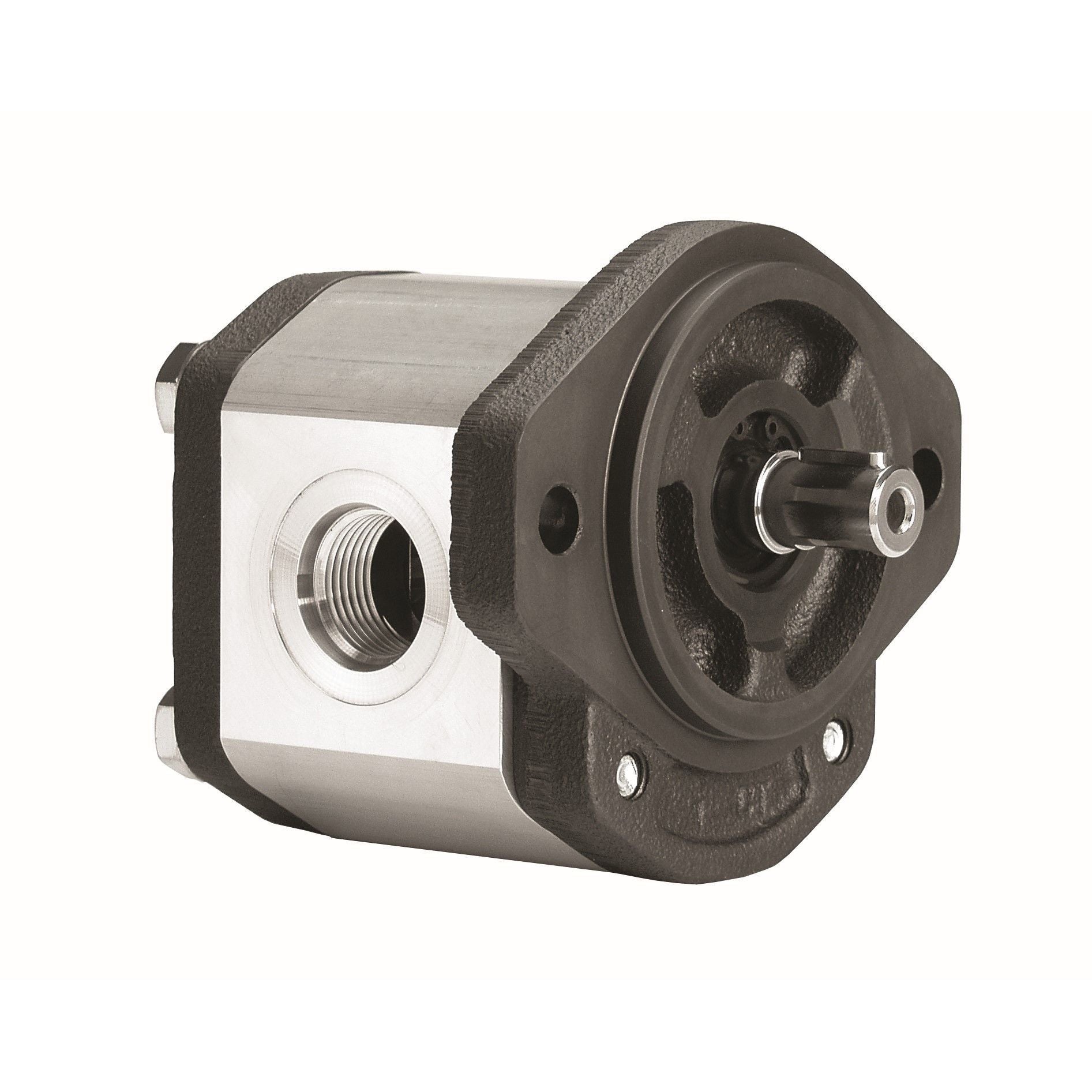

GHP2A-D-6 : Marzocchi Gear Pump, CW, 4.5cc (0.2745in3), 2.14 GPM, 4060psi, 4000 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Keyed Shaft 5/8" Bore x 5/32" Key, SAE A 2-Bolt Mount

MarzocchiSKU: GHP2A-D-6
16-18 Weeks

Price:
Sale price$273.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Cast Iron Flange and Cover
Shaft Size 5/8" Bore x 5/32" Key
Shaft Type Keyed
Pressure Rating 4060
Rotation Clockwise
Displacement 4.5
Gpm At 1800 Rpm 2.14
Max Speed 4000RPM
Inlet Port #12 SAE (3/4")
Outlet Port #10 SAE (5/8")
Mount SAE A 2-Bolt
Country of Manufacture Italy
Height 4.02
Length 5.12
Width 3.68

Description

Marzocchi GHP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The body of the pump is made of special high-resistant extruded aluminum alloy, while the flange and cover are made of spheroidal cast iron. This ensures minimized deformation when subject to high pressures. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
