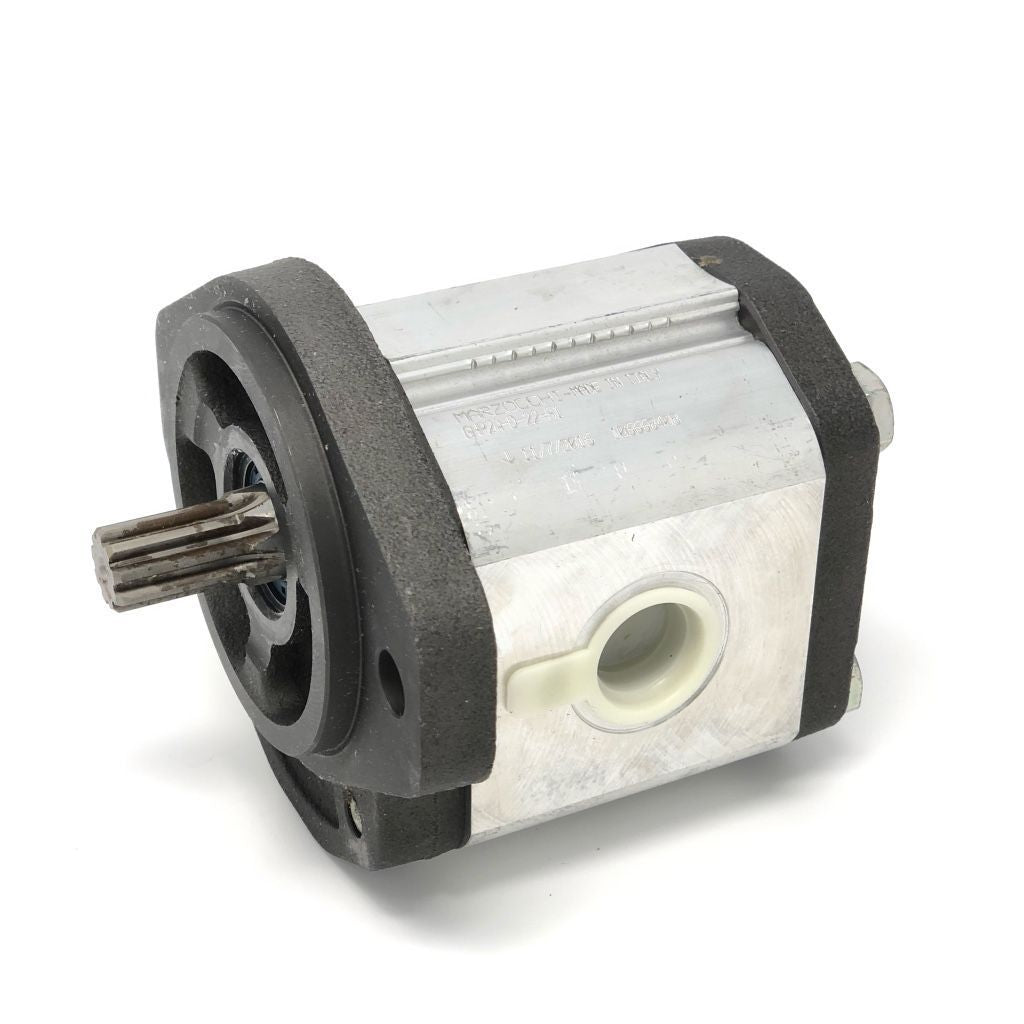

GHP2A-D-34-S1 : Marzocchi Gear Pump, CW, 23.7cc (1.4457in3), 11.27 GPM, 3335psi, 2000 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Splined Shaft 9T 16/32DP, SAE A 2-Bolt Mount

MarzocchiSKU: GHP2A-D-34-S1

Same Day

Product Details

Usually Ships Within Same Day
Factory Location Elgin, Illinois
Data Sheet Click here to download
Material Aluminum body, Cast Iron Flange and Cover
Pump Shaft Size 9T 16/32DP
Shaft Type Splined
Pressure Rating 3335
Rotation Clockwise
Displacement 23.7
Gpm At 1800 Rpm 11.27
Max Speed 2000RPM
Inlet Port #12 SAE (3/4")
Outlet Port #10 SAE (5/8")
Mount SAE A 2-Bolt
Country of Manufacture Italy
Height 4.02
Length 5.12
Width 4.86
