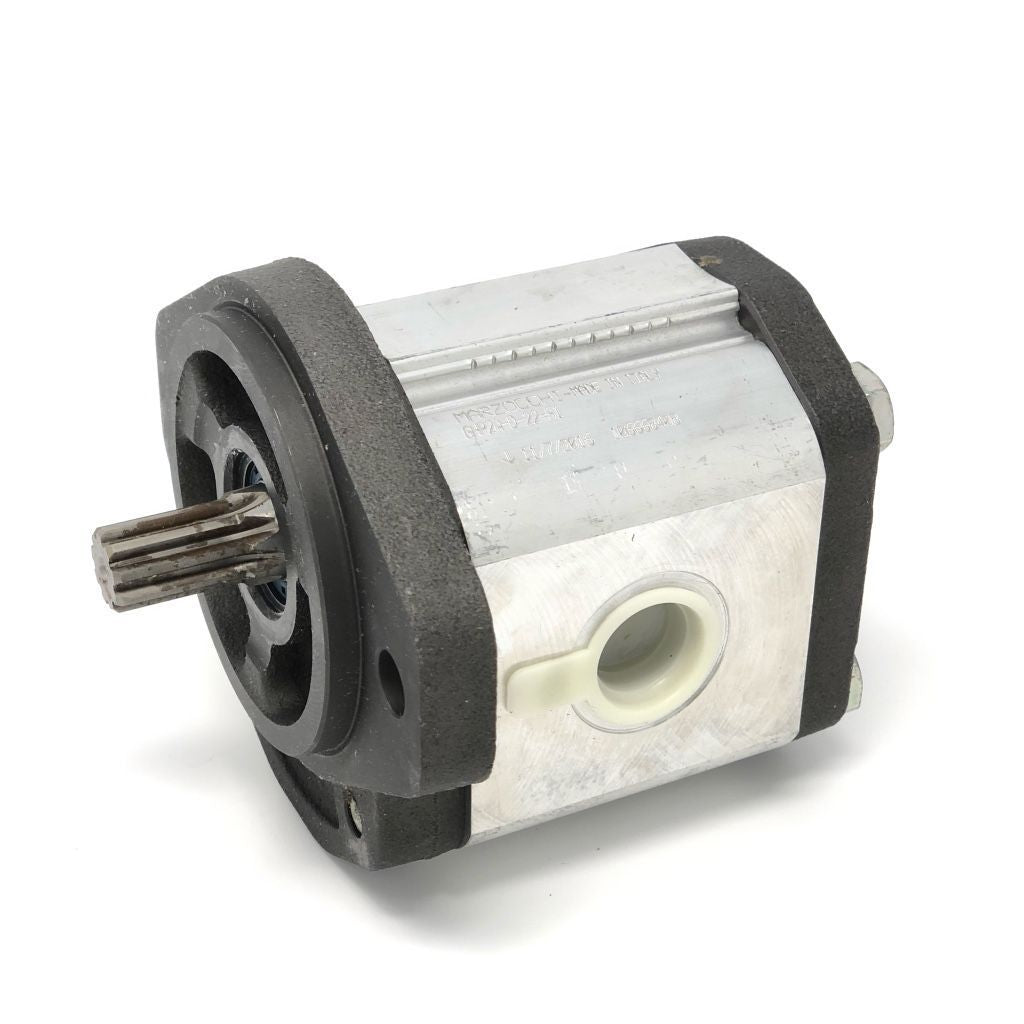

GHP2A-D-20-S1 : Marzocchi Gear Pump, CW, 14.1cc (0.8601in3), 6.7 GPM, 3770psi, 3200 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Splined Shaft 9T 16/32DP, SAE A 2-Bolt Mount

MarzocchiSKU: GHP2A-D-20-S1

1-3 Days

Product Details

Usually Ships Within 1-3 Days
Factory Stock 50
Factory Location Elgin, Illinois
Data Sheet Click here to download
Material Aluminum body, Cast Iron Flange and Cover
Pump Shaft Size 9T 16/32DP
Shaft Type Splined
Pressure Rating 3770
Rotation Clockwise
Displacement 14.1
Gpm At 1800 Rpm 6.7
Max Speed 3200RPM
Inlet Port #12 SAE (3/4")
Outlet Port #10 SAE (5/8")
Mount SAE A 2-Bolt
Country of Manufacture Italy
Height 4.02
Length 5.12
Width 4.27
