Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 16-Weeks |
| Factory Location | Illinois |
| Material | Aluminum Body Cast Iron Flange And Cover |
| Type | Reversible Motor |
| Shaft Size | 7/8" Bore x 1/4" Key |
| Shaft Type | Keyed |
| Rotation | Bidirectional |
| Displacement | 33 (cc) |
| Max Speed | 3300 RPM |
| Inlet Port | 1" Code 61 |
| Outlet Port | 1" Code 61 |
| Mount | SAE B 2-Bolt |
| Motor Pressure Rating | 3915 |
| Country of Manufacture | Italy |
| Height | 5.83 |
| Length | 7.01 |
| Width | 6.85 |

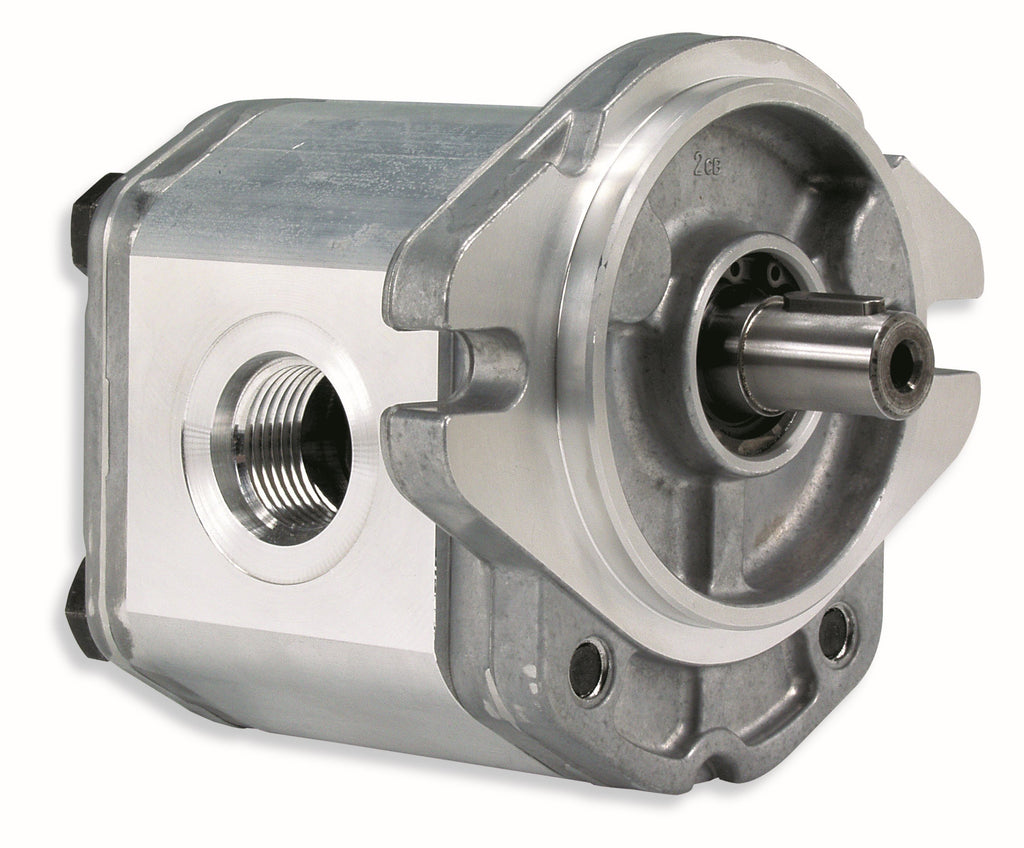

Description
Marzocchi Gear Motors may be unidirectional or bidirectional and manufactured in three different size groups. A very good power to weight ratio and power to size ratio allows for a wide range of displacements within each group (between 2.8 and 87cc per revolution. The drain is always external and it is through a thread port on the cover.
