Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | 90-Degrees |
| Pressure Rating | 6000 |
| Country of Manufacture | India |
| Side 1 Gender | FEMALE |
| Side 1 Size | 11/16-16 (-06) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | ORB |
Description

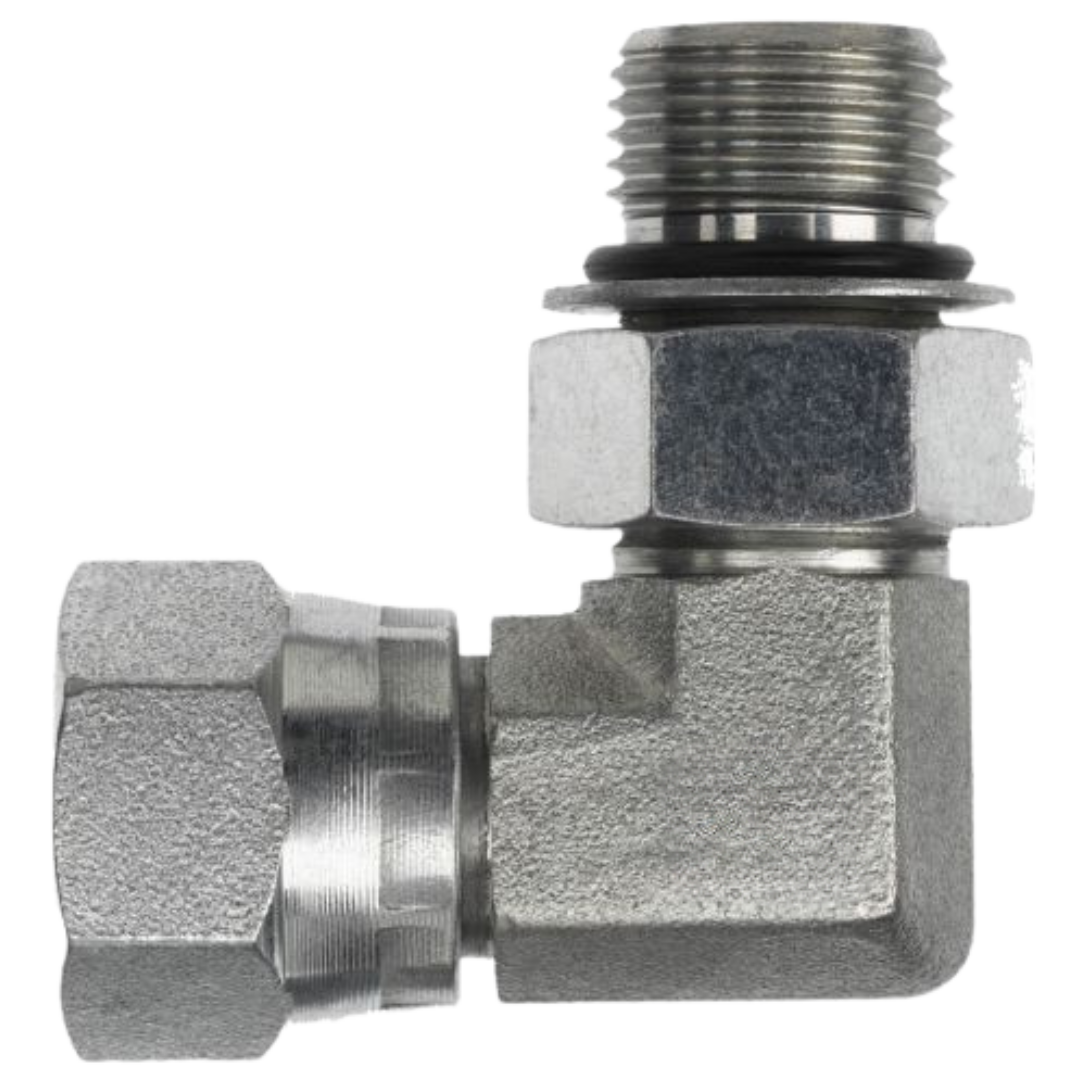

The Series FS6809-NWO 90-Degree Angled Female ORFS Swivel x Male Adjustable ORB adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for routing hoses and pipes efficiently in tight or confined spaces. One end is equipped with a female ORFS (O-Ring Face Seal) swivel connection, which provides a reliable, leak-tight seal through the compression of an O-ring, while the other end has a male Adjustable ORB (O-Ring Boss) connection, ensuring an adjustable, leak-tight seal by compressing an O-ring into the port's chamfer. Made from durable carbon steel, the Series FS6809-NWO offers exceptional strength, corrosion resistance, and long-lasting performance in high-pressure fluid power systems, making it an excellent choice for industrial applications requiring secure, reliable, and flexible connections.
