Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 6000 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 13/16-16 (-08) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | ORB |
| Side 3 Gender | MALE |
| Side 3 Size | 13/16-16 (-08) |
| Side 3 Type | ORFS |
Description

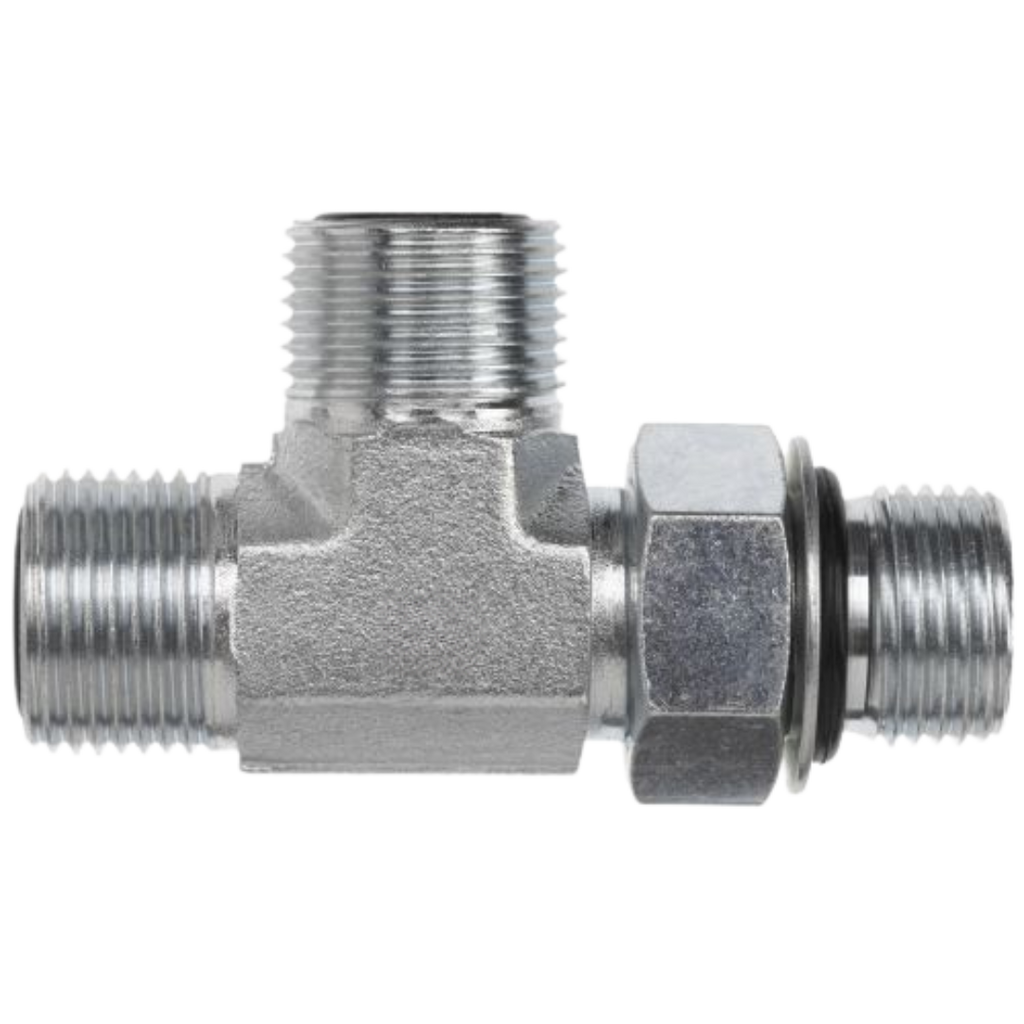

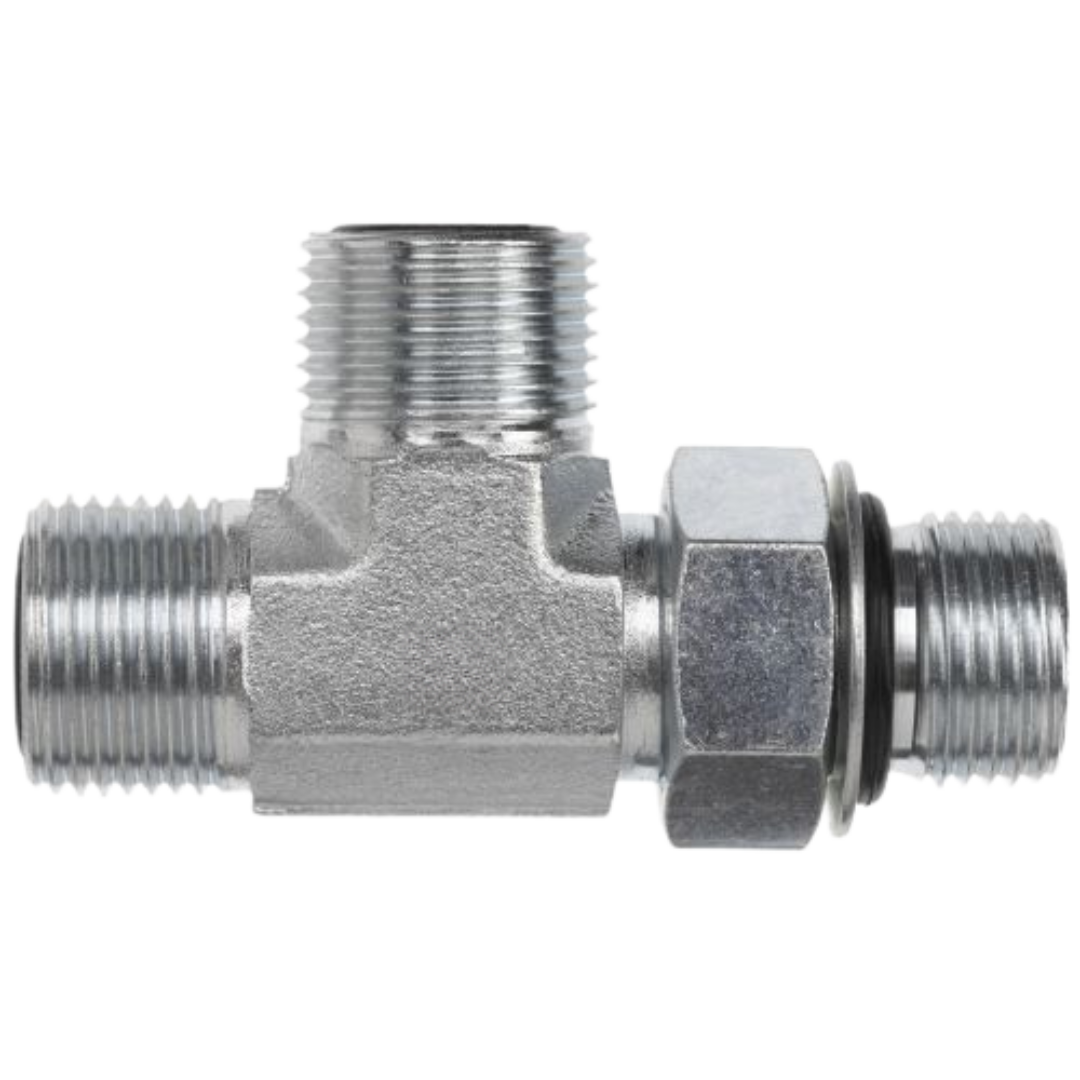

The Series FS6804-NWO Tee Male ORFS x Male Adjustable ORB x Male ORFS adapters are high-quality carbon steel fittings designed to ensure secure, leak-free connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, with two male ORFS (O-Ring Face Seal) connections and one male adjustable ORB (O-Ring Boss) connection. The male ORFS connections use O-rings to create reliable, leak-proof seals, while the male adjustable ORB connection allows for precise sealing adjustments, ensuring a secure fit. ORFS and ORB connections are both renowned for their leak prevention, making these adapters ideal for high-pressure fluid systems. Made from durable carbon steel, the Series FS6804-NWO adapters provide excellent strength, corrosion resistance, and long-lasting performance, making them perfect for industrial applications that require flexible, efficient, and dependable fluid routing. These adapters guarantee reliable, secure fluid connections in demanding environments.
