Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 6000 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-04) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-04) |
| Side 2 Type | ORFS |
| Side 3 Gender | MALE |
| Side 3 Size | 7/16-20 (-04) |
| Side 3 Type | ORB |
Description

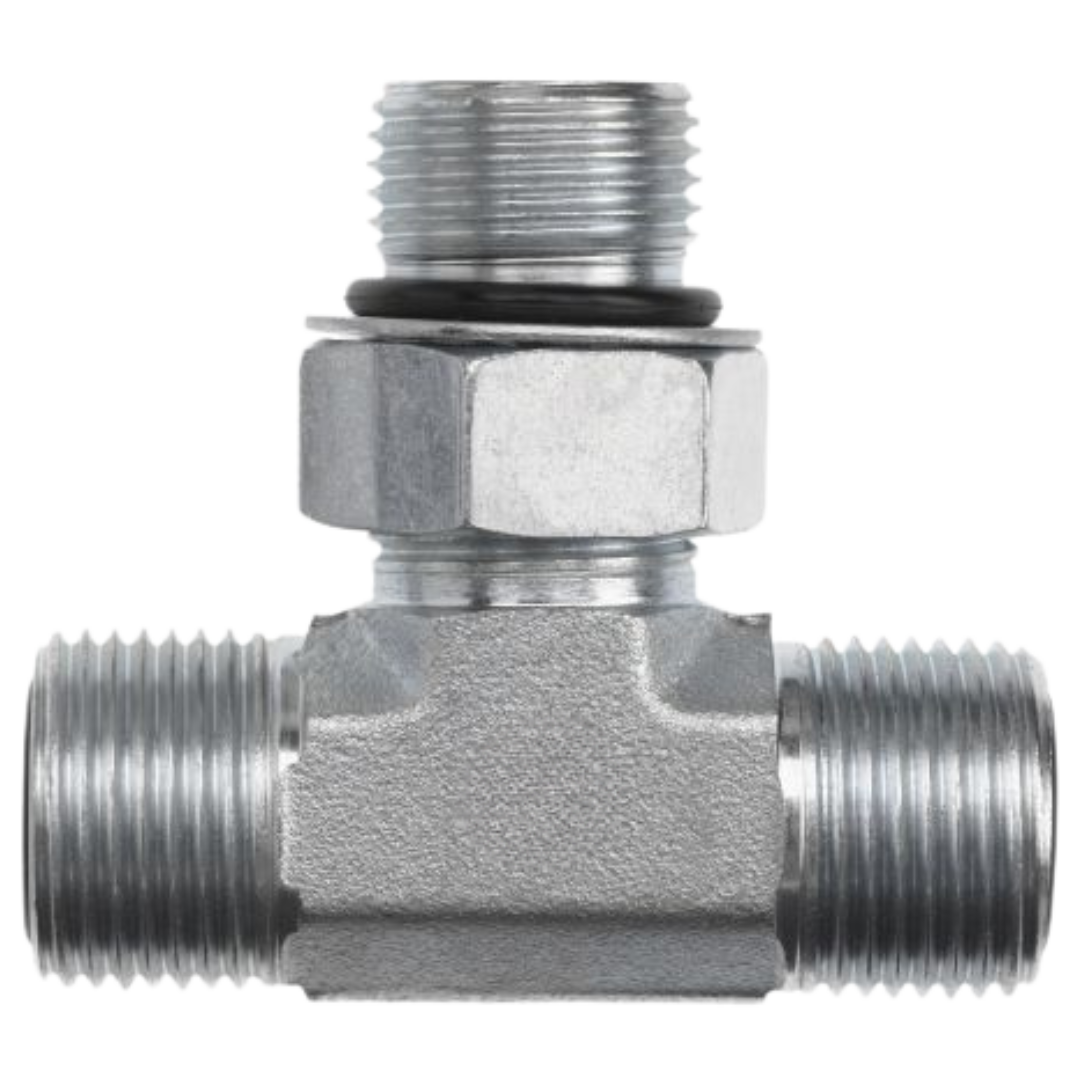

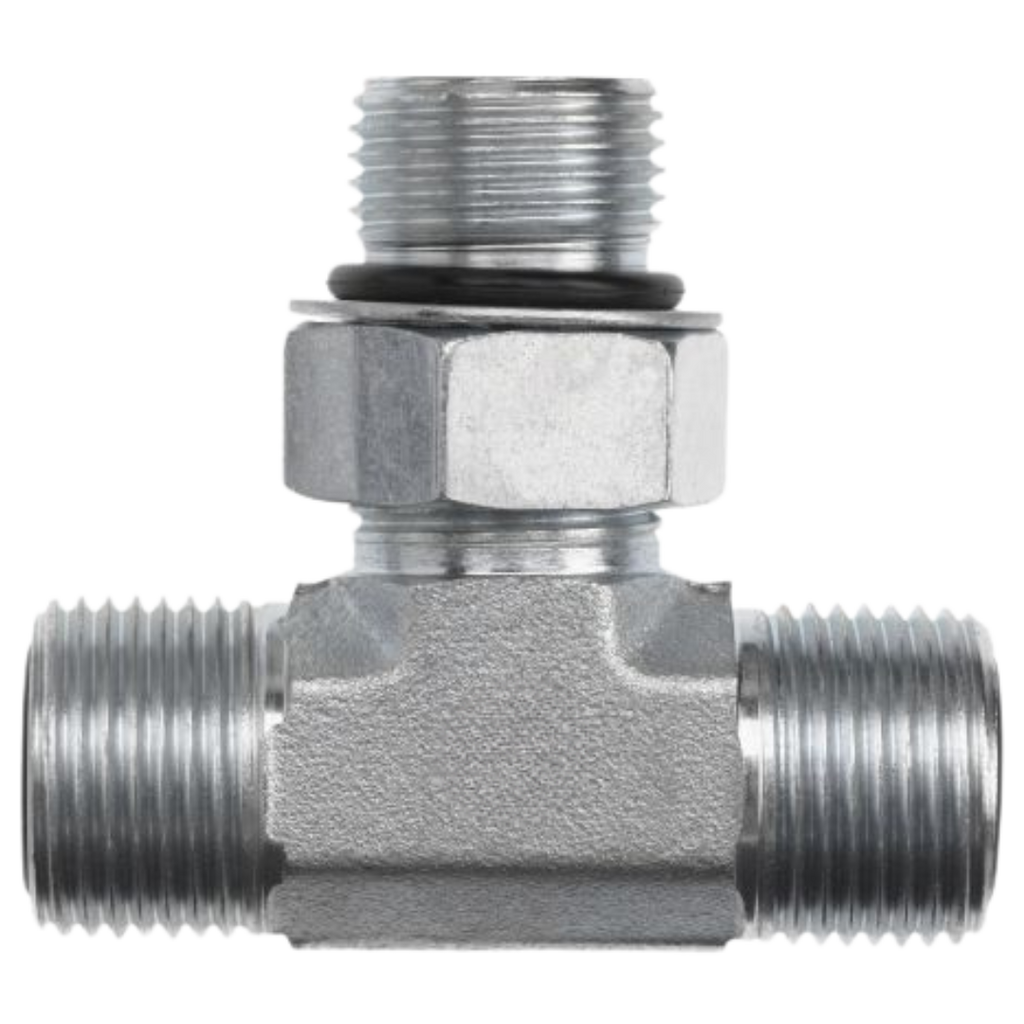

The Series FS6803-NWO Tee Male ORFS x Male ORFS x Male Adjustable ORB adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, with two male ORFS (O-Ring Face Seal) connections and one male adjustable ORB (O-Ring Boss) connection. The male ORFS connections provide a reliable, leak-proof seal using O-rings, while the male adjustable ORB connection offers flexibility in sealing, allowing for precise adjustments to ensure a secure fit. ORFS and ORB connections are known for their excellent leak prevention, making these adapters ideal for high-pressure applications. Made from durable carbon steel, the Series FS6803-NWO adapters offer superior strength, corrosion resistance, and long-lasting performance, making them perfect for industrial systems requiring flexible, efficient, and dependable fluid routing. These adapters provide secure, reliable fluid connections in demanding environments.
