Product Details
| Usually Ships Within | Same Day |
|---|---|
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 9200 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 13/16-16 (-08) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 13/16-16 (-08) |
| Side 2 Type | ORFS |
| Side 3 Gender | FEMALE |
| Side 3 Size | 13/16-16 (-08) |
| Side 3 Type | ORFS |
Description

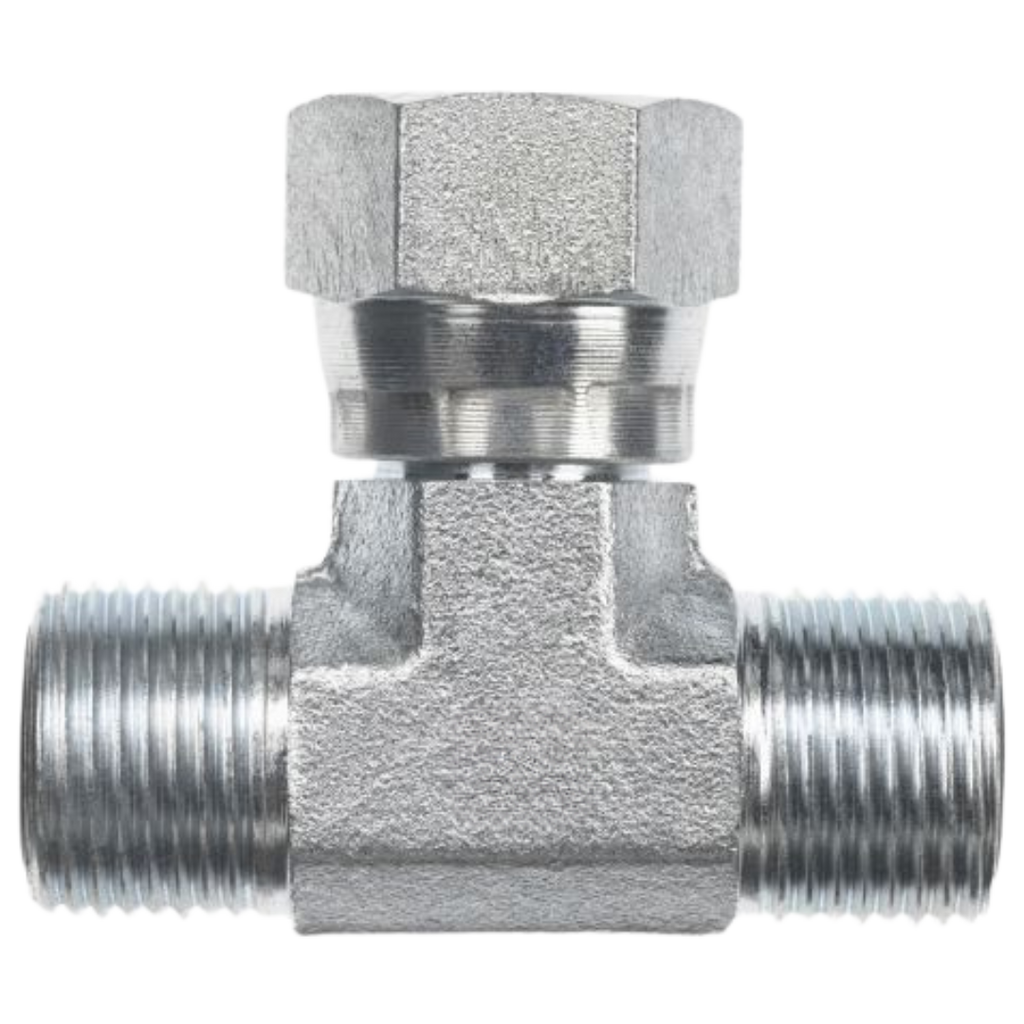

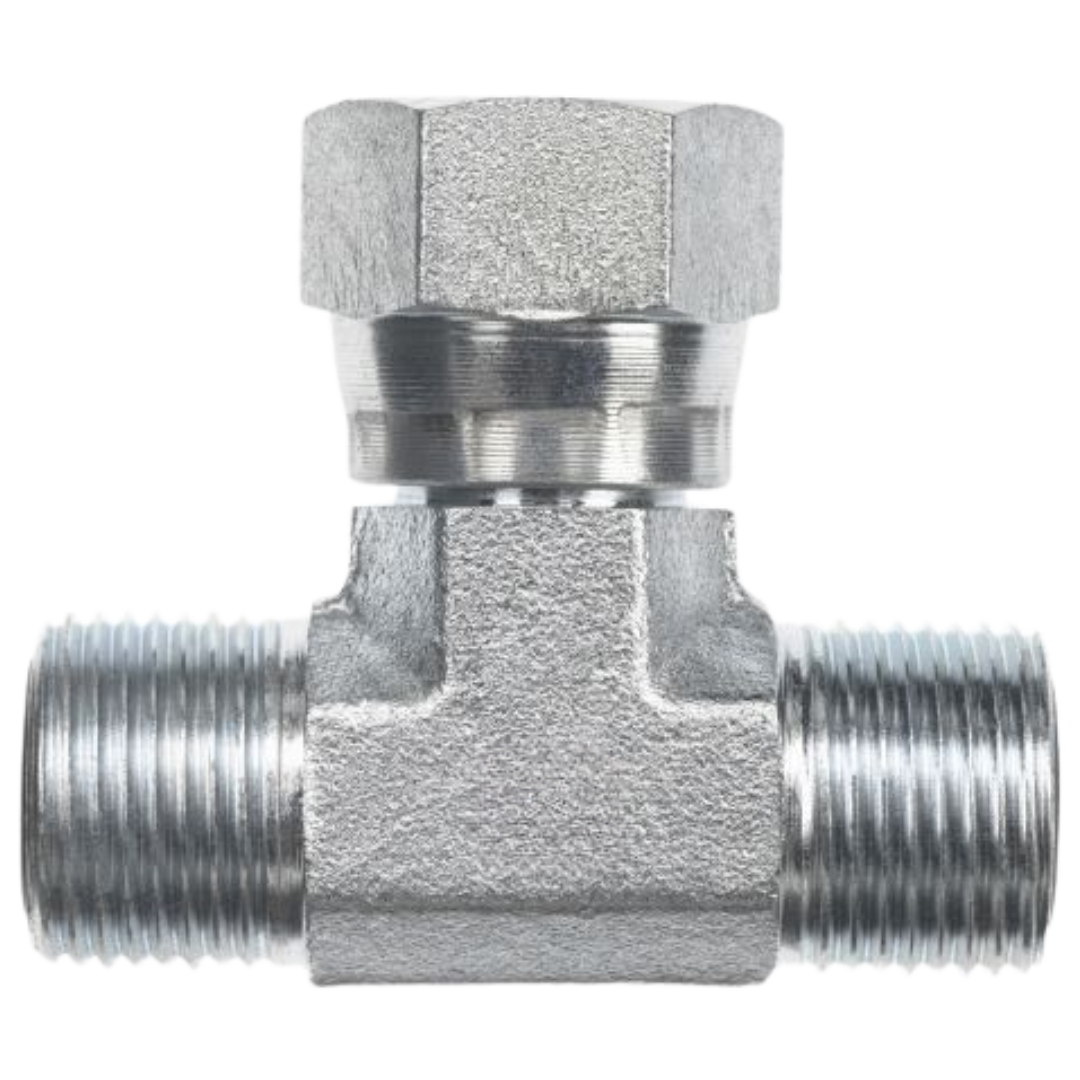

The Series FS6600 Branch Tee Male ORFS x Male ORFS x Female ORFS Swivel adapters are robust carbon steel fittings designed to provide secure, leak-free fluid connections in hydraulic and fluid power systems. These branch tee adapters feature a three-way design, with two male ORFS (O-Ring Face Seal) connections and one female ORFS swivel connection. The male ORFS connections create leak-proof seals by compressing O-rings onto the flat face of the female connector, ensuring a tight, reliable connection. The female ORFS swivel allows for flexible alignment and movement, while maintaining a secure seal. Made from durable carbon steel, these adapters are built to withstand high-pressure applications and provide excellent corrosion resistance and long-lasting performance, making them ideal for industrial systems that require flexible, efficient, and dependable fluid routing. The Series FS6600 adapters offer a secure and reliable solution for fluid transfer in demanding environments.
