Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 9200 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-04) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-04) |
| Side 2 Type | ORFS |
| Side 3 Gender | MALE |
| Side 3 Size | 9/16-18 (-04) |
| Side 3 Type | ORFS |
Description

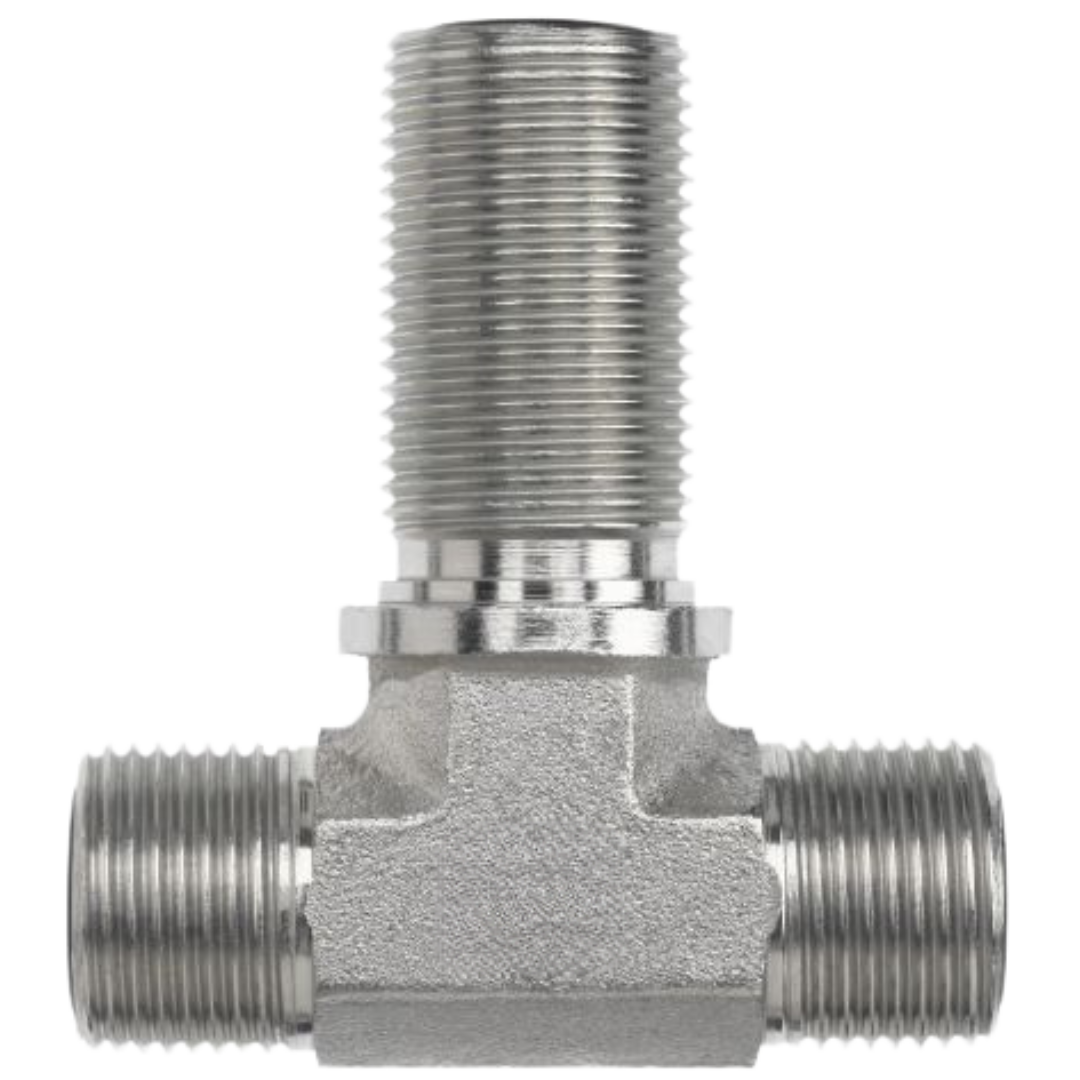

The Series FS2703 Bulkhead Tee Male ORFS x Male ORFS x Male ORFS adapters are durable carbon steel fittings designed to provide secure, leak-free connections in hydraulic and fluid power systems. These bulkhead tee adapters feature a three-way design, with three male ORFS (O-Ring Face Seal) connections. The ORFS connections are known for their excellent leak prevention, with O-rings creating reliable seals by compressing against the flat face of the female fitting. The bulkhead design allows for easy integration into panel-mounted systems, providing a secure and efficient fluid routing solution. Made from high-strength carbon steel, the Series FS2703 adapters offer exceptional durability, corrosion resistance, and long-lasting performance, making them ideal for high-pressure applications and industrial systems that require flexible, dependable fluid connections. These adapters ensure reliable fluid transfer in demanding environments.
