Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | 90-Degrees |
| Pressure Rating | 6000 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 13/16-16 (-08) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPT |
Description

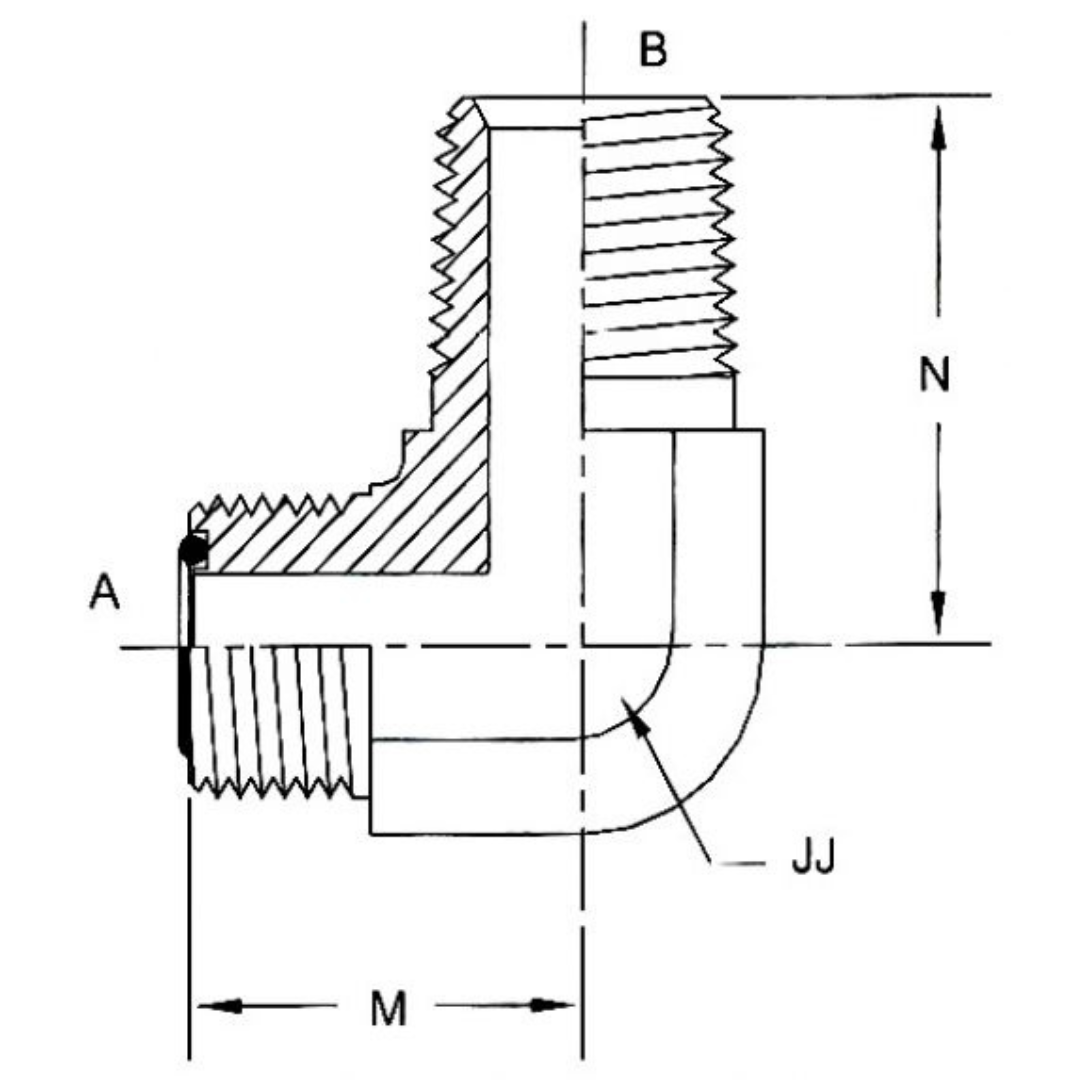

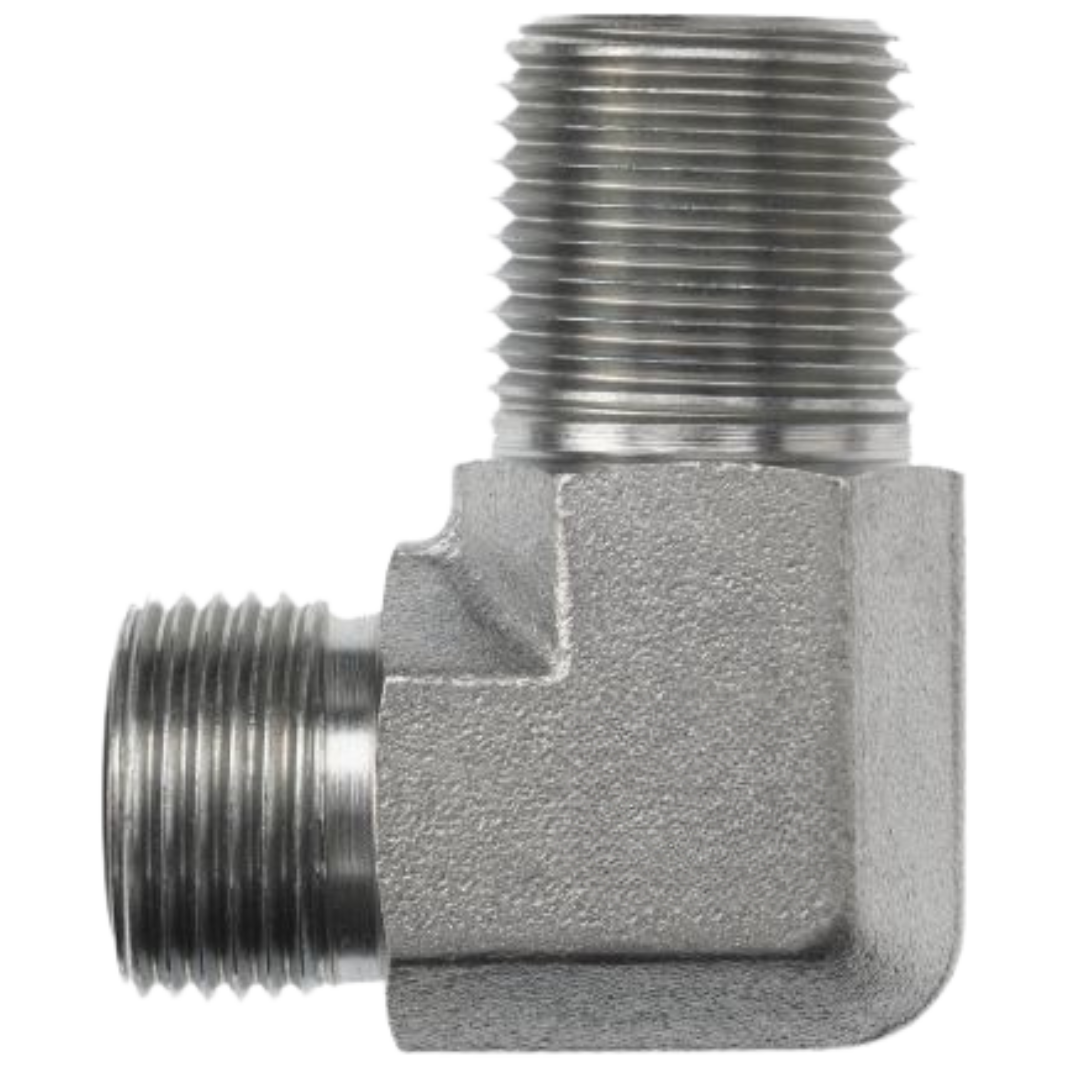

The Series FS2501 90-Degree Angled Male ORFS x Male NPTF adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. Featuring a 90-degree angle, these adapters are ideal for routing hoses and pipes in tight or confined spaces. One end is equipped with a male ORFS (O-Ring Face Seal) connection, which provides a reliable, leak-free seal by trapping an O-ring between the fitting and the port face, while the other end has a male NPTF (National Pipe Tapered Fuel) thread, ensuring a tight, leak-proof connection through thread deformation. Made from durable carbon steel, these adapters are perfect for high-pressure fluid power systems, offering exceptional strength, corrosion resistance, and long-lasting performance in demanding industrial environments. The Series FS2501 is designed to deliver reliable, efficient, and secure connections in a wide range of hydraulic applications.
