Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | 90-Degrees |
| Pressure Rating | 9200 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-04) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-04) |
| Side 2 Type | ORFS |
Description

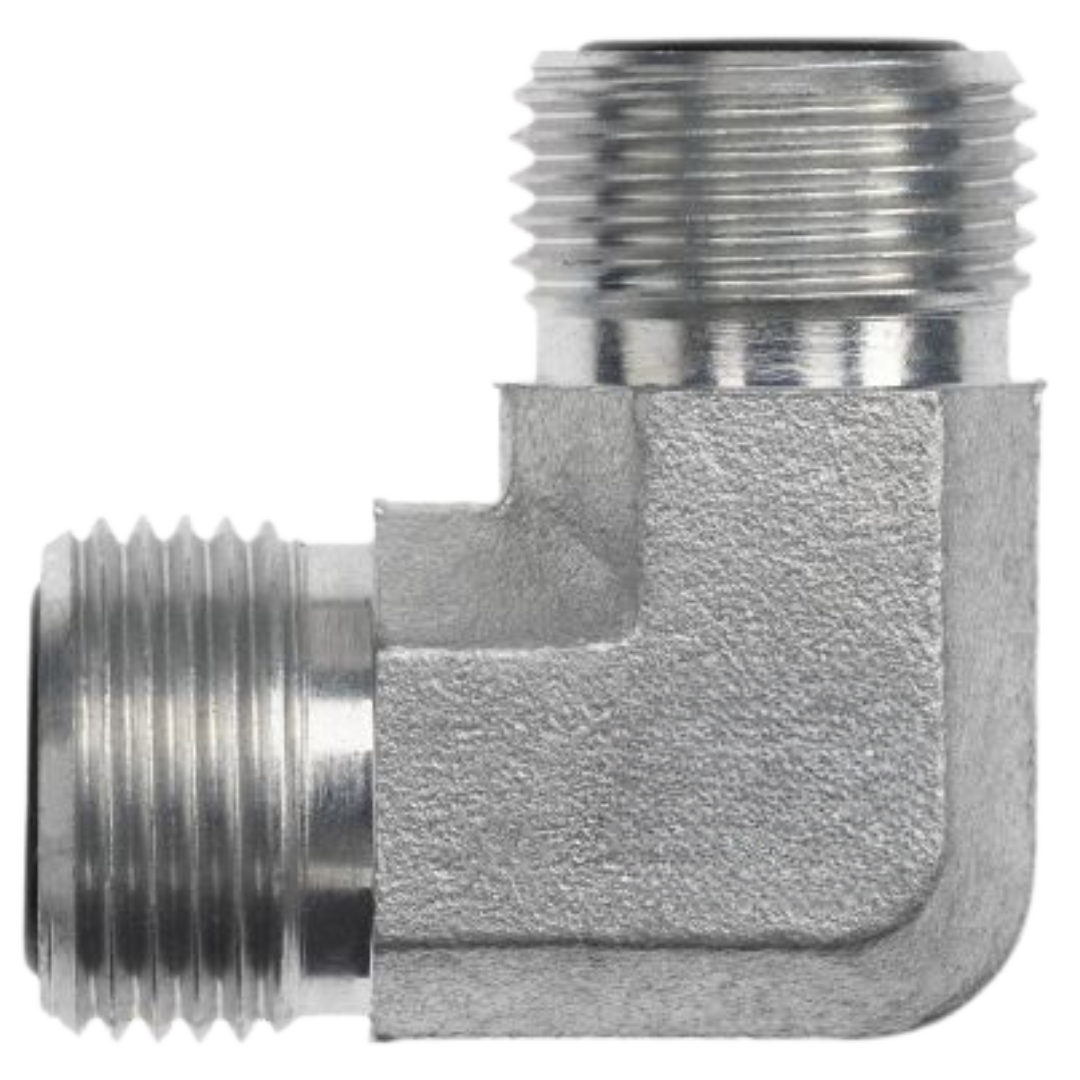

The Series FS2500 90-Degree Male ORFS x Male ORFS adapters are high-quality carbon steel fittings designed for secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for routing hoses and pipes efficiently in tight or restricted spaces. Both ends are equipped with male ORFS (O-Ring Face Seal) connections, which ensure a reliable, leak-tight seal by compressing an O-ring against a flat face. This connection type is known for its superior leak control, making it ideal for high-pressure fluid power systems. The Series FS2500 provides excellent strength, corrosion resistance, and long-lasting performance, making it the perfect choice for industrial applications that require dependable, durable, and secure connections in fluid transfer systems.
