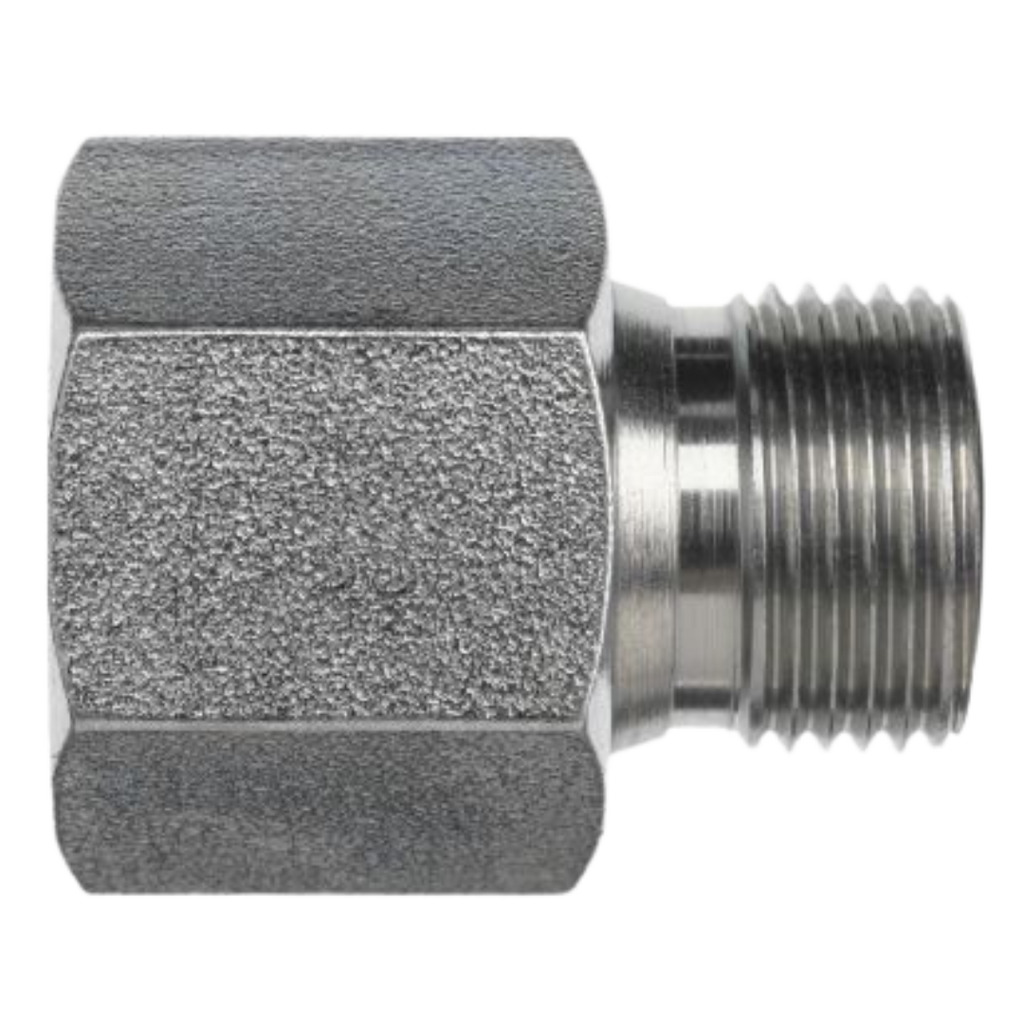

Product Details
| Usually Ships Within | Same Day |
|---|---|
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 6000 |
| Country of Manufacture | India |
| Side 1 Gender | FEMALE |
| Side 1 Size | 1-3/16-12 (-12) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 11/16-16 (-06) |
| Side 2 Type | ORFS |
Description
Series FS2406 Straight Female ORFS x Male ORFS hydraulic adapters provide a secure, leak-free connection in high-pressure hydraulic systems. ORFS (O-ring Face Seal) fittings feature an O-ring seated in a groove on the face of the fitting, which creates an elastomeric seal when compressed between the flat face of the male and female components. This compression ensures a tight, reliable connection, ideal for preventing leaks in demanding applications. Manufactured to SAE J1453 standards, these adapters use Buna-N or Viton O-rings, offering excellent durability and resistance. Commonly made from carbon, nickel-plated carbon, or stainless steel, they provide robust, long-lasting performance, making them a reliable choice for fluid power systems.
