Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 4-6 Weeks |
Factory Location | Quakertown, Pennsylvania |
Material | Carbon Steel |
Port Size | 1.5" Code 62 |
Flow Rating | 112.27 |
Micron | 10 Micron |
Replacement Elements | HP500-1-A10-A-N-P01 (Element) |
O Ring Seals | Buna |
Valve Options | Reversible, With Bypass Valve |
Pressure Rating | 6090 |
Country of Manufacture | Italy |
Height | 6.7 |
Length | 13 |
Width | 6.7 |
Weight | 6.86 |
Description

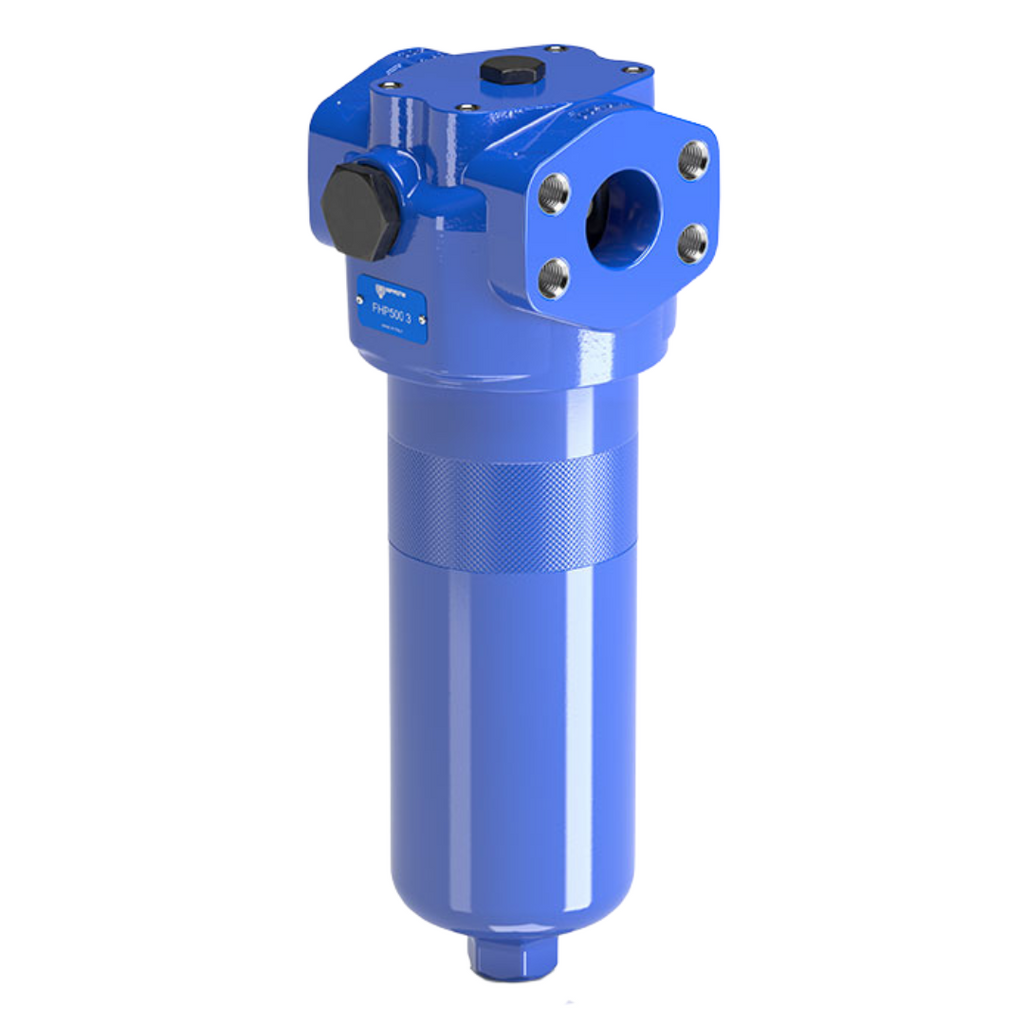

The MP Filtri FHP Series High Pressure Filters are designed for in-line hydraulic applications, with a maximum operating pressure of 6090psi (420bar). Longer filter lengths allow for increased flow ratings.
