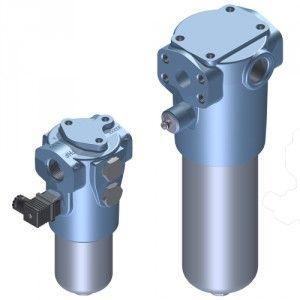

FHP320-1-B-A-G5-A10-N-P01 : MP Filtri High Pressure In-Line Filter, 6090psi, #20 SAE (1.25"), 10 Micron, Without Visual Indicator, With Bypass Valve
Roll over image to zoom in Click on image to zoom
FHP320-1-B-A-G5-A10-N-P01 : MP Filtri High Pressure In-Line Filter, 6090psi, #20 SAE (1.25"), 10 Micron, Without Visual Indicator, With Bypass Valve

FHP320-1-B-A-G5-A10-N-P01 : MP Filtri High Pressure In-Line Filter, 6090psi, #20 SAE (1.25"), 10 Micron, Without Visual Indicator, With Bypass Valve

MP FiltriSKU: FHP320-1-B-A-G5-A10-N-P01
4-6 Weeks
Price:
$580.81

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Quakertown, Pennsylvania
Material Carbon Steel
Port Size #20 SAE (1.25")
Flow Rating 60.76
Micron 10 Micron
Replacement Elements HP320-1-A10-A-N-P01 (Element)
O Ring Seals Buna
Valve Options With Bypass Valve
Pressure Rating 6090
Country of Manufacture Italy
Height 5.52
Length 11.77
Width 5.52
Weight 76.5

Description

The MP Filtri FHP Series High Pressure Filters are designed for in-line hydraulic applications, with a maximum operating pressure of 6090psi (420bar). Longer filter lengths allow for increased flow ratings.
