|Data Sheet||Download Datasheet|
|Usually Ships Within||4-6 Weeks|
|Factory Location||Quakertown, Pennsylvania|
|Port Size||Special Manifold Mount|
|Replacement Elements||HP050-2-A10-A-N-P01 (Element)|
|O Ring Seals||Buna|
|Valve Options||With Bypass Valve|
|Country of Manufacture||Italy|

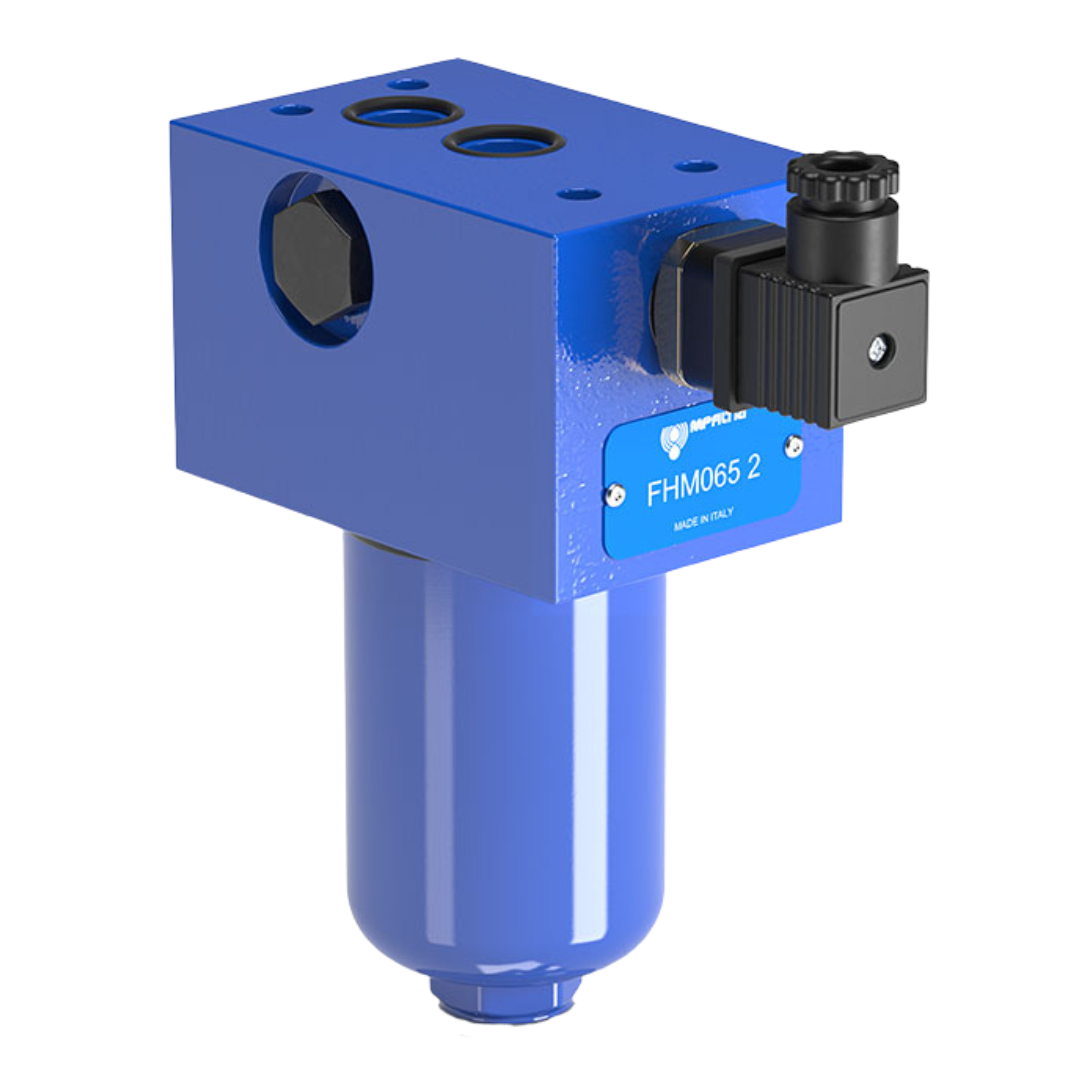

The MP Filtri FHM Series High Pressure Manifold Filters are designed for use on manifolds in hydraulic applications, with a maximum operating pressure of 4640psi (320bar). The FHM006 and FHM007 have a D03 (NG6) Mounting pattern, and the FHM010 has a D05 (NG10) Mounting pattern. Since the filter hangs off the side of the FHM006, FHM007, and FHM010, these three have options for which direction you prefer the filter housing to hang. The FHM050, FHM065, FHM135, FHM320, and FHM 500 are all special mounting configurations designed for higher flow, and to mount on manifolds vertically with the housing up in the air.
