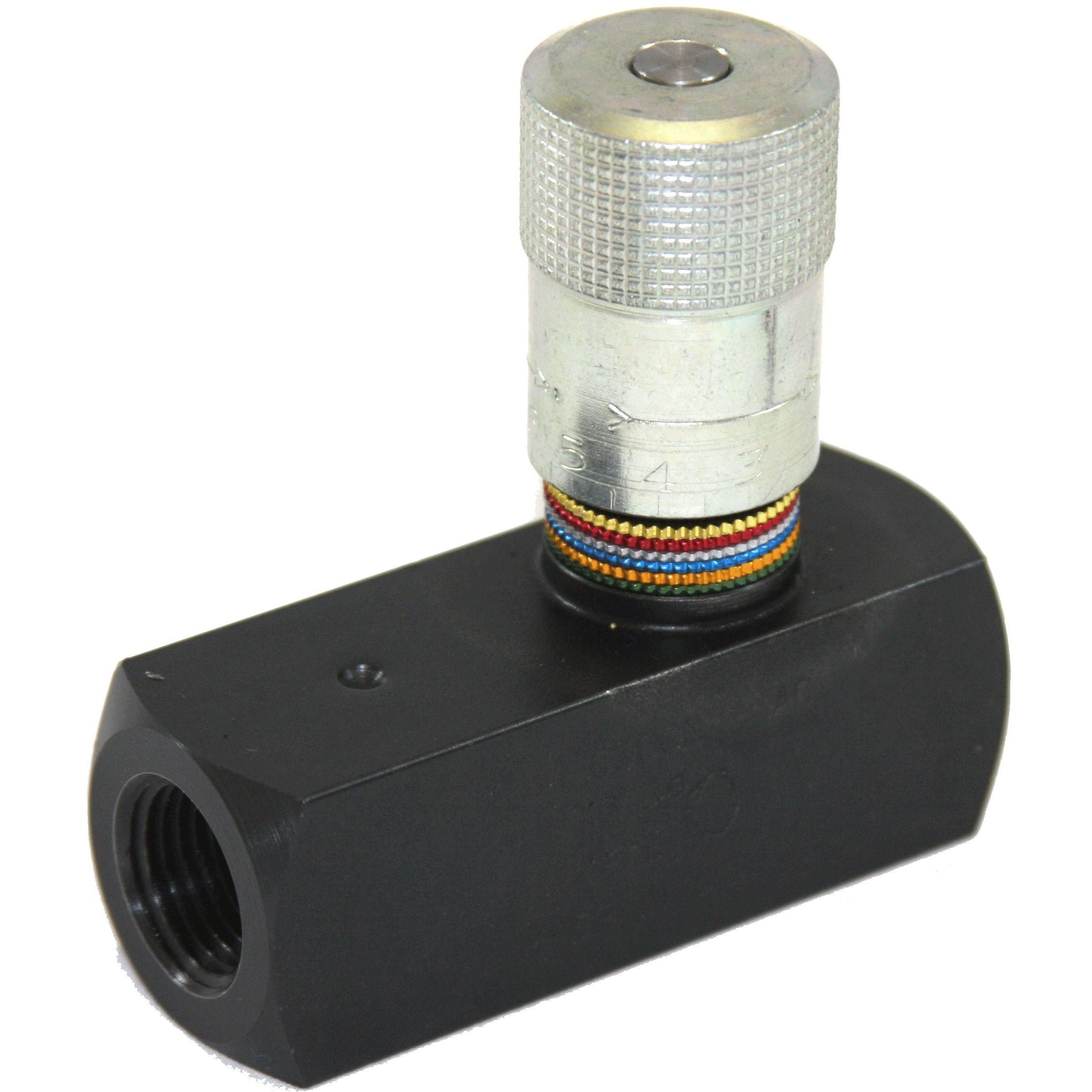

FC1H-1000S : DMIC Flow Control, Unidirectional, with Integrated Check, #16 SAE (1"), Carbon Steel, 5000psi
Roll over image to zoom in Click on image to zoom
FC1H-1000S : DMIC Flow Control, Unidirectional, with Integrated Check, #16 SAE (1"), Carbon Steel, 5000psi

FC1H-1000S : DMIC Flow Control, Unidirectional, with Integrated Check, #16 SAE (1"), Carbon Steel, 5000psi

Save $85.27
DMICSKU: FC1H1000S
1-2 Weeks
Price:
$441.99 $527.26

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Connection Size #16 SAE (1")
Material Carbon Steel
Panel Mount Option No Panel Mount Nut
Adjustment Type Knob Adjustment
Flow Rating 40
Pressure Rating 5000
Height 4.26
Length 5.62
Width 2.25
Weight 0

Description

The DMIC FC1H flow control valve is a carbon steel, unidirectional flow control rated for working pressures to 5000psi. An integrated 5psi poppet check valve provides free return flow. These valves have come with a set screw to prevent tampering.
