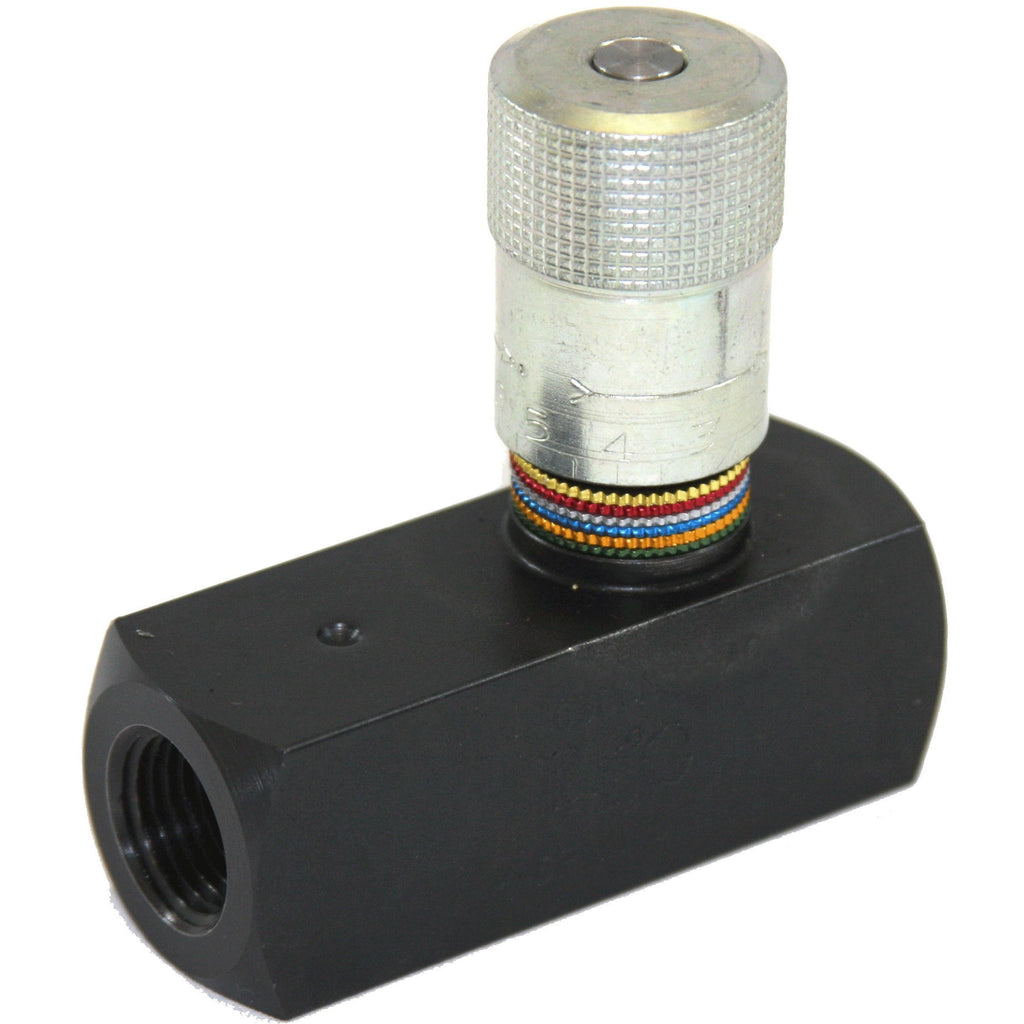

FC1H-0500S : DMIC Flow Control, Unidirectional, with Integrated Check, #8 SAE (1/2"), Carbon Steel, 5000psi
Roll over image to zoom in Click on image to zoom
FC1H-0500S : DMIC Flow Control, Unidirectional, with Integrated Check, #8 SAE (1/2"), Carbon Steel, 5000psi

FC1H-0500S : DMIC Flow Control, Unidirectional, with Integrated Check, #8 SAE (1/2"), Carbon Steel, 5000psi

Save $15.34
DMICSKU: FC1H0500S
1-2 Weeks
03.43.H.103A
Price:
$78.99 $94.33

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Connection Size #8 SAE (1/2")
Material Carbon Steel
Panel Mount Option No Panel Mount Nut
Adjustment Type Knob Adjustable
Flow Rating 15
Pressure Rating 5000
Height 4.26
Length 3.5
Width 1.25
Weight 0

Description

The DMIC FC1H flow control valve is a carbon steel, unidirectional flow control rated for working pressures to 5000psi. An integrated 5psi poppet check valve provides free return flow. These valves have come with a set screw to prevent tampering.
