|Usually Ships Within||1-3 Days|
|Factory Location||Greenwood, Indiana|

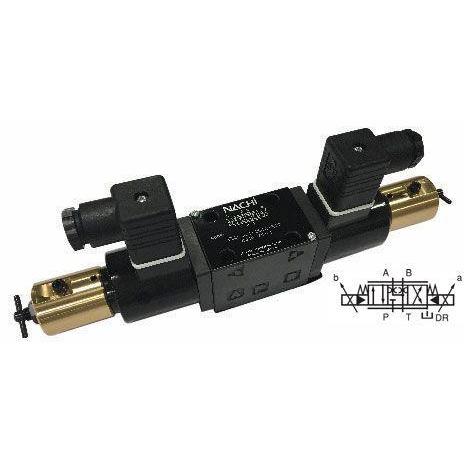

Nachi D03 Load Response Electro-Hydraulic Proportional Relief and Flow Control Valve, P Blocked, A & B to Tank in Center Position, 2.6 GPM Rated
|Data Sheet||Click here to download|
|Usually ships within||2-3 Days|
|Valve Type||Subplate/Manifold Mounted Valve|
|Pressure Rating||3,625.00 PSI|
|Flow Rating||2.60 GPM|
|Spool Configuration||P Blocked, A & B to Tank in Center Position, Motor Spool|
|Country of Manufacture||Japan|
|Weight in lbs||4.80|
The Nachi Load Response Electro-Hydraulic Proportional Relief and Flow Control Valve has a load sensing function that makes it possible to control pump discharge pressure automatically in accordance with the size of the load pressure. Using this valve suprresses wasteful pump pressure rises and makes it possible to configure an energy-efficient circuit.
