Product Details
| Usually Ships Within | 4-6 Weeks |
|---|---|
| Factory Location | Tempe, Arizona |
| Material | Steel |
| Pressure Rating | 3000 |
| Inside Diameter | 0.375 (3/8") |
| Hose Outside Diameter | 0.6875 (11/16") |
| Seal Material | Nitrile |
| Height | 21.75 |
| Length | 21.88 |
| Width | 8.5 |
| Weight | 68 |
Description

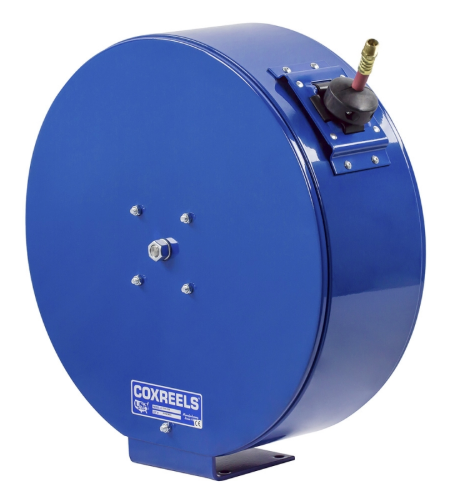

Coxreels ENML-N-350 Spring Rewind Enclosed Hose Reel for air/water/oil: 3/8-inch I.D., 50' hose, without hose, 3000 PSI
| Retraction Method | Spring Driven |
|---|---|
| Reel Type | Hose |
| Reel Design | Enclosed |
| Reel Mount Type | Floor, Wall, Ceiling, Bench and Vehicles |
| Swivel/Slip Ring | Machined from solid brass 90-Degree full-flow NPT swivel inlet (Zinc plated steel swivel on HP models), Swivel Seals: NITRILE |
| Material | Steel |
| Seal Material | Nitrile |
| Swivel Material | Brass |
| Bearings | 1-inch Permanently Lubricated Precision Bearings |
| Finish | Powder Coated |
| Max Temp | 250 Degrees F |
| Design & Structure | Sturdy enclosed reel for aesthetic purposes and greater hose protection, Models with size index #2 feature Coxreels |
| Retraction | Controlled retraction speed up to 80-percent slower on EZ-Coil models, see page 7 for details, Enclosed factory tuned and matched cartridge-style spring motor, Non corrosive stainless steel spring, pawl and zinc plated ratchet, Multi-position lock ratchet |
| Signature Features | Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA. |
| Feature 1 | SWIVEL - Machined from solid brass 90-degree full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount. |
| Feature 2 | CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. |
| Feature 3 | CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety. |
| Feature 4 | 1/4-inch STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hubdual axle support system. |
| Feature 5 | ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide. |
| Feature 6 | OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet mechanism, and lubricated precision bearings. |
| Hose Inside Diameter | 0.375 (3/8") |
| Hose Outside Diameter | 0.6875 (11/16") |
| Hose Length | 50' |
| Pressure Rating | 3,000.00 PSI |
| Reel Inlet | 0.375 (3/8") FNPT |
| Hose/Cord/Cable Included | No |
| Weight in lbs | 68.00 |
| Length | 21.88 Inches |
| Width | 8.50 Inches |
| Height | 21.75 Inches |
Coxreels EN Series Enclosed spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose and the components inside. It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look. The 3-piece casing is easy to assemble and disassemble for simple installation and maintenance.
