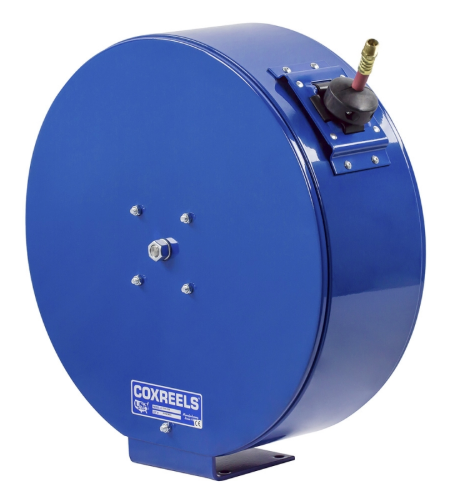

ENL-N-425 : Coxreels ENL-N-425 Spring Rewind Enclosed Hose Reel for air/water, 1/2" ID, 25' hose, NO HOSE, 300psi

COXReelsSKU: ENL-N-425
4-6 Weeks

Price:
Sale price$584.99

Product Details

Usually Ships Within 4-6 Weeks
Factory Location Tempe, Arizona
Material Steel
Pressure Rating 300
Inside Diameter 0.5 (1/2")
Hose Outside Diameter 0.75 (3/4")
Seal Material Nitrile
Height 18.88
Length 19
Width 6.88
Weight 58

Description

Coxreels ENL-N-425 Spring Rewind Enclosed Hose Reel for air/water: 1/2-inch I.D., 25' hose, without hose, 300 PSI

Retraction Method Spring Driven
Reel Type Hose
Reel Design Enclosed
Reel Mount Type Floor, Wall, Ceiling, Bench and Vehicles
Swivel/Slip Ring Machined from solid brass 90-Degree full-flow NPT swivel inlet (Zinc plated steel swivel on HP models), Swivel Seals: NITRILE
Material Steel
Seal Material Nitrile
Swivel Material Brass
Bearings 1-inch Permanently Lubricated Precision Bearings
Finish Powder Coated
Max Temp 150 Degrees F
Design & Structure Sturdy enclosed reel for aesthetic purposes and greater hose protection, Models with size index #2 feature Coxreels
Retraction Controlled retraction speed up to 80-percent slower on EZ-Coil models, see page 7 for details, Enclosed factory tuned and matched cartridge-style spring motor, Non corrosive stainless steel spring, pawl and zinc plated ratchet, Multi-position lock ratchet
Signature Features Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA.
Feature 1 SWIVEL - Machined from solid brass 90-degree full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
Feature 2 CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
Feature 3 CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
Feature 4 1/4-inch STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hubdual axle support system.
Feature 5 ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide.
Feature 6 OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet mechanism, and lubricated precision bearings.
Hose Inside Diameter 0.5 (1/2")
Hose Outside Diameter 0.75 (3/4")
Hose Length 25'
Pressure Rating 300.00 PSI
Reel Inlet 0.5 (1/2") FNPT
Hose/Cord/Cable Included No
Weight in lbs 58.00
Length 19.00 Inches
Width 6.88 Inches
Height 18.88 Inches

Coxreels EN Series Enclosed spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose and the components inside. It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look. The 3-piece casing is easy to assemble and disassemble for simple installation and maintenance.
