Product Details
| Usually Ships Within | 4-6 Weeks |
|---|---|
| Factory Location | Tempe, Arizona |
| Material | Stainless Steel |
| Pressure Rating | 300 |
| Inside Diameter | 0.375 (3/8") |
| Hose Outside Diameter | 0.625 (5/8") |
| Seal Material | Nitrile Non-Toxic Food Grade Grease |
| Height | 21.75 |
| Length | 21.88 |
| Width | 8.5 |
| Weight | 58 |
Description

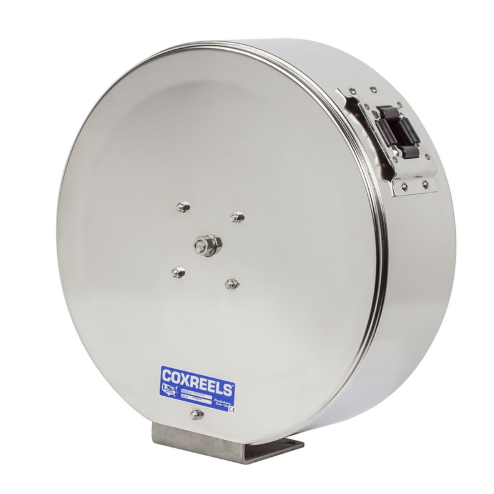

Coxreels ENL-N-350-SS Stainless Steel Spring Rewind Enclosed Hose Reel: 3/8-inch I.D., 50' hose capacity, without hose, 300 PSI
| Retraction Method | Spring Driven |
|---|---|
| Reel Type | Specialty |
| Reel Design | Enclosed |
| Reel Mount Type | Floor, Wall, Ceiling, Bench and Vehicles |
| Swivel/Slip Ring | Non-corrosive external fluid path with machined from high quality stainless steel 90-Degree full-flow NPT swivel inlet, Swivel Seals: NITRILE Non-Toxic Food Grade Grease |
| Material | Stainless Steel |
| Seal Material | Nitrile Non-Toxic Food Grade Grease |
| Swivel Material | Stainless Steel |
| Bearings | 1-inch Permanently Lubricated Precision Bearings |
| Finish | Electro-polish Stainless Steel |
| Max Temp | 150 Degrees F |
| Design & Structure | SS Electro-polished stainless steel finish, Sturdy enclosed reel for aesthetic purposes and greater hose protection, Models with size index #2 feature Coxreels |
| Retraction | Enclosed factory tuned and matched cartridge-style spring motor, Non corrosive stainless steel spring, pawl and zinc plated ratchet, Multi-position lock ratchet mechanism secures hose at desired length |
| Signature Features | Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA. |
| Feature 1 | SWIVEL - Non-corrosive external fluid path with machined from high quality stainless steel 90-degree full-flow NPT swivel inlet. |
| Feature 2 | CARTRIDGE MOTOR - Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. |
| Feature 3 | CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety. |
| Feature 4 | 1/4-inch STEEL BASE - Sturdy single pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability. |
| Feature 5 | ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Stainless steel 3-piece casing with adjustable hose roller guide. |
| Feature 6 | OTHER FEATURES INCLUDE - Multi-position lock ratchet mechanism, and lubricated precision bearings. |
| Hose Inside Diameter | 0.375 (3/8") |
| Hose Outside Diameter | 0.625 (5/8") |
| Hose Length | 50' |
| Pressure Rating | 300.00 PSI |
| Reel Inlet | 0.375 (3/8") FNPT |
| Hose/Cord/Cable Included | No |
| Weight in lbs | 58.00 |
| Length | 21.88 Inches |
| Width | 8.50 Inches |
| Height | 21.75 Inches |
Coxreels SS Series Stainless Steel spring driven hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.
