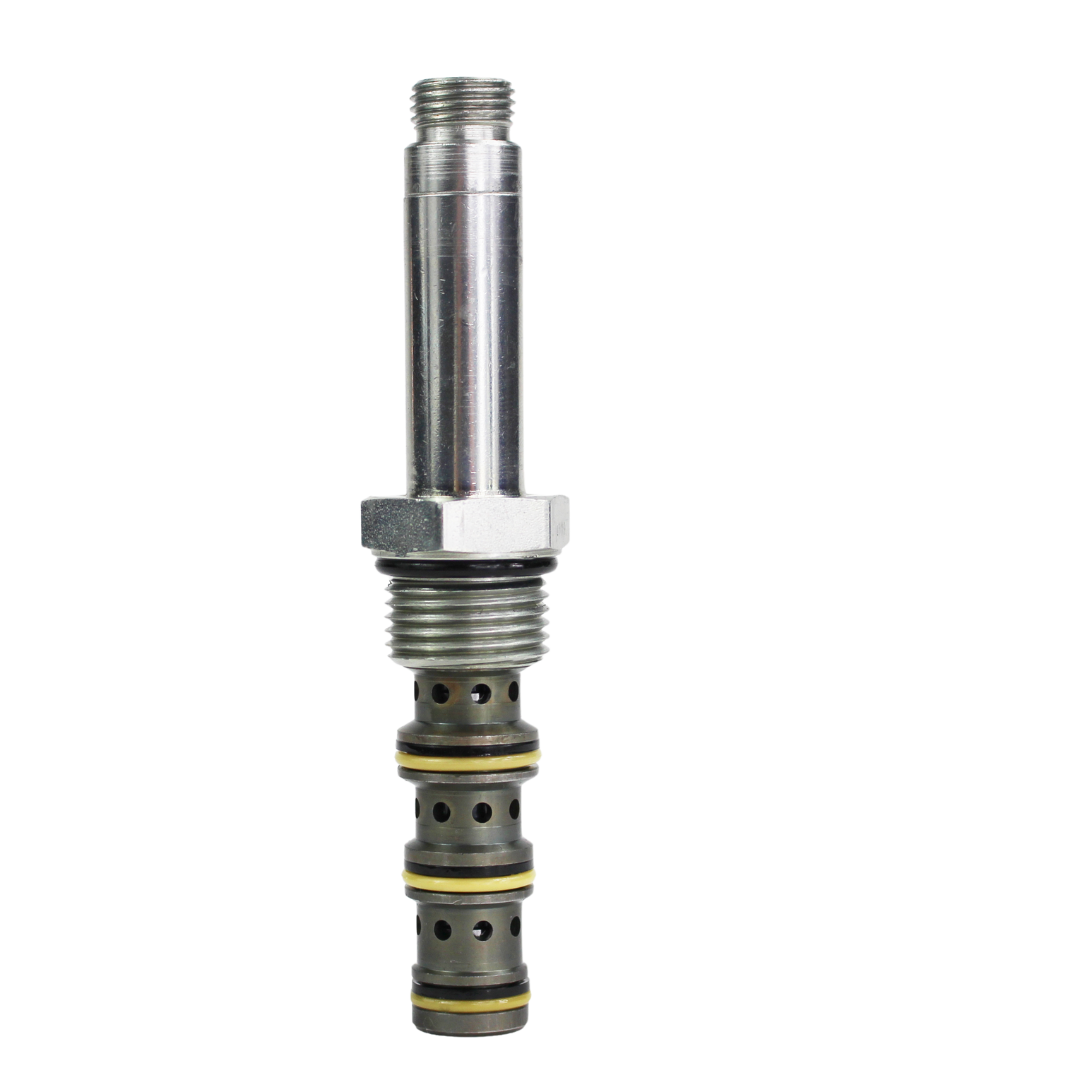

DSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPM
DSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPM
DSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPM
DSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPM
DSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPM
Roll over image to zoom in Click on image to zoom
DSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPMDSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPMDSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPMDSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPMDSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPM

DSV2-100-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-10-4 Cavity, 3000psi, 6GPM

Deltrol Fluid ProductsSKU: 10186-27
4-6 Weeks
Price:
$69.99

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-4
Positions 2-Position
Way 4-Way
Country of Manufacture United States/Vietnam

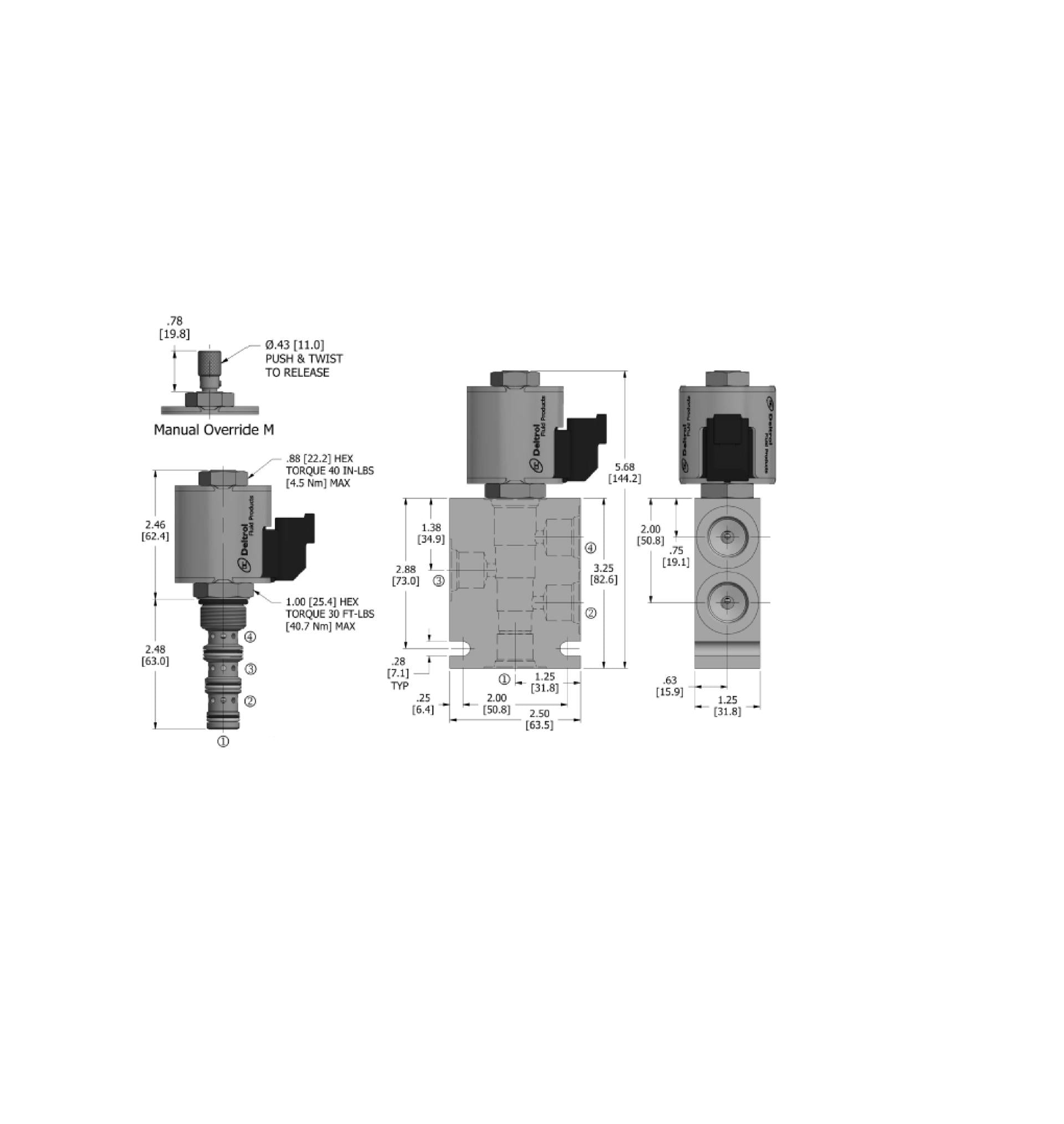

Height 2
Length 4.94
Width 2
Weight 2

Description

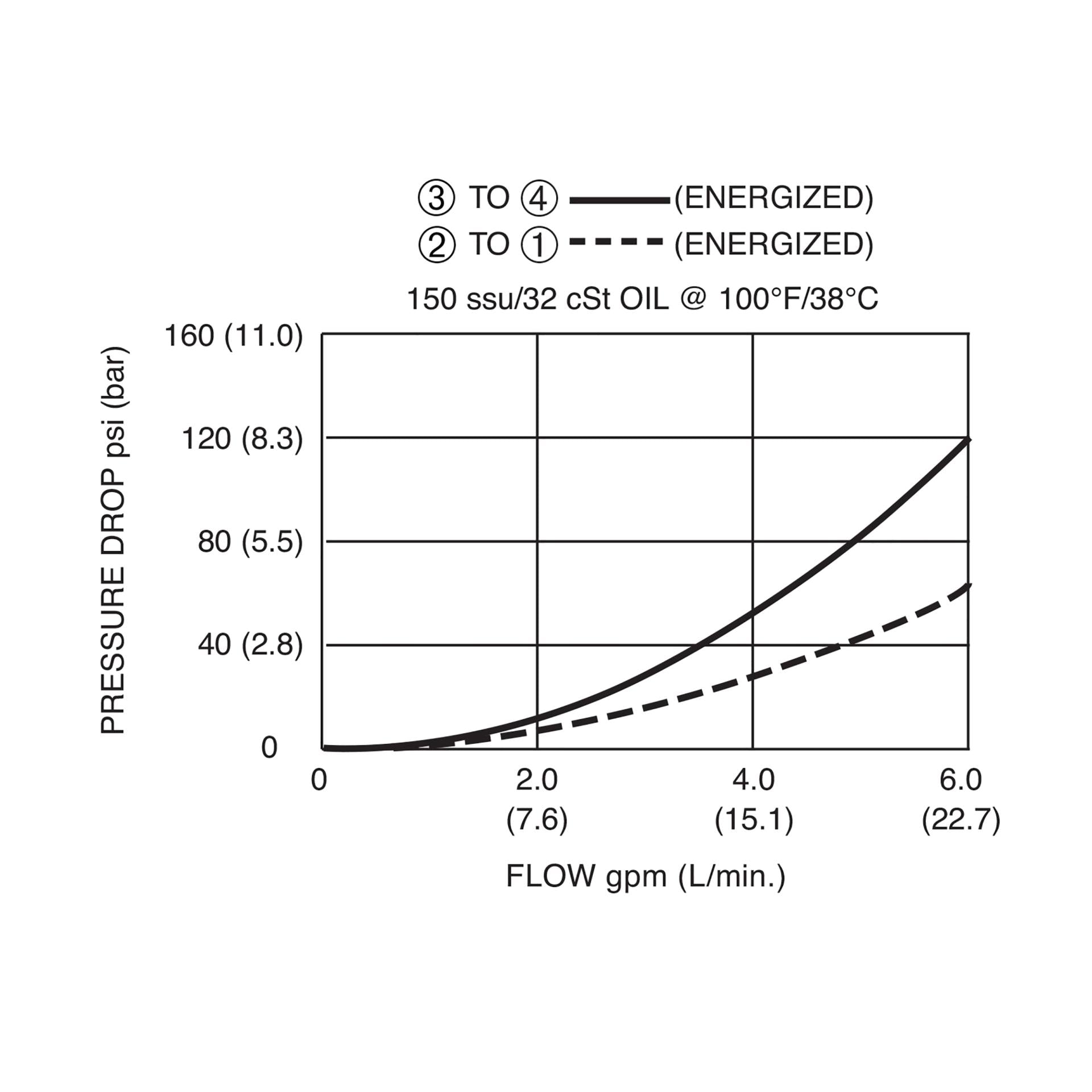

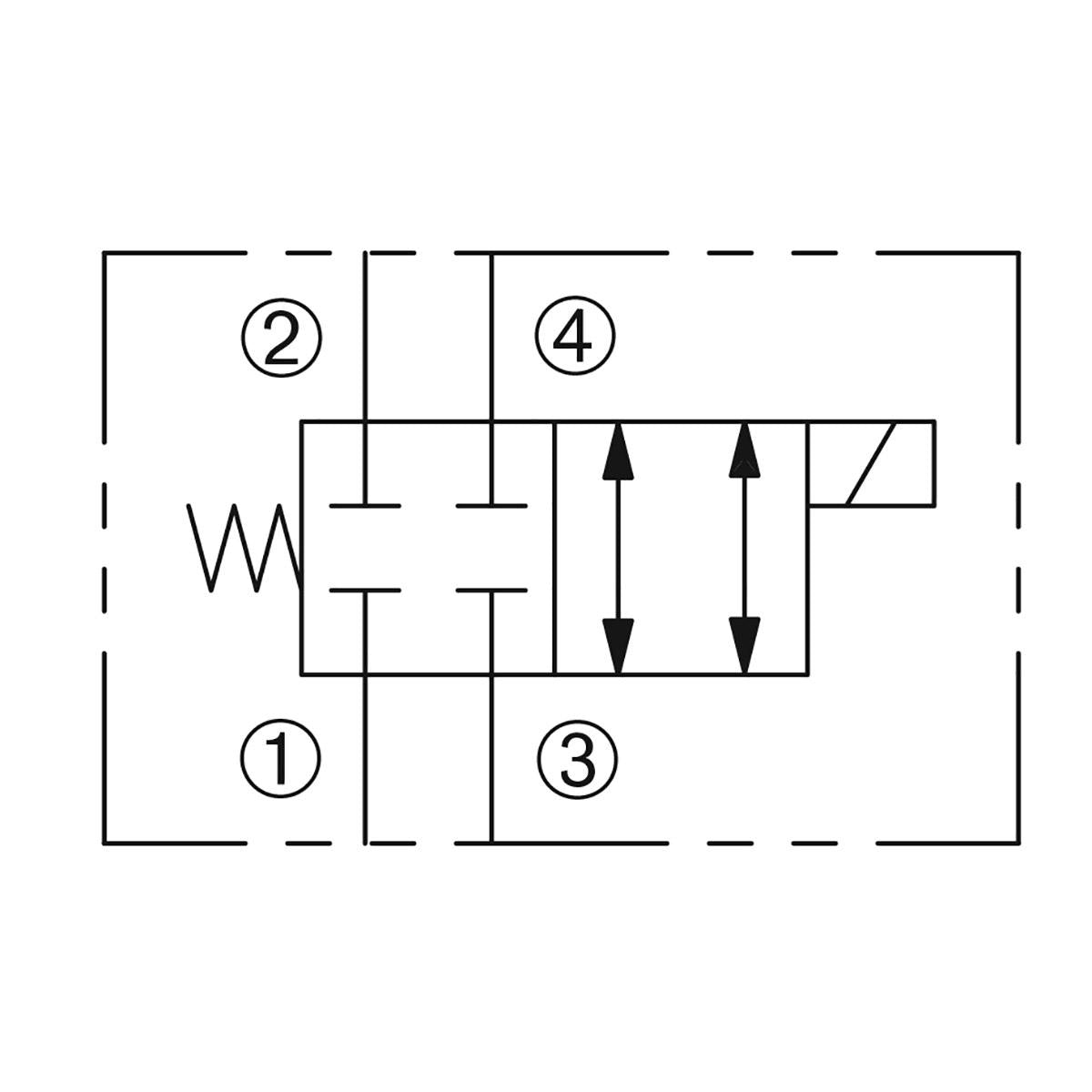

The Deltrol Fluid Products DSV2-100-4NC Solenoid Directional Four-Way, Two-Position, Normally-Closed Spool Cartridge Valve is engineered for controlling hydraulic flow in systems requiring precise management of double-acting cylinders or motors. In its default state, all ports are closed, blocking fluid flow. When activated, the valve shifts to allow flow between ports 3 to 4 and 2 to 1. It includes a manual override feature for manual operation when needed. Designed for high-pressure applications up to 3000 psi with a flow capacity of 6 gpm, this valve offers robust construction, supporting various coil voltages and a wide temperature range, ensuring reliable performance in demanding environments.
